LUBRICATION
Tests and Adjustments
8-6 BY Service Manual
© 2009 Yanmar Marine International
TESTS AND ADJUSTMENTS
Engine Oil Flow

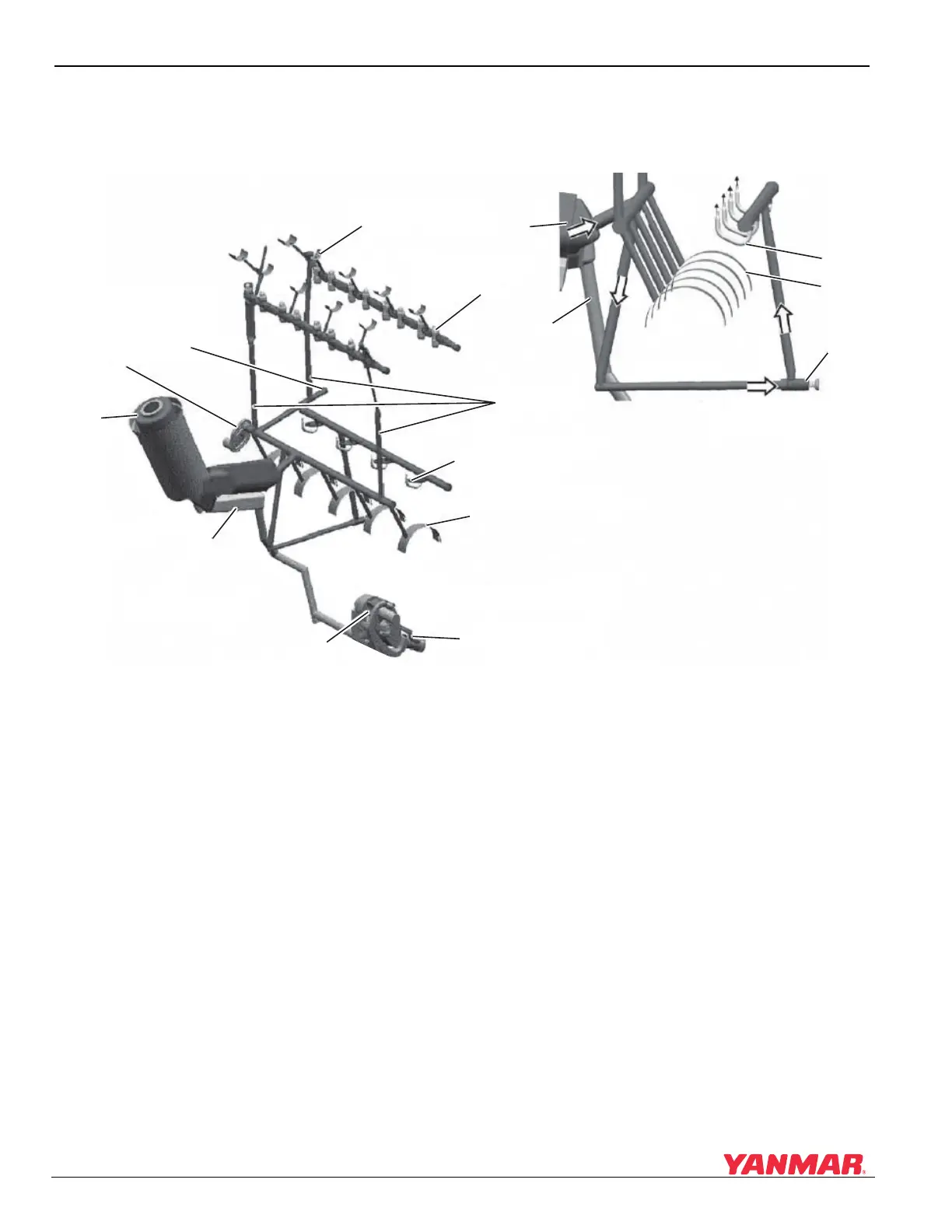

Figure 8-1
Figure 8-1
1 – Camshaft Bearings
2 – Hydraulic Valve Adjuster
3 – Oil Galleys
4 – Piston Cooling Jet
5 – Crankshaft Bearings
6 – Oil Galley for Pressure Regulator Valve
7 – Oil Pump
8 – Oil Return
9 – Oil Filter
10 – Timing Chain Lubrication Nozzle
11 – Port to Turbocharger Lubrication Line and
Oil Pressure Sensor Line
12 – Piston Cooling Oil Pressure Regulator
0003789
(1)
(2)
(3)
(9)
(4)
(5)
(12)
(6)
(5)
(4)
(3)
(8)
(7)
(9)
(10)
(11)
