Yanmar 6BY2 - 6 BY2 (Inboard)

GENERAL SERVICE INFORMATION

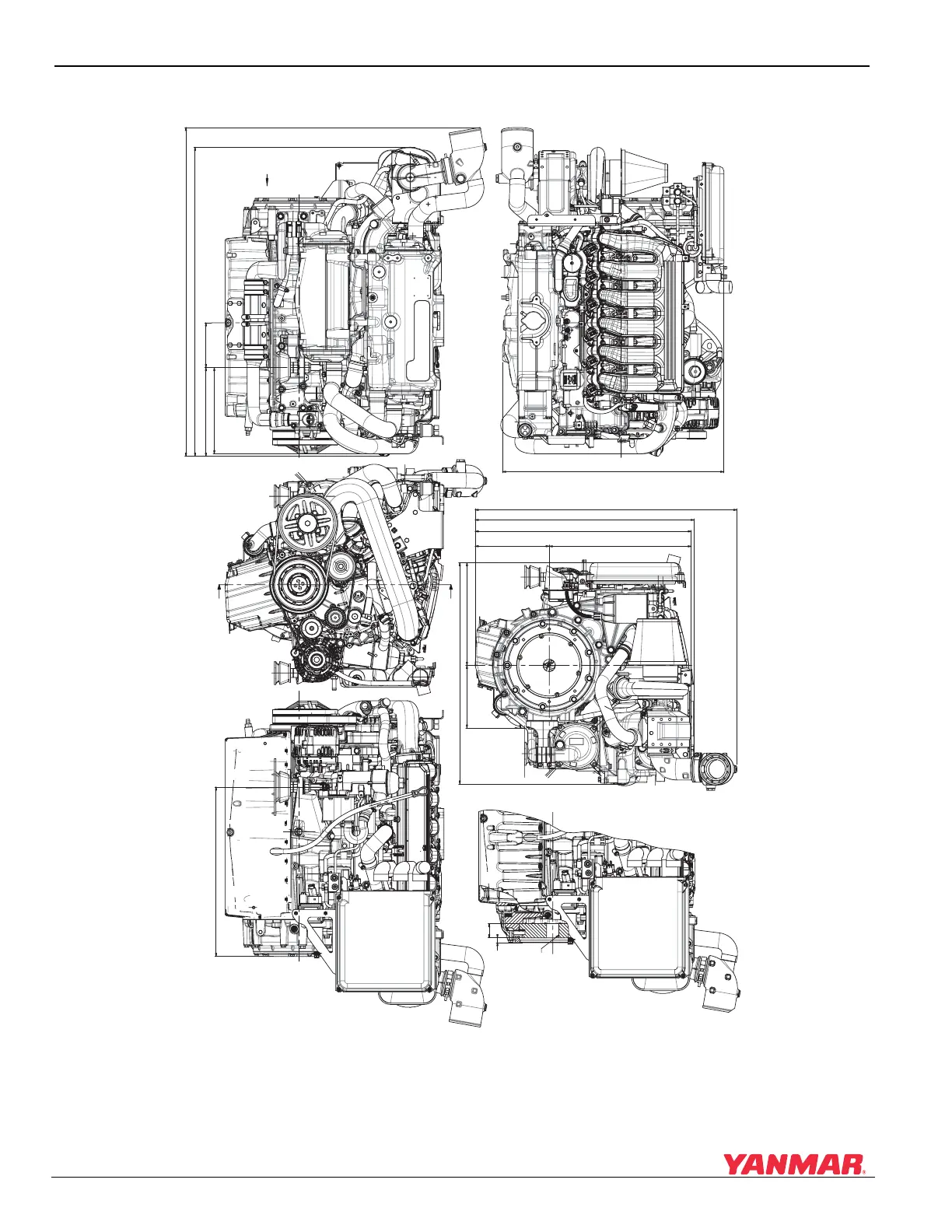

Engine Outline Drawings
3-6 BY Service Manual
© 2009 Yanmar Marine International
6BY2 (Inboard)
Figure 3-3
Figure 3-3
A
A
Ansicht S VIEW
(C16)
SAE 20/40-26
Schnitt A-A
SECTION A-A (G6)
S
0006541
847.45 (33.36)
716 (28.19)
709 (27.91)
700 (27.56)
460 (18.11)
240 (9.45)
716.48 (28.21)
332 (13.07)
203 (7.99)
46
(1.81)
548.5 (21.59)
279 (10.98)
145 (5.71)
1001 (39.41)
1064 (41.89)
287 (11.3)
15.5 (.61)
