Hardware

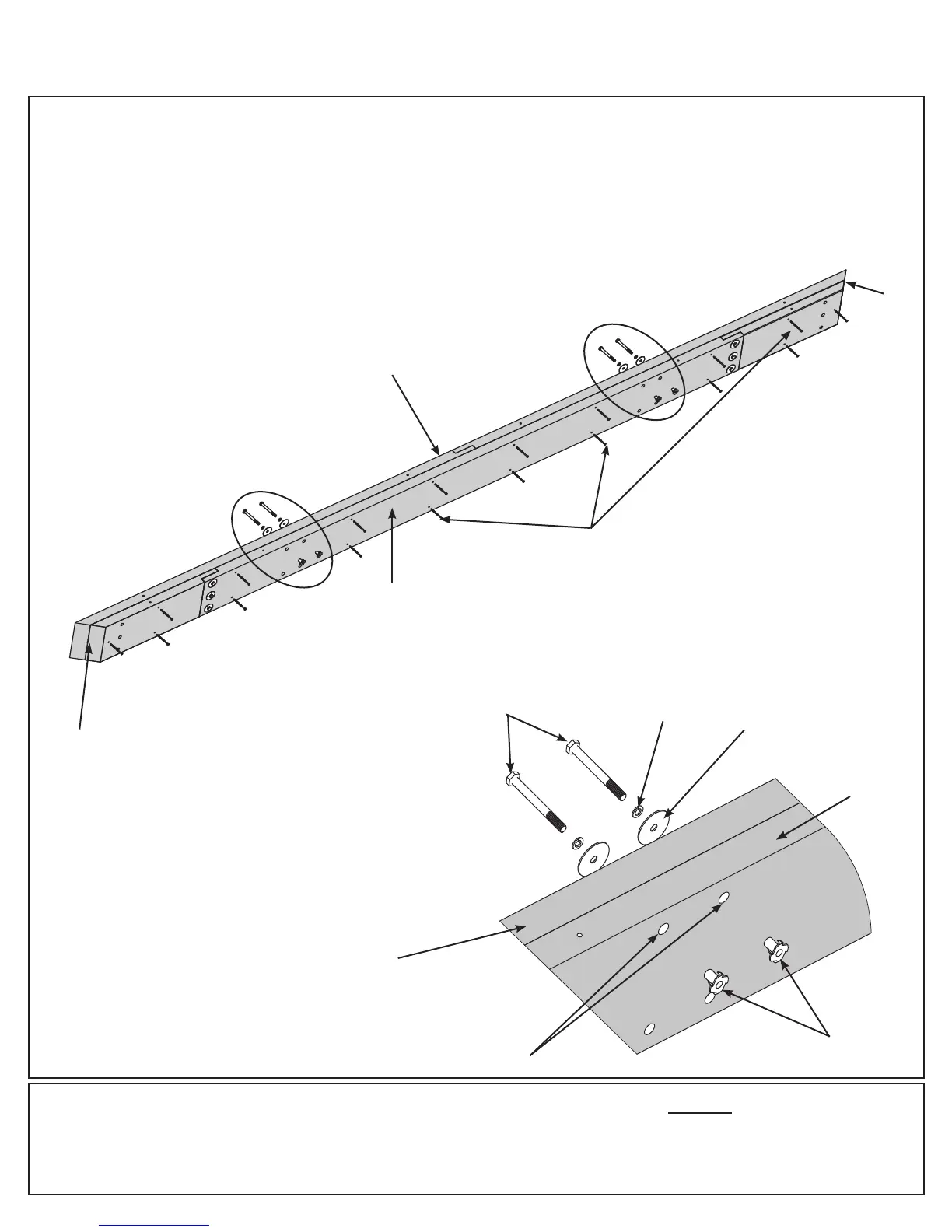

Fig. 3.4
End Short
Beam
Assembly
Fig. 3.5
Flush
Short Beam L-R
Assembly
D: Place one Short Beam L-R Assembly and one End Short Beam Assembly together so the beam assembly
ends are ush and the angled ends match. Bolt heads must be on the outside of both beam assemblies. Match
the bolt holes in each assembly then loosely attach with four 5/16 x 3” Hex Bolts (with 5/16” lock washer, 1/4-
5/16” large washer and 5/16” t-nut) in the top holes. (g. 3.4 and 3.5)
E: Secure assemblies with 18 #8 x 2-1/2” Wood Screws then tighten bolts. (g. 3.4)
F: Repeat Step D and E one more time to make two Short Beam Assemblies.
End Short
Beam
Assembly
Short Beam
L-R Assembly
#8 x 2-1/2” Wood
Screws (x 18 per
assembly)
Step 3: Short Beam Assembly
Part 2
36 x #8 x 2-1/2” Wood Screw
8 x 5/16 x 3” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
5/16”
T-nut
1/4-5/16”
Large Washer
5/16 x 3”
Hex Bolt
5/16” Lock
Washer
Use the
top holes
Flush
