Hardware

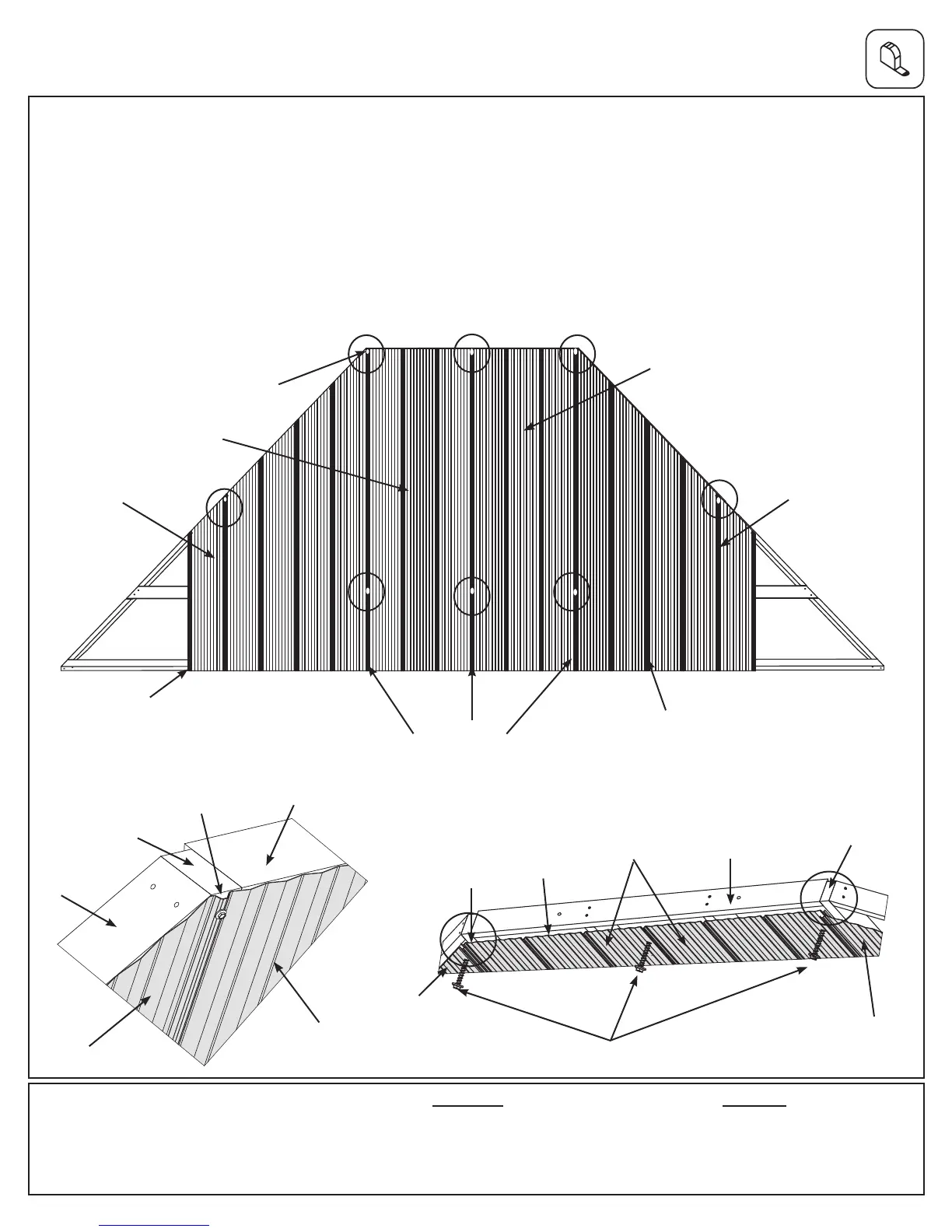

Step 14: Attach Roof Panels - Large Roof Assemblies
Part 1
A: Turn over Large Roof Assemblies. Place two Middle Panels ush to the top of (635) Long Roof Top. On each
side of the Middle Panels place one Long Panel Left and one Long Panel Right. There will be an overhang at the
bottom over Large Fascia Assemby but no overhang at the Corner Rafters. The panels overlap and screw holes
line up as shown in g. 14.1, 14.2 and 14.3.
B: Make sure overlap seam of Middle Panels and Long Panel Left and Right are centred on each (634) Rafter.
Attach with eight #8 x 1” Roong Screw per Large Roof Assembly. (g. 14.1and 14.3)
16 x #8 x 1” Roong Screw
Roof Parts
4 x Middle Panel
2 x Long Panel Left
2 x Long Panel Right
#8 x 1” Roong
Screws
DO NOT overtighten
screws, could cause
damage to roong
material
Will have a
slight overhang
Fig. 14.3
No screws along
bottom row
IMPORTANT!: Before starting this step, be sure to refer back to pages
32 & 33 regarding correct installation and handling of the roong.
Panels overlap
and are centred
on (634) Rafter
Long Panel Left
Fig. 14.2
Long
Panel
Right
(635) Long
Roof Top
Rafter
Corner
(634)
Rafter
Fig. 14.1
Flush
Note: Top holes of Middle
Panel are 1” (25.4 mm)
from the top edge.
Middle
Panel
Panels overlap
at the seams
Middle
Panel
Middle
Panel
Top View
Bottom
Top
Long Panel Left
Long Panel
Left
(634)
Rafter
(634)
Rafter
Long
Panel
Right
Top View
(635) Long
Roof Top
Note: Bottom holes of
Middle Panel are 1-1/2”
(38.1 mm) from the
bottom edge.
Middle
Panel
