45 support@yardistrystructures.com

Step 13: Attach Roof to Beam Brackets - Large Roof Assembly

Hardware

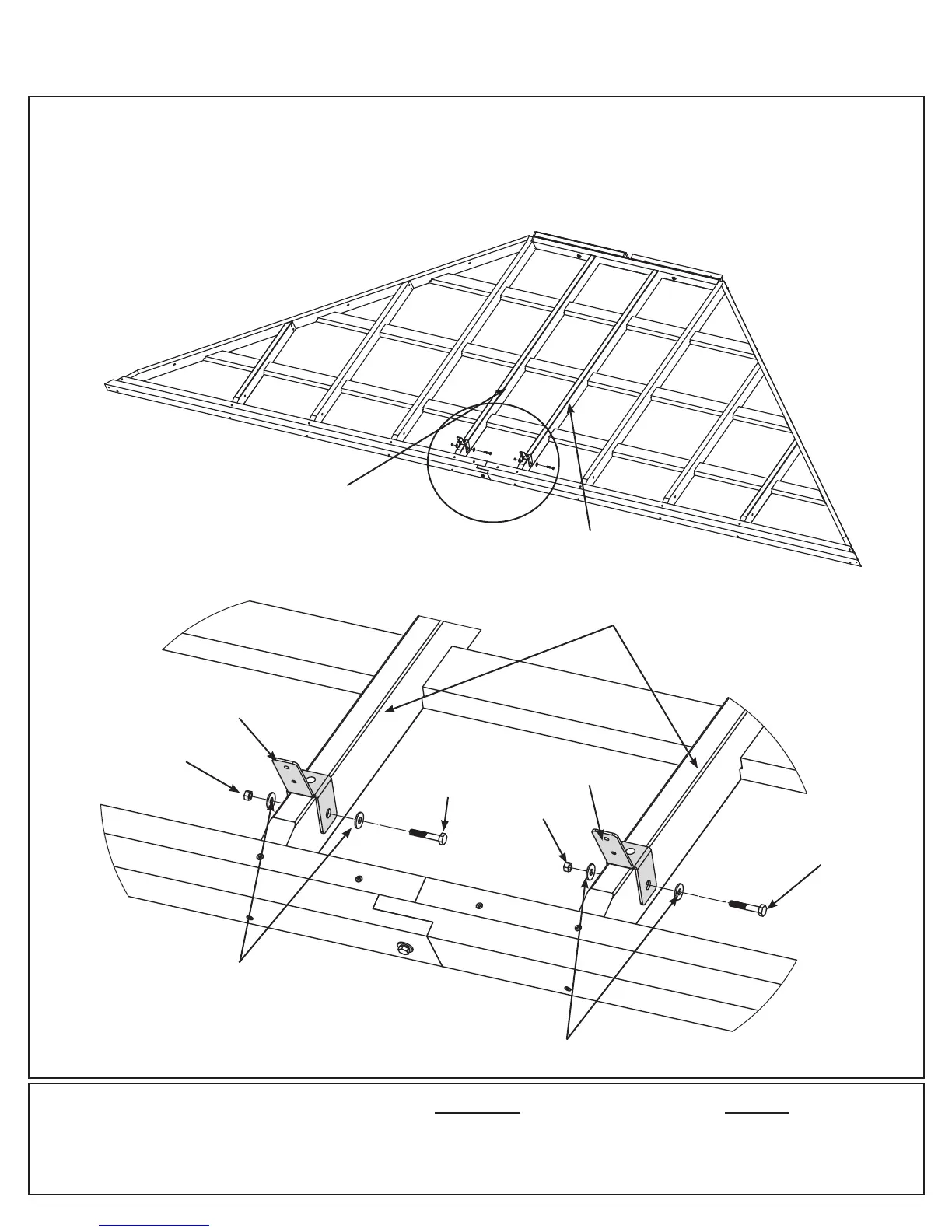

Fig. 13.1

Back View

4 x 1/4 x 2” Hex Bolt

(1/4-5/16” large washer x 2, 1/4” lock nut)

1/4” Lock

Nut

1/4-5/16”

Large Washer

1/4 x 2”

Hex Bolt

Fig. 13.2

Roof to Beam

Bracket

(633) Centre Rafter

Top

Bottom

A: On the back of each Large Roof Assembly, through the bolt hole at the bottom of the board, loosely attach one

Roof to Beam Bracket to each (633) Centre Rafter with one 1/4 x 2” Hex Bolt (with two 1/4-5/16” large washers

and one 1/4” lock nut) per bracket. (g. 13.1 and 13.2)

Components

4 x Roof to Beam Bracket

(633) Centre

Rafter
