Step 16: Attach Ridge Clips - Large Roof Assemblies
Hardware

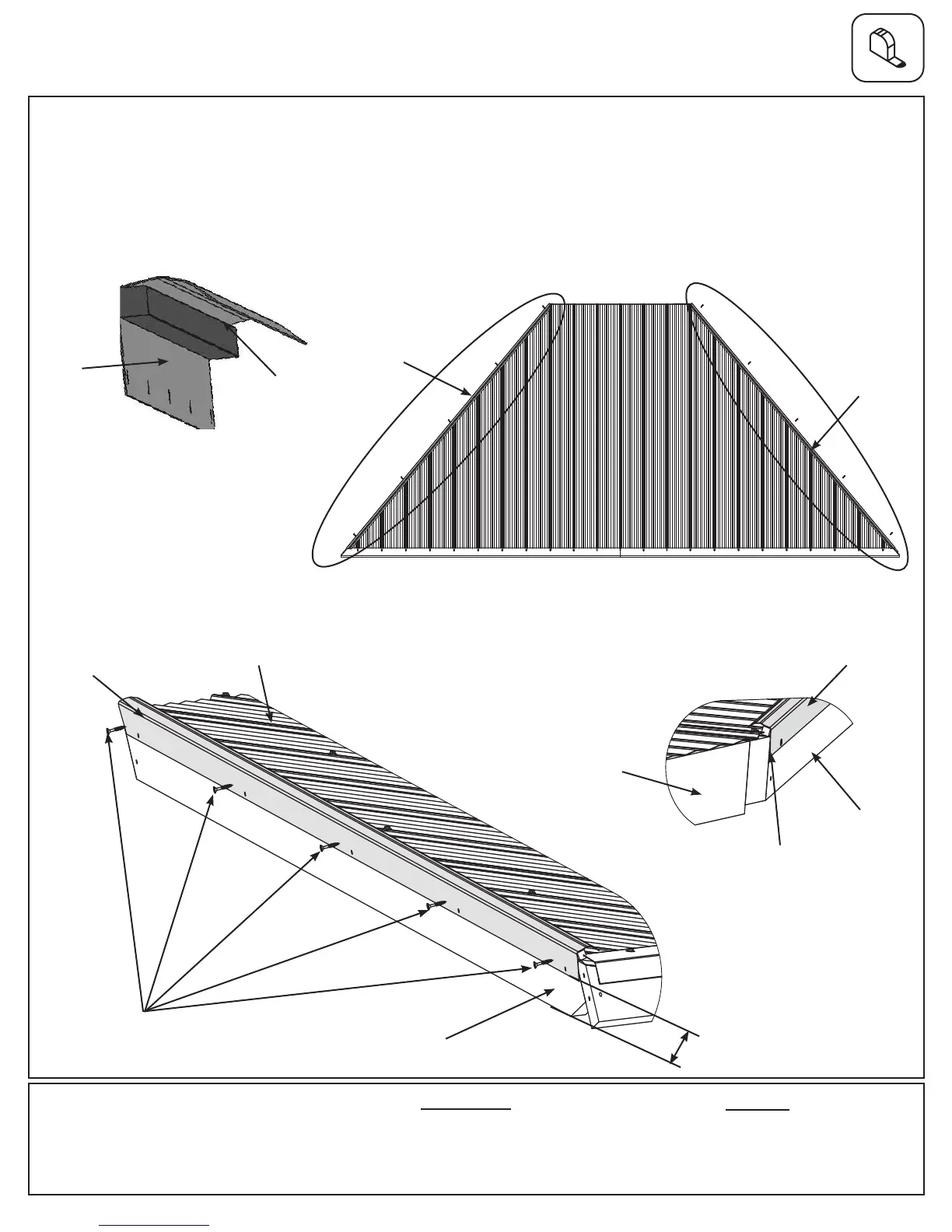

Fig. 16.1
20 x #7 x 3/4” Wood Screw
A: Place one Weather Seal on the inside of four Ridge Clip 102.5 then place one Ridge Clip 102.5 on each side
of each Large Roof Assembly so they cover the panels and are ush to the tops of (623) Rafter Corner Right and
(624) Rafter Corner Left. The bottom edge of each Ridge Clip 102.5 should be 2-1/2” (63.5 mm) up from the
bottom edge of (623) Rafter Corner Right and (624) Rafter Corner Left. Attach with ve #7 x 3/4” Wood Screws
per Ridge Clip 102.5. (g. 16.1, 16.2, 16.3 and 16.4)
Panels
Components:
4 x Ridge Clip 102.5
4 x Weather Seal
Fig. 16.4
Top
Fig. 16.3
Top View
2-1/2”
(63.5 mm)
Rafter
Corner
#7 x 3/4” Wood
Screws (x 5 per side)
Flush
Ridge Clip
102.5
Ridge
Clip
102.5
Weather
Seal
Fig. 16.2
Underneath,
Side View
Ridge Clip
102.5
Ridge Clip
102.5
Rafter
Corner
Ridge
Clip
102.5
(635) Long
Roof Top
