Make sure Soffit is centred
to the Rafter at this end.
#8 x1½ Wood Screw x8
Soffit x2
Y50000-648

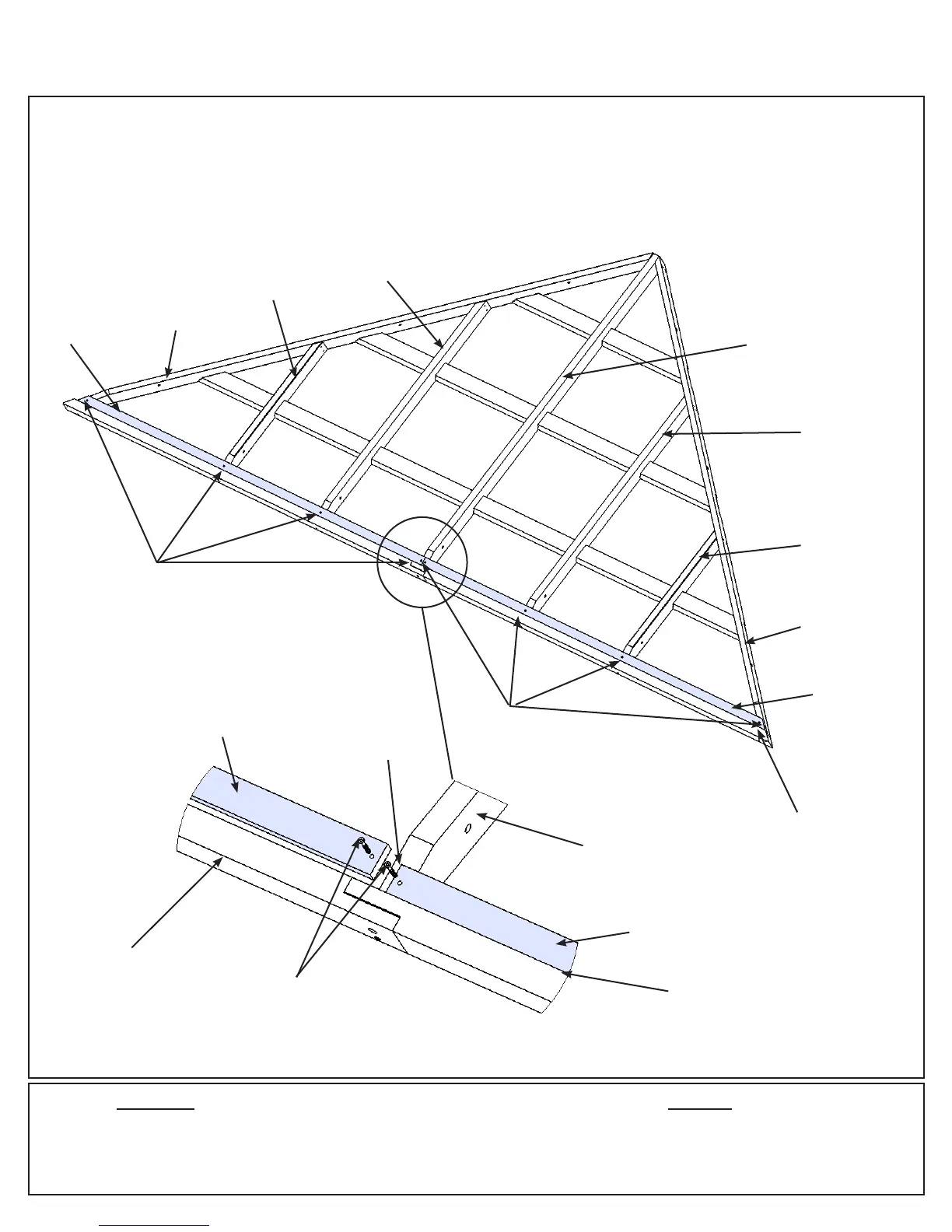

A: Turn over each Small Roof Assembly then place two (648) So󰀩ts tight together at centre of (634) Rafter and
tight to the top of Fascia Beam Assembly. Attach (648) So󰀩ts to (634) Rafter, (623) Rafter Corner Right, (624)
Rafter Corner Left, (629) Rafter Short RT, (630) Rafter Short LT, (632) Rafter Centre RT and (631) Rafter Centre
LT with four #8 x 1” Pan Screws per so󰀩t. (g. 8.1 and 8.2)
Step 8: Attach So󰀩ts - Small Roof Assembly
HardwareWood Parts
Fig. 8.1
16 x #8 x 1” Pan Screw4 x (648) So󰀩t
Fig. 8.2
(648) So󰀩t
(624) Rafter
Corner Left
(623) Rafter
Corner Right
(629) Rafter
Short RT
(632) Rafter
Centre RT
(630) Rafter
Short LT
(631) Rafter
Centre LT
Fascia Beam
Assembly
(634)
Rafter
(634)
Rafter
(648) So󰀩t
(648) So󰀩t
(648) So󰀩t
Fascia Beam
Assembly
Tight
Centre
#8 x 1” Pan
Screws
Back View
#8 x 1” Pan
Screws
#8 x 1” Pan
Screws
