Parts removed
for clarity
A: Attach one Tie Wrap Bracket tight
to each end of four (646) Ties with one
#10 x 1-1/4” Pan Screw per bracket
using the inside holes. (g. 25.2 and
25.3)
B: With a helper place one (646)
Tie with brackets against each (633)
Centre Rafter and each (634) Rafter on
Large Roof Assemblies so (646) Tie is
tight to the rafters and are level. Attach
Tie Wrap Bracket to Rafters with two
#10 x 1-1/4” Pan Screws on both sides
of each bracket. (g. 25.1, 25.2 and
25.3)
C: Pre-drill with a 1/8” drill bit and
secure Tie Wrap Brackets to (646) Ties
and Rafters with one #10 x 2-1/2” Pan
Screw per bracket. (g. 25.1, 25.2
and 25.3)
Components:
8 x Tie Wrap Bracket
Wood Parts
4 x (646) Tie
Hardware
40 x #10 x 1-1/4” Pan Screw
8 x #10 x 2-1/2” Pan Screw
Fig. 25.1
#10 x 1-1/4”
Pan Screw
#10 x 2-1/2” Pan Screw
(pre-drill before installing)
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
(646) Tie
Rafter
Tie Wrap
Bracket

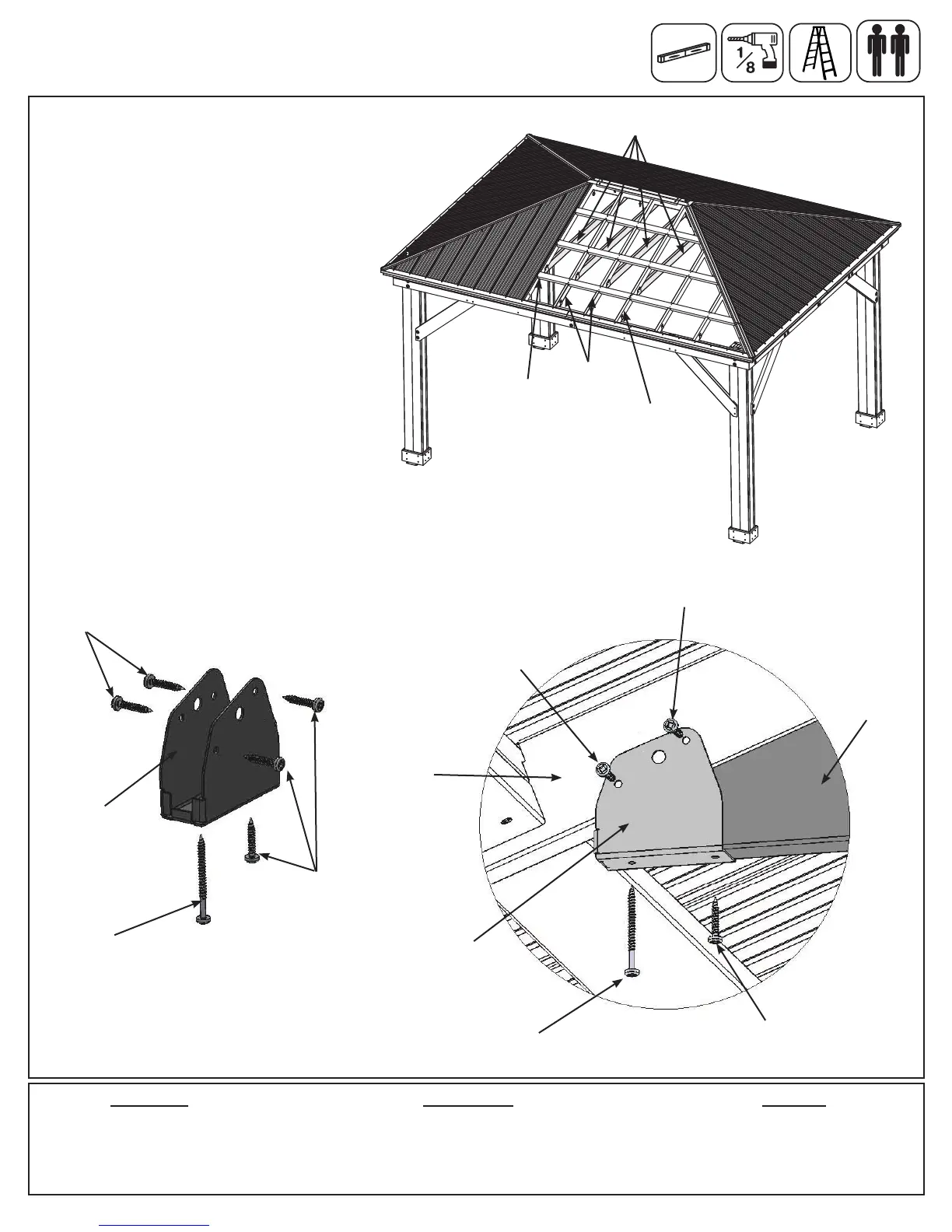

Step 25: Attach Tie Wrap Brackets and Ties
Fig. 25.2
Fig. 25.3
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
Tie Wrap
Bracket
#10 x 2-1/2”
Pan Screw
(646) Tie
(633)
Centre
Rafter
(634)
Rafter
(634)
Rafter
