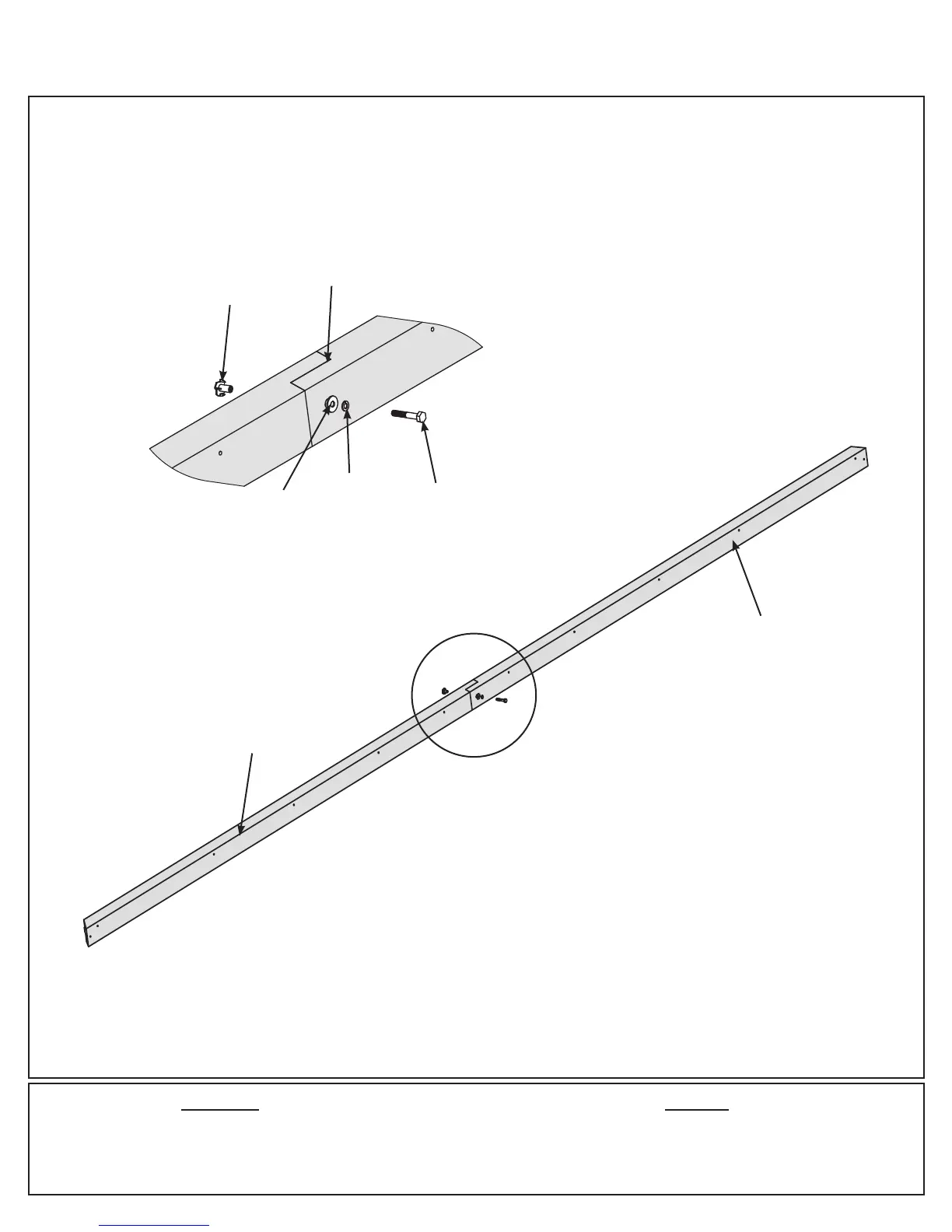

A: Tightly connect one (625) Fascia LT Long and one (626) Fascia RT Long using one 5/16 x 1-1/2” Hex Bolt
(with 5/16” lock washer, 1/4-5/16” large washer and 5/16” t-nut) as shown in g. 11.1 and 11.2. Repeat to make a
second Large Fascia Beam Assembly.
Step 11: Fascia Beam Assembly - Large Roof Assembly
Fig. 11.1
Fig. 11.2
HardwareWood Parts
2 x (625) Fascia LT Long
2 x (626) Fascia RT Long
2 x 5/16 x 1-1/2” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
(626) Fascia
RT Long
(625) Fascia
LT Long
5/16”
T-nut
5/16 x 1-1/2”
Hex Bolt
Tight
5/16” Lock
Washer
1/4-5/16”
Large Washer
