Hardware
Step 9: Attach Roof Panels - Small Roof Assembly
Part 1
A: Place one Long Panel Left on the front of one Small Roof Assembly so it is ush to the side of (624) Rafter
Corner Left and a slight overhang at the bottom of the Fascia Beam Assembly. Centre holes should line up with
(634) Rafter. (g. 9.1 and 9.2)
B: Place one Long Panel Right on Small Roof Assembly so it overlaps the Long Panel Left and it is ush to the
side of (623) Rafter Corner Right and a slight overhang at the bottom of the Fascia Beam Assembly. (g. 9.1 and
9.2)
C: Attach both Left and Right Long Panels to Small Roof Assembly with four #8 x 1” Roong Screws in locations
shown in g. 9.1 and 9.2. Be sure not to overtighten screws.
D: Repeat Steps A - C for both Small Roof Assemblies.

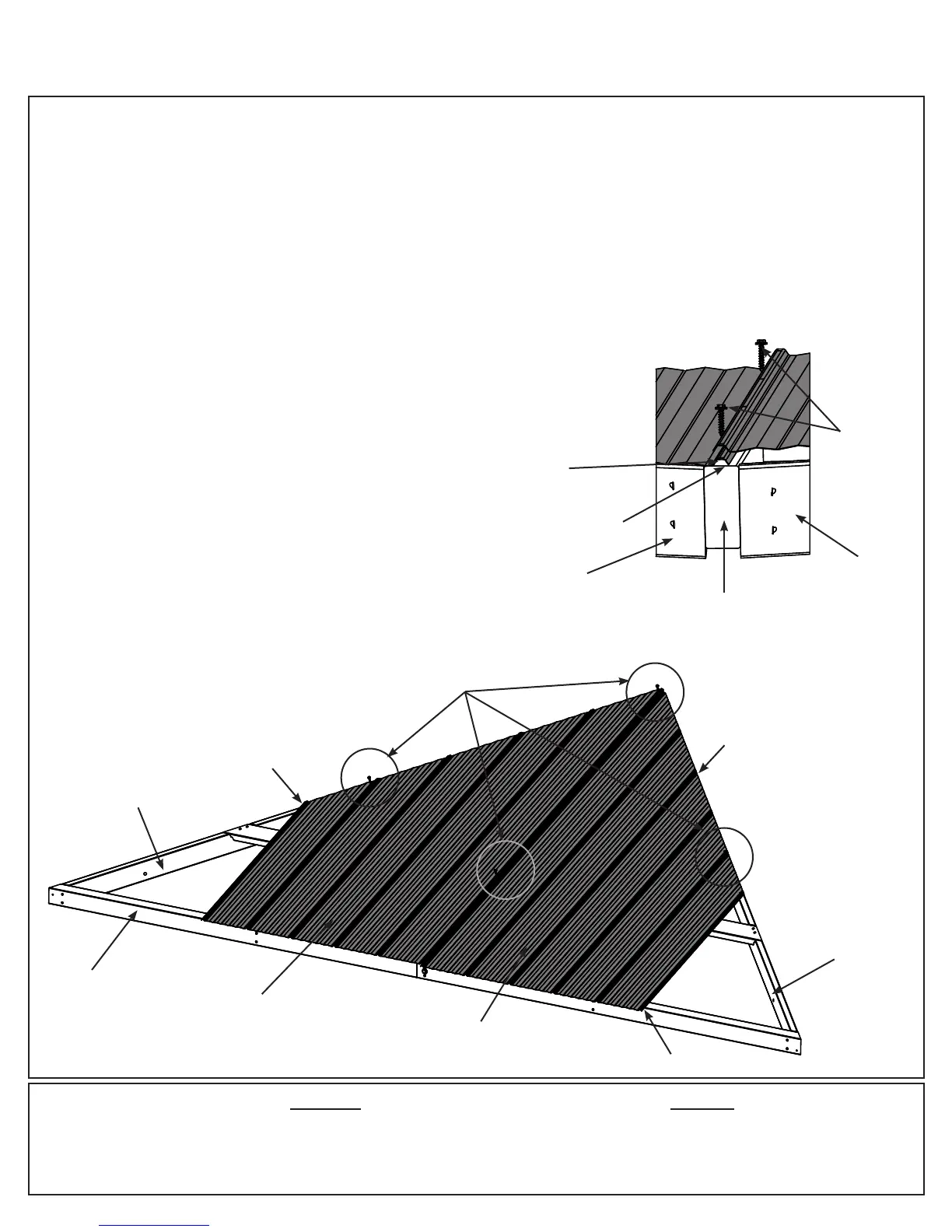

Fig. 9.2
8 x #8 x 1” Roong Screw
Roof Parts
2 x Long Panel Left
2 x Long Panel Right
Front View
Fascia Beam
Assembly
(624) Rafter
Corner Left
(623) Rafter
Corner Right
Top, Side View
Panels
overlap at
the seams
#8 x 1” Roong
Screws
Long Panel
Left
DO NOT overtighten
screws, could cause
damage to roong
material
Flush
Flush
Slight overhang
Lower 3 screws
may have to be
removed in next
step to properly
place Left and Right
Short Panels
Fig. 9.1
Long Panel
Right
(624) Rafter
Corner Left
(623) Rafter
Corner Right
Flush
(634) Rafter
#8 x 1”
Roong
Screws
