Yardistry YM12944 User Manual

8 support@yardistrystructures.com
2pc. (653) Inside Long Beam FSC 38.1 x 177.8 x 2667mm (1½ x 7 x 105")
Y70229-653

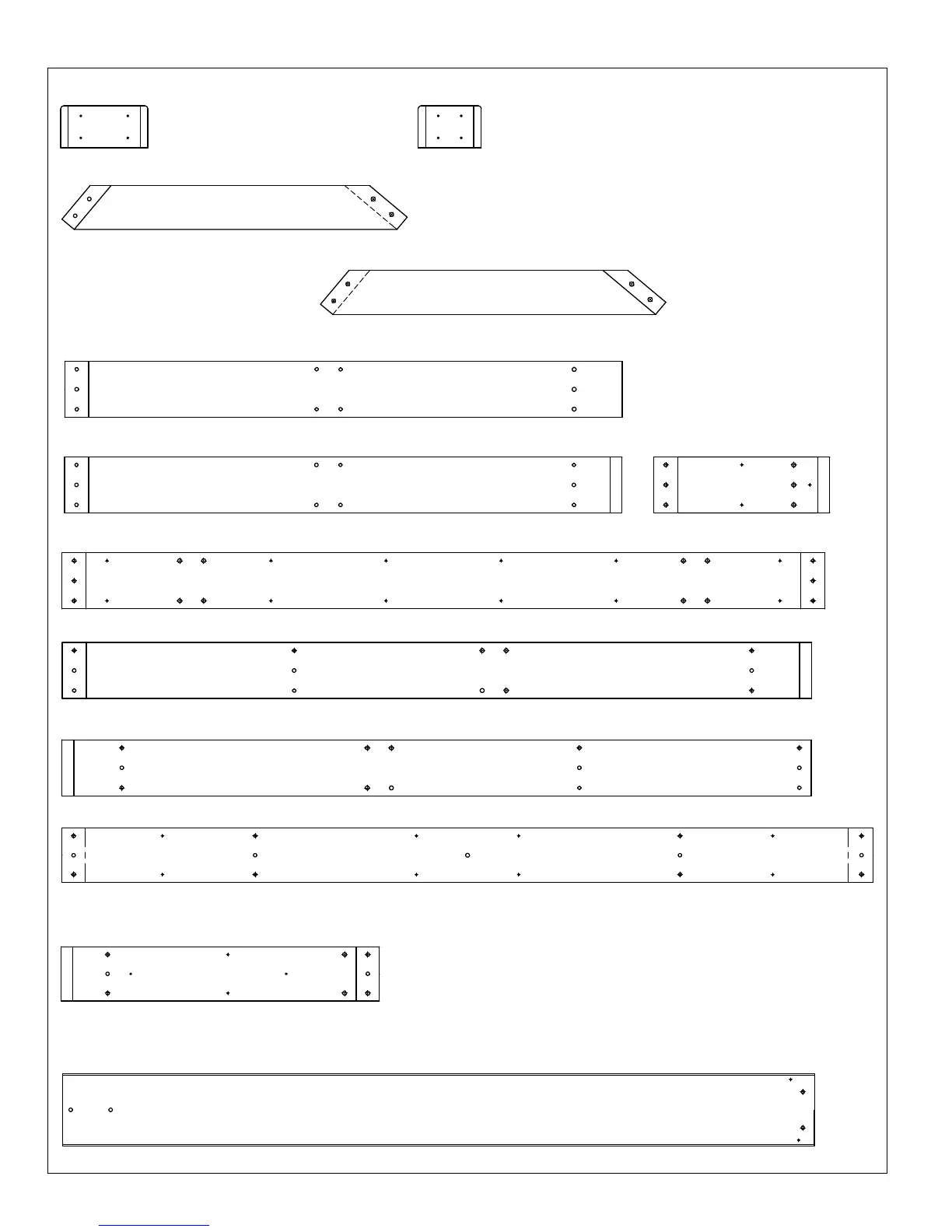

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
Y50229-460
Y70229-656
4pc. (656) Inside Beam FSC 38.1 x 177.8 x 1046.2mm (1½ x 7 x 41-3/16")
2pc. (649) Outer End Right FSC 38.1 x 177.8 x 2379.7mm (1½ x 7 x 93-11/16")
Y70229-649
2pc. (650) Outer End Left FSC 38.1 x 177.8 x 2379.7mm (1½ x 7 x 93-11/16")
Y70229-650
23.8 x 133.4 x 200mm (15/16 x 5¼ x 7-7/8")
8pc. (459) Plinth FSC
Y50229-459
8pc. (460) Plinth Long FSC
23.8 x 133.4 x 276.2mm (15/16 x 5¼ x 10-7/8")
Y70229-664
2pc. (664) Centre Beam Short FSC 38.1 x 177.8 x 2422.1mm (1½ x 7 x 95-3/8")
Y50229-786
4pc. (786) Straight Gusset Right FSC 38.1 x 139.7 x 1096.2mm (1½ x 5½ x 43-3/16")
Y70229-621
4pc. (621) 6 x 9 Post FSC 152.4 x 228.6 x 2387.6mm (6 x 9 x 94")
Y70229-665
4pc. (665) End Short Beam FSC
38.1 x 177.8 x 558.6mm (1½ x 7 x 22")
4pc. (787) Straight Gusset Left FSC 38.1 x 139.7 x 1096.2mm (1½ x 5½ x 43-3/16")
Y50229-787
NOTE: Parts have been
packed inside (621) 6 x 9
Post. Check for parts
inside the Post.
2pc. (661) Right Beam Short FSC 38.1 x 177.8 x 1769.7mm (1½ x 7 x 69-5/8")
Y70229-661
2pc. (660) Left Beam Short FSC 38.1 x 177.8 x 1769.7mm (1½ x 7 x 69-5/8")
Y70229-660
