9 support@yardistrystructures.com
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.

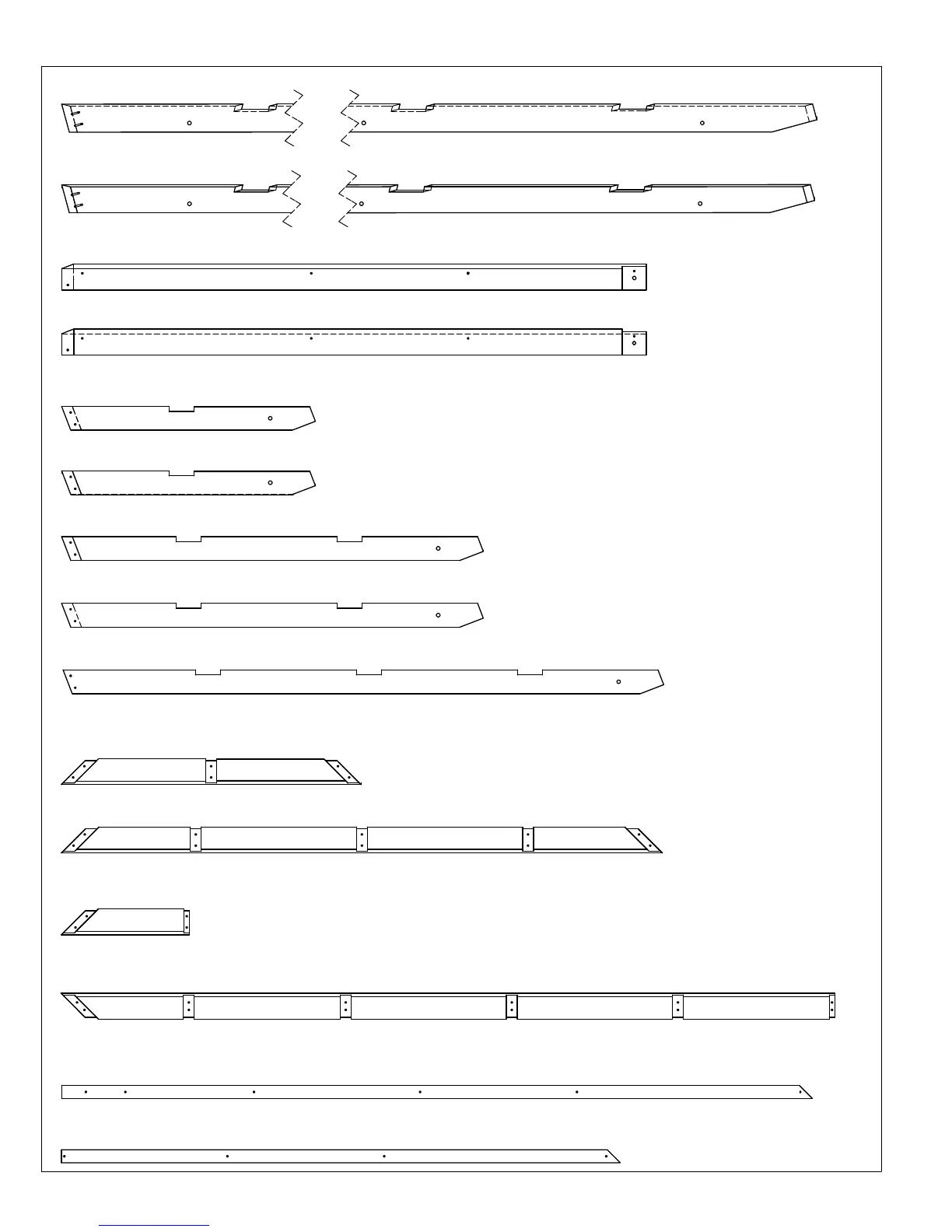

Part Identification ( )
Y50229-624
4pc. (624) Rafter Corner Left FSC 25.4 x 88.9 x 2597.8mm (1 x 3½ x 102¼")
6pc. (634) Rafter FSC 31.8 x 76.2 x 1907mm (1¼ x 3 x 75-1/16")
Y50229-634
Y50229-623
4pc. (623) Rafter Corner Right FSC 25.4 x 88.9 x 2597.8mm (1 x 3½ x 102¼")
4pc. (630) Rafter Short LT FSC 31.8 x 76.2 x 805.5mm (1¼ x 3 x 31-3/4")
Y50229-630
2pc. (627) Fascia Left Short FSC 38.1 x 82.6 x 1855.5mm (1½ x 3¼ x 73-1/16")
Y50229-627
2pc. (628) Fascia Right Short FSC 38.1 x 82.6 x 1855.5mm (1½ x 3¼ x 73-1/16")
Y50229-628
Y50229-629
4pc. (629) Rafter Short RT FSC 31.8 x 76.2 x 805.5mm (1¼ x 3 x 31-3/4")
Y50229-647
4pc. (647) Soffit Long FSC 15.9 x 41.3 x 2383mm (5/8 x 1-5/8 x 93-13/16")
4pc. (632) Rafter Centre RT FSC 31.8 x 76.2 x 1338.9mm (1¼ x 3 x 52-3/4")
Y50229-632
2pc. (637) Mid Strap FSC 31.8 x 76.2 x 1908.3mm (1¼ x 3 x 75-1/8")
Y50229-637
4pc. (631) Rafter Centre LT FSC 31.8 x 76.2 x 1338.9mm (1¼ x 3 x 52-3/4")
Y50229-631
Y50229-636
2pc. (636) Top Strap FSC 31.8 x 76.2 x 953.8mm (1¼ x 3¼ x 37-35/64")
Y50229-687
2pc. (687) Bottom Strap LT FSC 31.8 x 76.2 x 2457mm (1¼ x 3 x 96-3/4")
2pc. (688) Bottom Strap RT FSC 31.8 x 76.2 x 406.3mm (1¼ x 3 x 16")
Y50229-688
4pc. (648) Soffit FSC 15.9 x 41.3 x 1774.5mm (5/8 x 1-5/8 x 69-7/8")
Y50229-648
