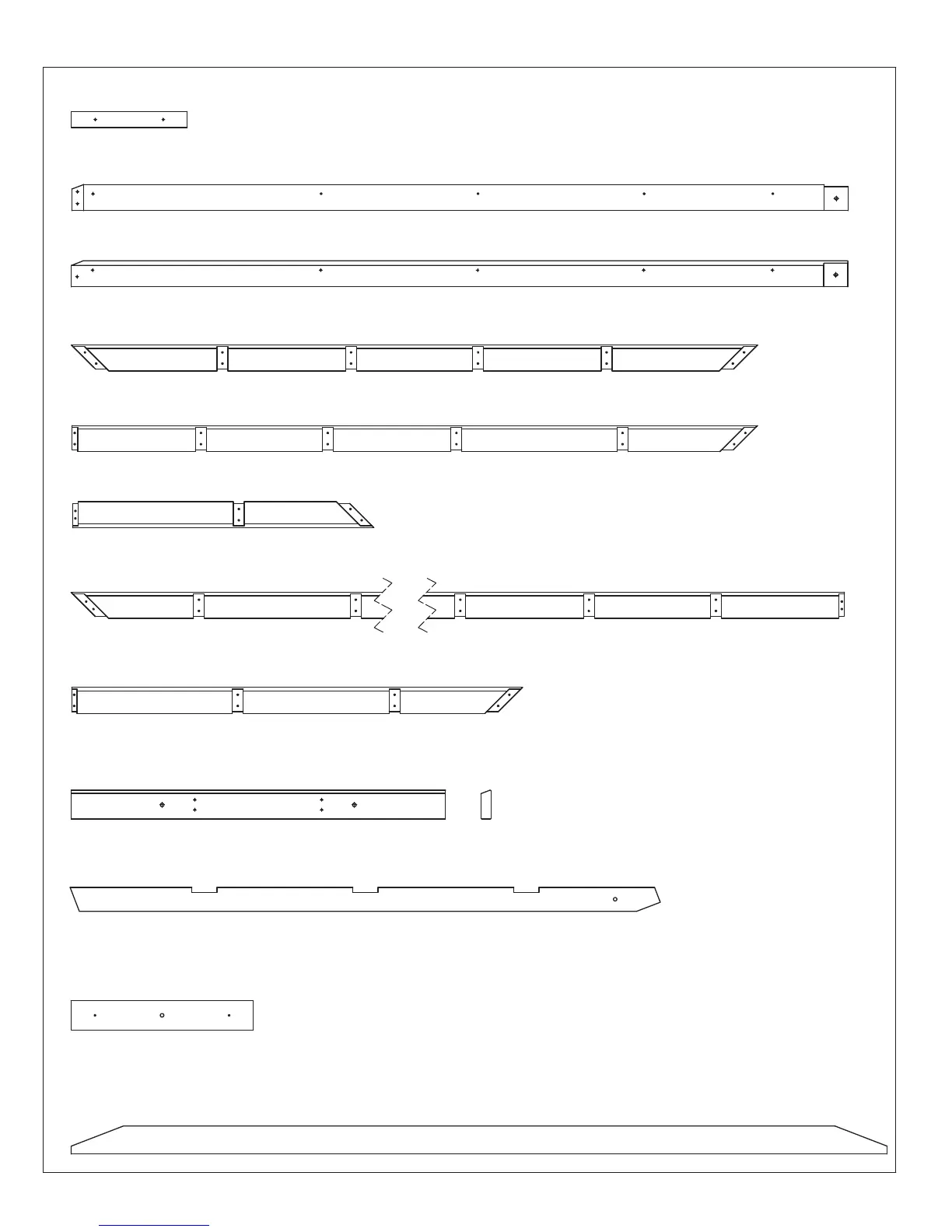

Part Identification ( )
Dimensions are approximate and are shown to assist in the identification of parts for
assembly. Actual dimensions may be smaller or larger.
4pc. (633) Centre Rafter FSC 31.8 x 76.2 x 1873.6mm (1¼ x 3 x 73-3/4")
Y50229-633
Y50229-635
2pc. (635) Long Roof Top FSC 31.8 x 93.8 x 1188.2mm (1¼ x 3-11/16 x 46-3/4")
Y50229-640
2pc. (640) Strap Top Lg FSC 31.8 x 76.2 x 2179mm (1¼ x 3 x 85-13/16")
Y50229-645
2pc. (645) Spacer FSC 31.8 x 93.8 x 578.2mm (1¼ x 3-11/16 x 22-3/4")
Y50229-646
4pc. (646) Tie FSC 31.8 x 88.9 x 2590.8mm (1¼ x 3½ x 102")
2pc. (641) Strap Mid LT FSC 31.8 x 76.2 x 955.9mm (1¼ x 3 x 37-5/8")
Y50229-641
Y50229-643
2pc. (643) Strap Bot LT FSC 31.8 x 76.2 x 2651.4mm (1¼ x 3 x 104-3/8")
Y50229-642
2pc. (642) Strap Mid RT FSC 31.8 x 76.2 x 2175.8mm (1¼ x 3 x 85-5/8")
Y50229-644
2pc. (644) Strap Bot RT FSC 31.8 x 76.2 x 1431.5mm (1¼ x 3 x 56-3/8")
2pc. (626) Fascia RT Long FSC 38.1 x 82.6 x 2465.5mm (1½ x 3¼ x 97-1/16")
Y50229-626
2pc. (625) Fascia LT Long FSC 38.1 x 82.6 x 2465.5mm (1½ x 3¼ x 97-1/16")
Y50229-625
Y50229-639
2pc. (639) Fascia Block FSC 38.1 x 50.8 x 368mm (1½ x 2 x 14½")
NOTE: Parts have been
packed inside (621) 6 x 9
Post. Check for parts
inside the Post.
