A: With all ve assemblers lift Large Roof Assembly with (645) Spacers up so it is centred on the Long Beam
Assembly. With an assembler holding the rst Large Roof Assembly in place lift the second Large Roof Assembly
on the opposite Long Beam Assembly. Loosely attach Large Roof Assemblies at the top with two 1/4 x 4-1/4” Hex
Bolts (with two 1/4-5/16” large washers and one 1/4” lock nut). The bottom of the Rafter Corners should be aligned
with the mitre of the Beam Assemblies (g. 18.1, 18.2 and 18.3)

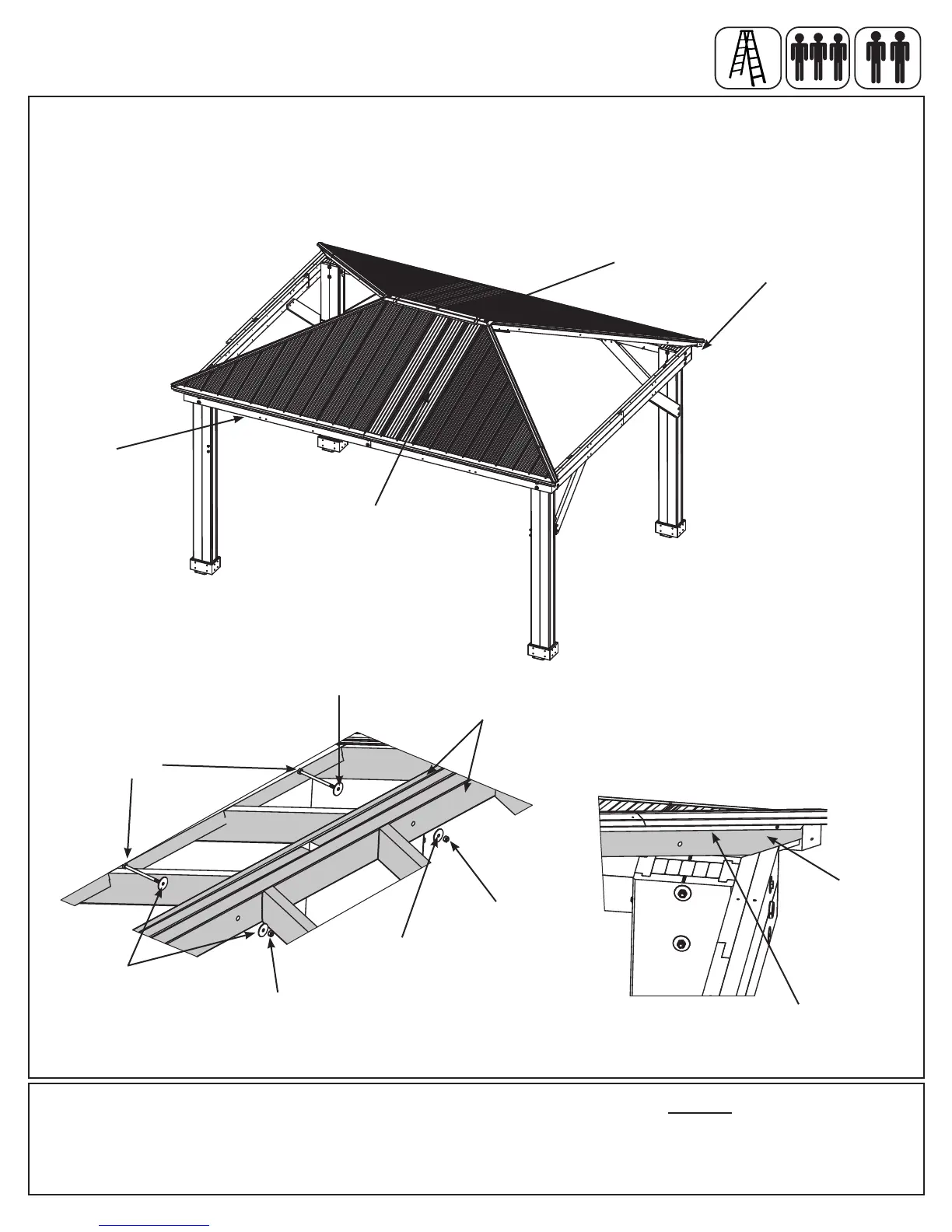

Step 18: Attach Large Roof Assemblies to Frame
Part 1
Fig. 18.1
Long Beam
Assembly
Large Roof
Assembly
One assembler to
support roof panel(s) at
all times until secure
Long Beam
Assembly
Hardware
2 x 1/4 x 4-1/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
1/4” Lock Nut
Parts removed
for clarity
Fig. 18.2
Large Roof
Assembly
1/4 x 4-1/4”
Hex Bolt
1/4-5/16”
Large Washer
1/4” Lock
Nut
Large Roof
Assembly
x 4
Fig. 18.3
Rafter Corners
aligned with
mitre in Beam
Assemblies
Rafter Corner
1/4-5/16”
Large Washer
1/4-5/16”
Large Washer
