52 support@yardistrystructures.com
B: From the outside of the assembly have one person push one Large Roof Assembly in so (648) Sot ts tight
to the Long Beam Assembly and two people pushing up at the peak. One person fastens each Roof to Beam
Bracket to (633) Centre Rafters then to the Long Beam Assemblies with three #12 x 1-1/2” Pan Screws. Install
top screw into (633) Centre Rafter rst then other two into the beam. Tighten bracket bolts. Repeat this process
for the second Large Roof Assembly. (g. 18.4)
Note: Make sure corners are tight and ush prior to attaching screws.
Step 18: Attach Large Roof Assemblies to Frame
Part 2

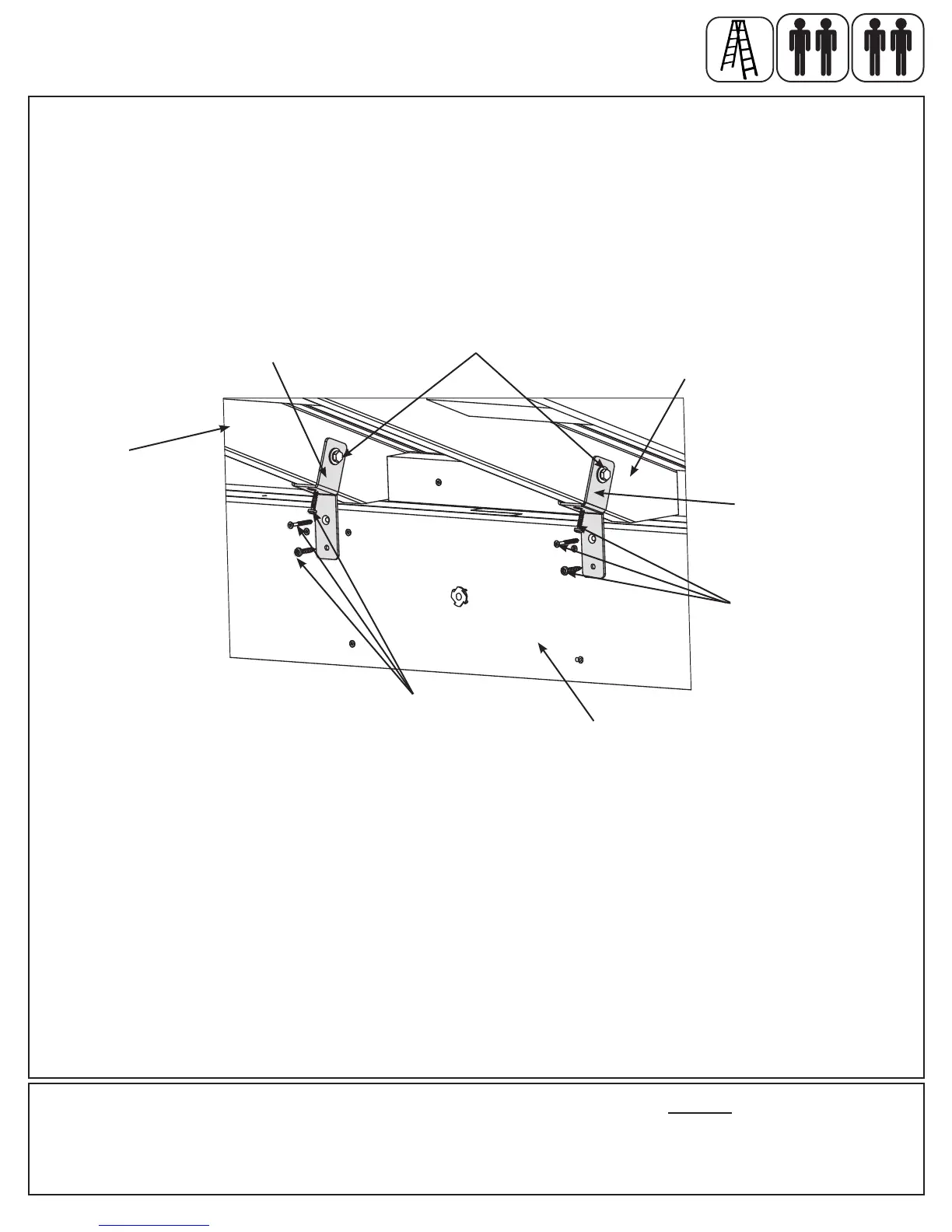

Fig. 18.4
x 3
Long Beam
Assembly
Hardware
Roof to
Beam
Bracket
12 x #12 x 1-1/2” Pan Screw
(633) Centre Rafter
Roof to
Beam
Bracket
(633)
Centre
Rafter
#12 x 1-1/2”
Pan Screw
#12 x 1-1/2”
Pan Screw
Tighten bolts
To Next Page
