C: Attach one Roof to Beam Bracket to each (634) Rafter on both Large Roof Assemblies with one 1/4 x 2” Hex
Bolt (with two 1/4-5/16” large washers and one 1/4” lock nut) and three #12 x 1-1/2” Pan Screws, per bracket.
(g. 18.5 and 18.6)
D: Tighten both bolts which join Large Roof Assemblies. (g. 18.7)
Step 18: Attach Large Roof Assemblies to Frame
Part 3
x 3
Long Beam
Assembly
Hardware
1/4 x 2” Hex Bolt
12 x #12 x 1-1/2” Pan Screw
4 x 1/4 x 2” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
1/4”
Lock
Nut
1/4-5/16”
Large Washer

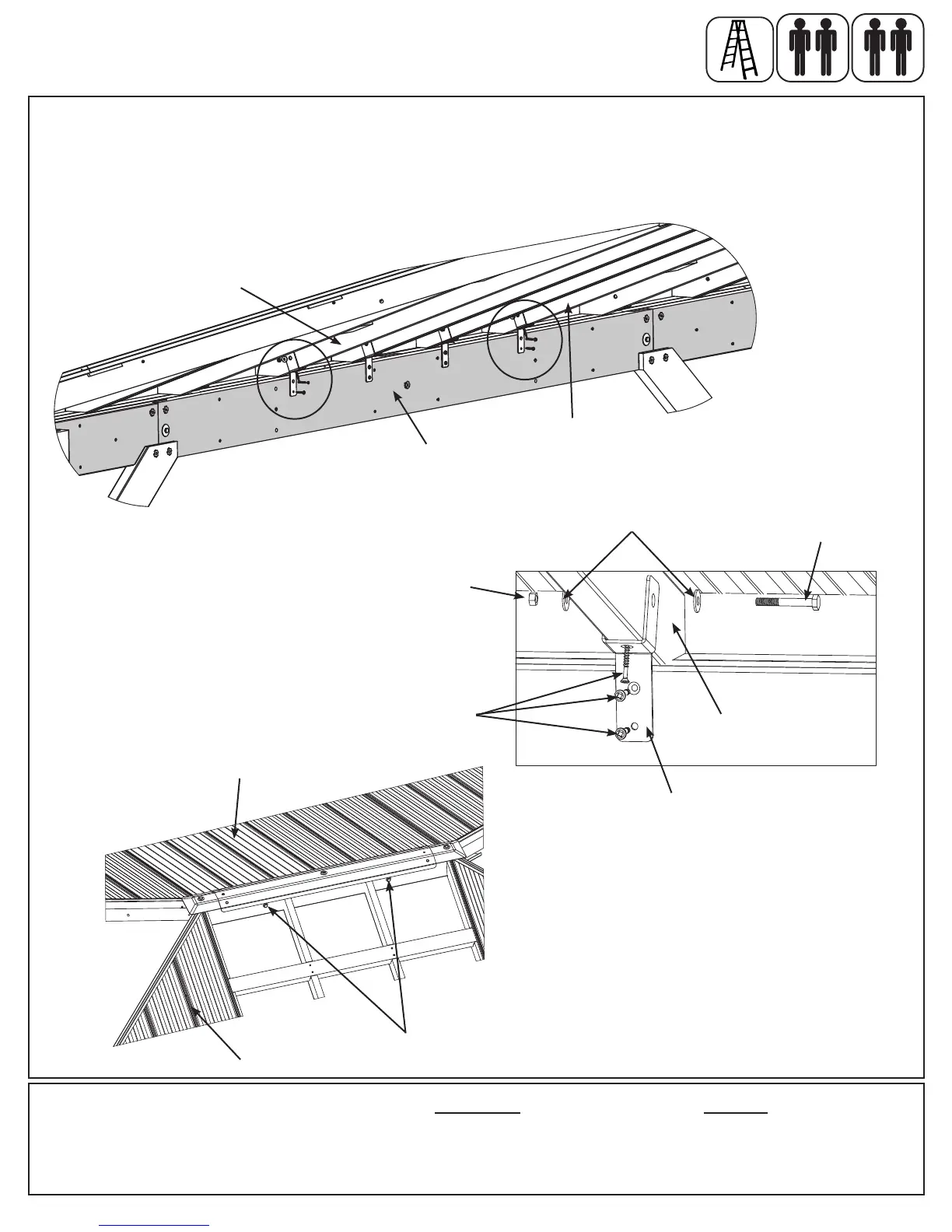

Fig. 18.5
(634)
Rafter
(634) Rafter
(634) Rafter
Roof to
Beam
Bracket
#12 x 1-1/2”
Pan Screw
Fig. 18.6
Fig. 18.7
Components
4 x Roof to Beam Bracket
Parts removed
for clarity
Large Roof
Assembly
Large Roof
Assembly
Tighten Bolts
To Next Page
