Step 18: Attach Large Roof Assemblies to Frame
Part 4
E: With one person on each end of the roof place Peak Cap Assembly on top of Large Roof Assemblies so
Carriage bolts with Peak Post t through gaps between the roof assemblies. (g. 18.8)
F: Insert one 1/4” Nut into one Peak Loop. Be careful nut is loose and will fall out until attached to Carriage Bolt.
(g. 18.9)
G: Place one Peak Bracket over the middle Carriage Bolt then attach Peak Loop to Carriage Bolt and twist to
tighten. (g. 18.10)

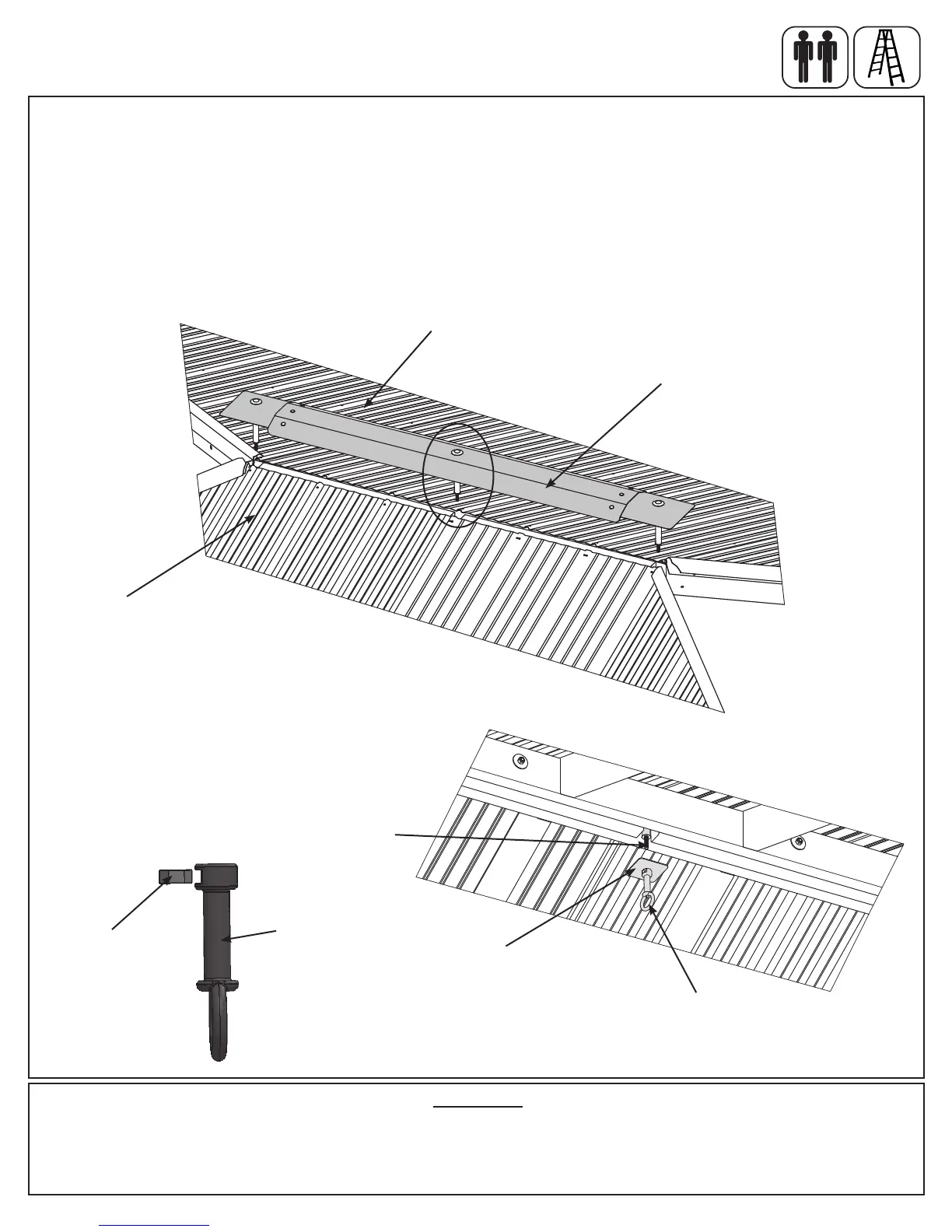

Fig. 18.8
Peak Cap
Assembly
Large Roof
Assembly
Large Roof
Assembly
Inside View
x 2
Fig. 18.10
Peak
Loop
Peak
Bracket
Carriage
Bolt
Outside View
Components:
1 x Peak Loop
1 x 1/4” Nut
1 x Peak Bracket
Fig. 18.9
Peak
Loop
1/4” Nut
To Next Page
