Repeat X2
Attach a Small panel to each Corner
using
5/16 x 2-3/4" hex bolts (2x 5/16 flat
washer, 5/16 lock nut)
Parts removed
for clarity
A: With all four assemblers lift one Small Roof Assembly up and over the Short Beam Assembly. You will need to
lift the Roof Peak Assembly to get the top under it. Loosely attach each (623) Rafter Corner Right to each (624)
Rafter Corner Left with three 1/4 x 2-3/4” Hex Bolts (with two 1/4-5/16” large washers and one 1/4” lock nut) per
side. To align bolt holes helper in the centre may have to push up the centre of the panels and others make sure
corners are aligned. Make sure all bolts are tight. Joining rafters must be ush on the inside. (g. 19.1, 19.2 and
19.3)
B: Repeat Step A for second Small Roof Assembly.
Fig. 19.1
Small Roof
Assembly
(not shown)
x 3
One assembler to support
roof panel(s) at all times
until secure
Short Beam
Assembly

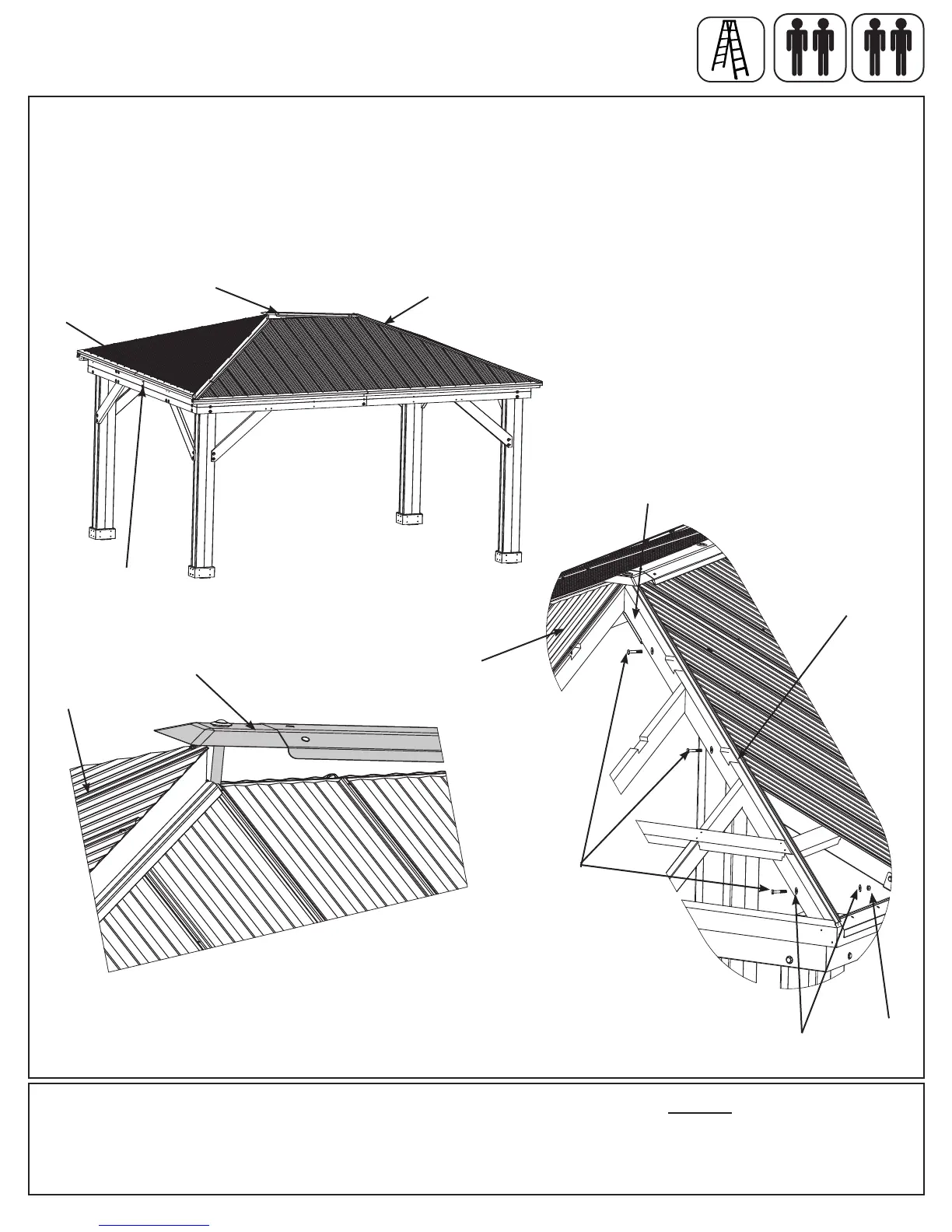

Step 19: Attach Small Roof Assemblies to Frame
Hardware
12 x 1/4 x 2-3/4” Hex Bolt
(1/4-5/16” large washer x 2, 1/4” lock nut)
Small Roof
Assembly
Small Roof
Assembly
(623) Rafter
Corner Right
1/4”
Lock
Nut
1/4-5/16”
Large Washer
1/4 x 2-3/4”
Hex Bolt
Roof Peak
Assembly
Roof Peak
Assembly
(624) Rafter
Corner Left
Small Roof
Assembly
Fig. 19.3
Fig. 19.2
