#12 x 1-1/2 Pan Screw
(4 per bracket)
Y004XX-191
45º Twist Bracket Lt x2
Y004XX-192
45º Twist Bracket Rt x2
4inches Down from
top of Pst (4 Posts)
A: Measure 4” down from the inside of each Post Assembly, place bottom of either 45° Twist Bracket LT or 45°
Twist Bracket RT at measured location then attach to Post Assembly and Corner Rafter (Left or Right) with four
#12 x 1-1/2” Pan Screws per bracket. (g. 26.1 and 26.2)
Step 26: Attach Twist Brackets
Components:
2 x 45° Twist Bracket LT
2 x 45° Twist Bracket RT
45° Twist
Bracket
(LT/RT)
#12 x 1-1/2”
Pan Screw
Post
Assembly
Hardware
16 x #12 x 1-1/2” Pan Screw

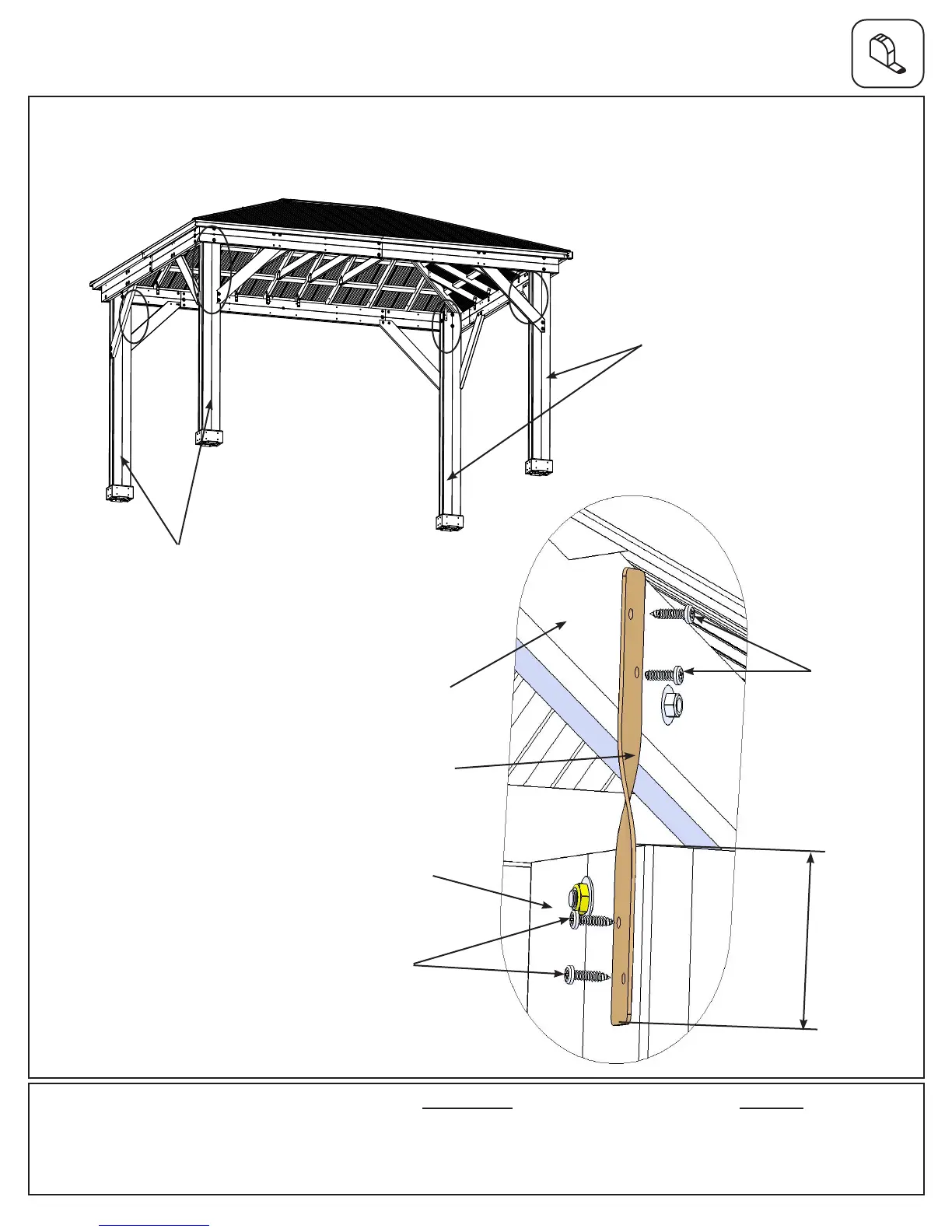

Fig. 26.1
4”
#12 x 1-1/2”
Pan Screw
Fig. 26.2
Rafter Corner
(Left or Right)
Post
Assembly
Post
Assembly
