Hardware
8 x #8 x 2-1/2” Wood Screw
16 x #8 x 3/4” Sheet Metal Screw

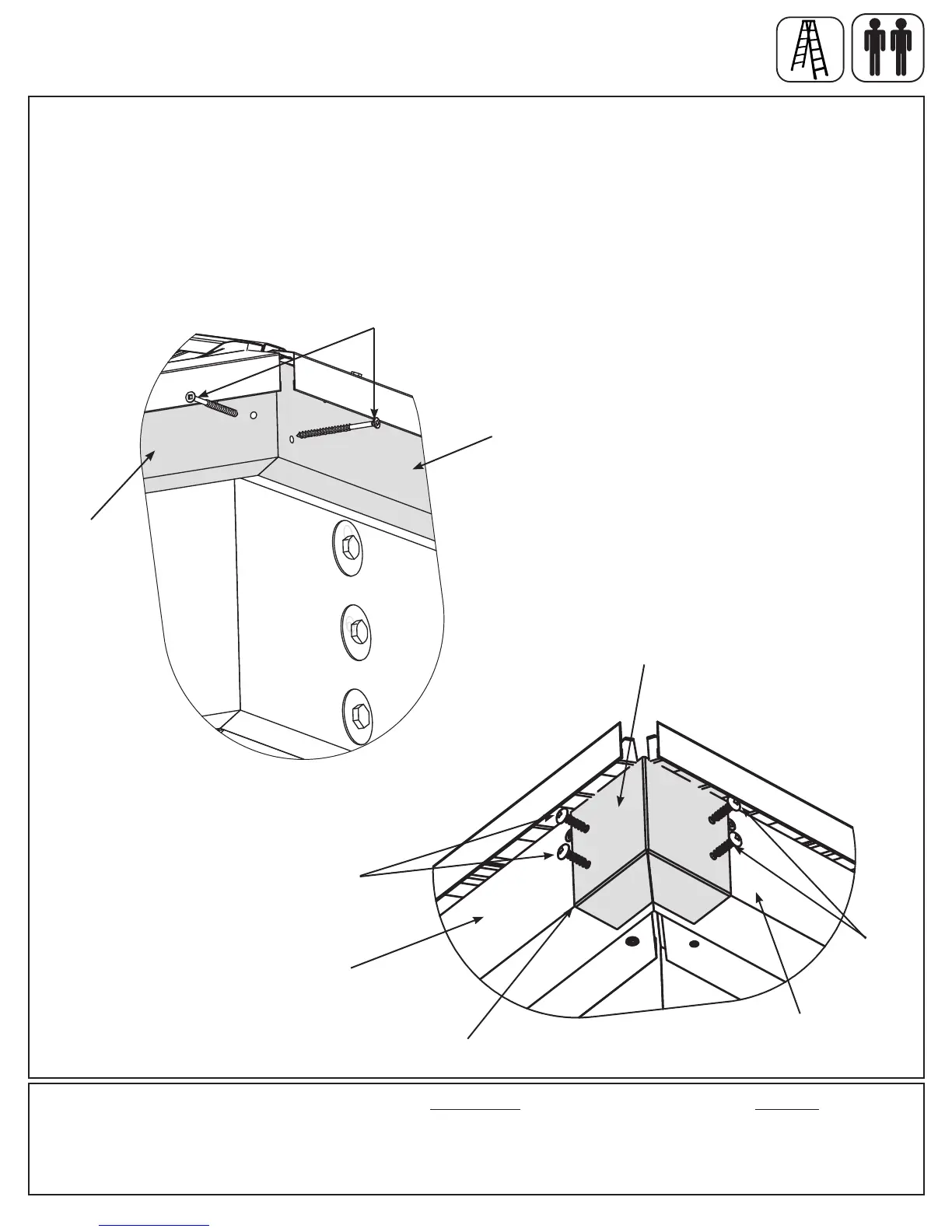

A: From outside the assembly attach Small Roof Assemblies and Large Roof Assemblies together at the Fascia
Beam Assembly and Large Fascia Beam Assembly with two #8 x 2-1/2” Wood Screws per corner. A helper may
need to lift the centre of the roof to bring the corners tight together. (g. 20.1)
B: At each corner place one Corner Cap tight to Fascia Assemblies and Large Fascia Assemblies, push up so
the bottom is tight to the bottom of the fascia then attach with four #8 x 3/4” Sheet Metal Screws per Corner Cap.
(g. 20.2)
Fig. 20.1
Fig. 20.2
Fascia Beam
Assembly
#8 x2-1/2”
Wood Screw
Fascia Beam
Assembly
Step 20: Secure Roof Corners
x 3
Large Fascia
Beam Assembly
Components:
4 x Corner Cap
Large Fascia
Beam Assembly
Corner Cap
#8 x 3/4”
Sheet Metal
Screw
Tight
#8 x 3/4”
Sheet Metal
Screw
