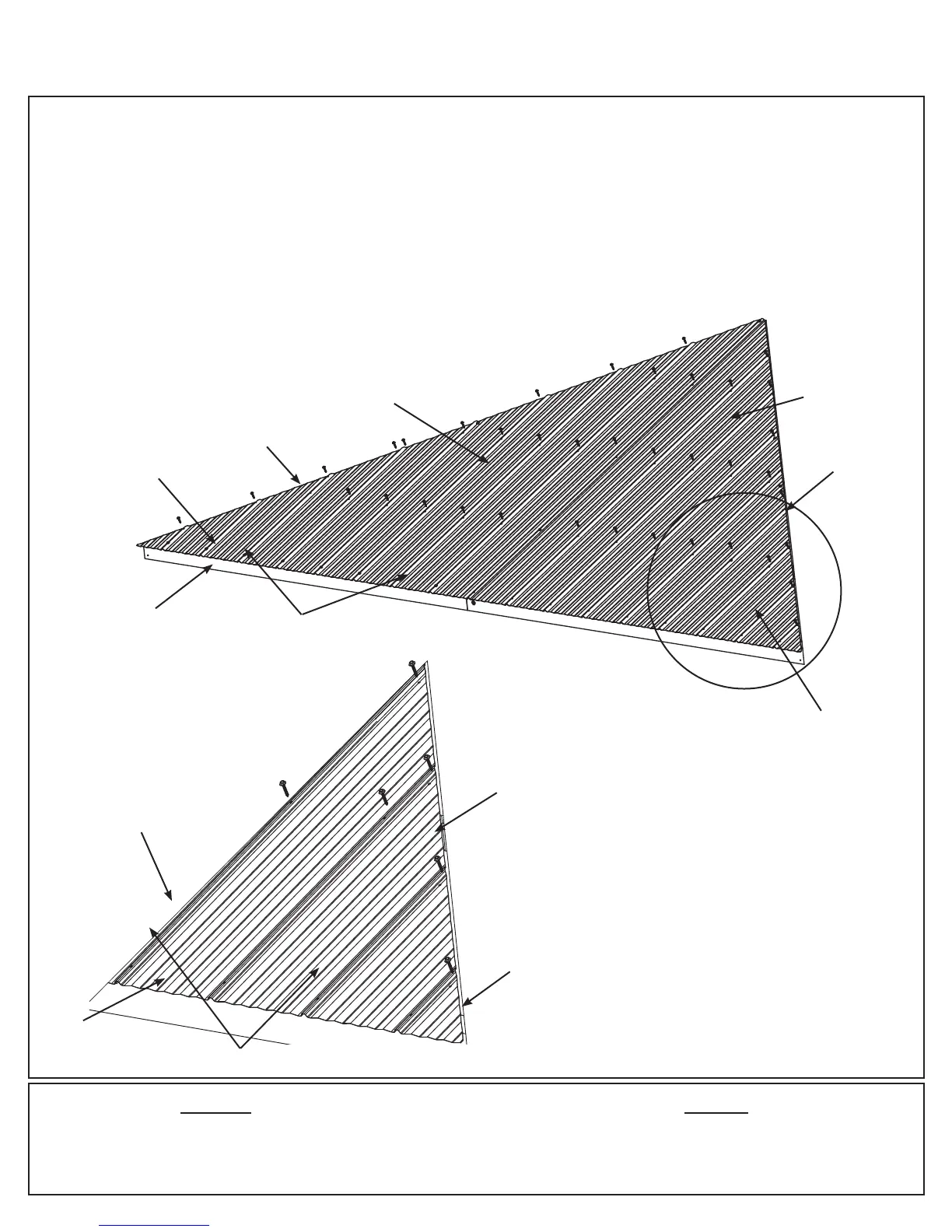

Fig. 9.4
Fig. 9.3
Hardware
80 x #8 x 1” Roong Screw
Roof Parts
2 x Short Panel Left
2 x Short Panel Right
E: Place one Short Panel Left on Small Roof Assembly so it overlaps the Long Panel Left and it is ush to the
sides of (624) Rafter Corner Left and a slight overhang at the bottom of the Fascia Beam Assembly. There
should be no overhang at the corners. (g. 9.3 and 9.4)
F: Place one Short Panel Right on Small Roof Assembly so it overlaps the Long Panel Right and it is ush to
the side of (623) Rafter Corner Right and a slight overhang at the bottom of the Fascia Beam Assembly. There
should be no overhanging at the corners. (g. 9.3 and 9.4)
G: Attach all panels to Small Roof Assembly with 40 #8 x 1” Roong Screws in locations shown in g. 9.3. Do
not place any screws along the bottom row. Be sure not to overtighten screws.
H: Repeat Steps E - G for both Small Roof Assemblies.
(624) Rafter
Corner Left
(hidden)
(623) Rafter
Corner Right
(hidden)
#8 x 1”
Roong
Screws (x 40
per assembly)
Long Panel
Left
Long Panel
Right
Short Panel
Left
Short Panel
Right
Panels ush
to corners, no
overhang
Panels overlap
at the seams
Fascia Beam
Assembly
Fascia Beam
Assembly
No screws along bottom row
DO NOT overtighten
screws, could cause
damage to roong
material
Step 9: Attach Roof Panels - Small Roof Assembly
Part 2
No screws along
bottom row
