30 support@yardistrystructures.com
Hardware
#8 x 1-1/2”
Wood Screws
x 20
Fig. 7.12

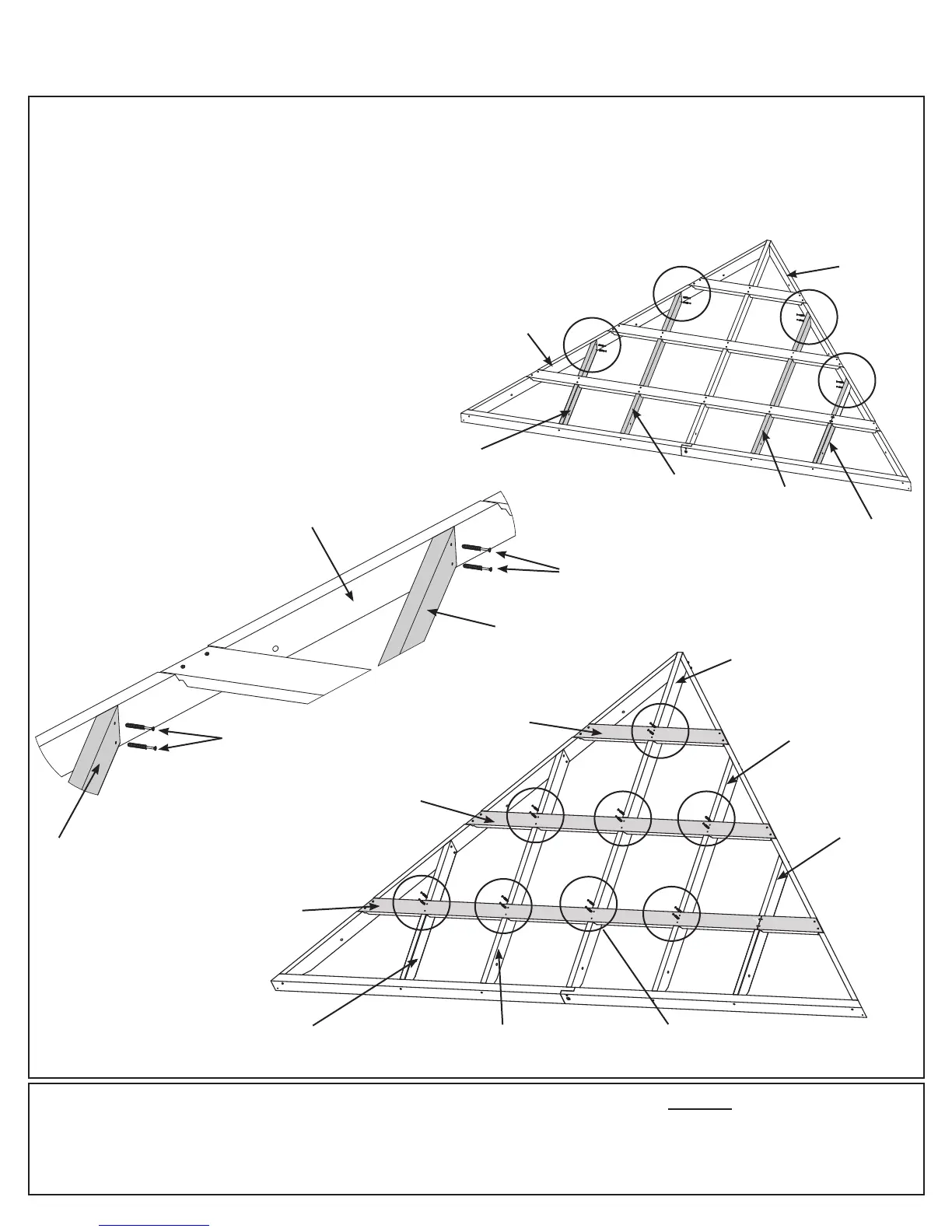

Step 7: Small Roof Assembly
Part 4
48 x #8 x 1-1/2” Wood Screw
F: Attach (629) Rafter Short RT and (632) Rafter Centre RT to (623) Rafter Corner Right and (631) Rafter
Centre LT and (630) Rafter Short LT to (624) Rafter Corner Left with two #8 x 1-1/2” Wood Screw per rafter. (g.
7.12 and 7.13)
G: Attach (636) Top Strap, (637) Mid Strap and (687) Bottom Strap LT to rafters with 16 #8 x 1-1/2” Wood
Screws. (g. 7.14)
H: Complete Steps F and G for both Small Roof Assemblies.
#8 x 1-1/2”
Wood Screws
(624) Rafter
Corner Left
(623) Rafter
Corner Right
Fig. 7.13
(637) Mid
Strap
(636) Top
Strap
(687) Bottom
Strap LT
(624) Rafter
Corner Left
(629) Rafter
Short RT
(632) Rafter
Centre RT
(630) Rafter
Short LT
(631) Rafter
Centre LT
#8 x 1-1/2”
Wood Screws
Fig. 7.14
(630) Rafter
Short LT
(631) Rafter
Centre LT
(634)
Rafter
(629) Rafter
Short RT
(632) Rafter
Centre RT
(630) Rafter
Short LT
(631) Rafter
Centre LT
