Yardistry YM12944 User Manual

29 support@yardistrystructures.com
HardwareWood Parts
#8 x 1-1/2” Wood Screws
x 4 per board
Fig. 7.9
Step 7: Small Roof Assembly
Part 3
32 x #8 x 1-1/2” Wood Screw
2 x (636) Top Strap
2 x (637) Mid Strap
2 x (687) Bottom Strap LT
2 x (688) Bottom Strap RT
(637) Mid
Strap
No
Overhang
(624) Rafter
Corner Left
(623) Rafter
Corner Right
(636) Top
Strap
(687) Bottom
Strap LT
#8 x -1-1/2”
Wood Screws

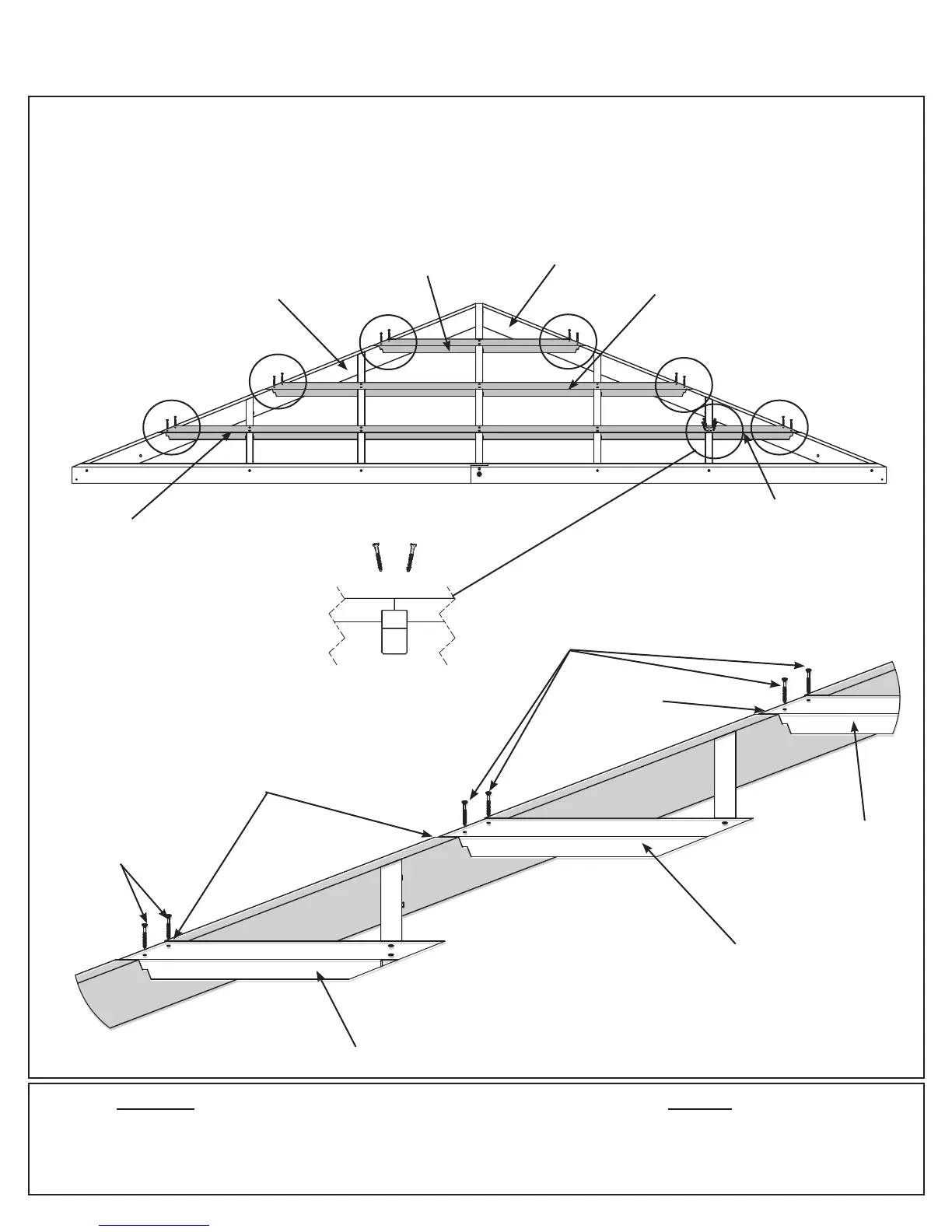

E: Place one (636) Top Strap, one (637) Mid Strap, one (687) Bottom Strap LT and one (688) Bottom Strap
RT in the notches of each rafter so the ends do not overhang the outside edges of the outside boards. (687)
Bottom Strap LT and (688) Bottom Strap RT sit tight together. Attach with four #8 x 1-1/2” Wood Screws per
strap. Complete for each Small Roof Assembly. (g. 7.9, 7.10 and 7.11)
Fig. 7.10
(637) Mid
Strap
(636) Top
Strap
(687) Bottom
Strap LT
No
Overhang
(688) Bottom
Strap RT
Notice these
screws go in
at an angle
Fig. 7.11
