Yardistry YM12944 User Manual

28 support@yardistrystructures.com
Y50000-629
Rafter Short RT
Rafter Centre LT
Y50000-631
#8 x 2¼ Wood Screw
Rafter Short LT
Y50000-630
Rafter Centre RT
Y50000-632
Y50000-629
Rafter Short RT
Rafter Centre LT
Y50000-631
#8 x 2¼ Wood Screw
Rafter Short LT
Y50000-630
Rafter Centre RT
Y50000-632
HardwareWood Parts

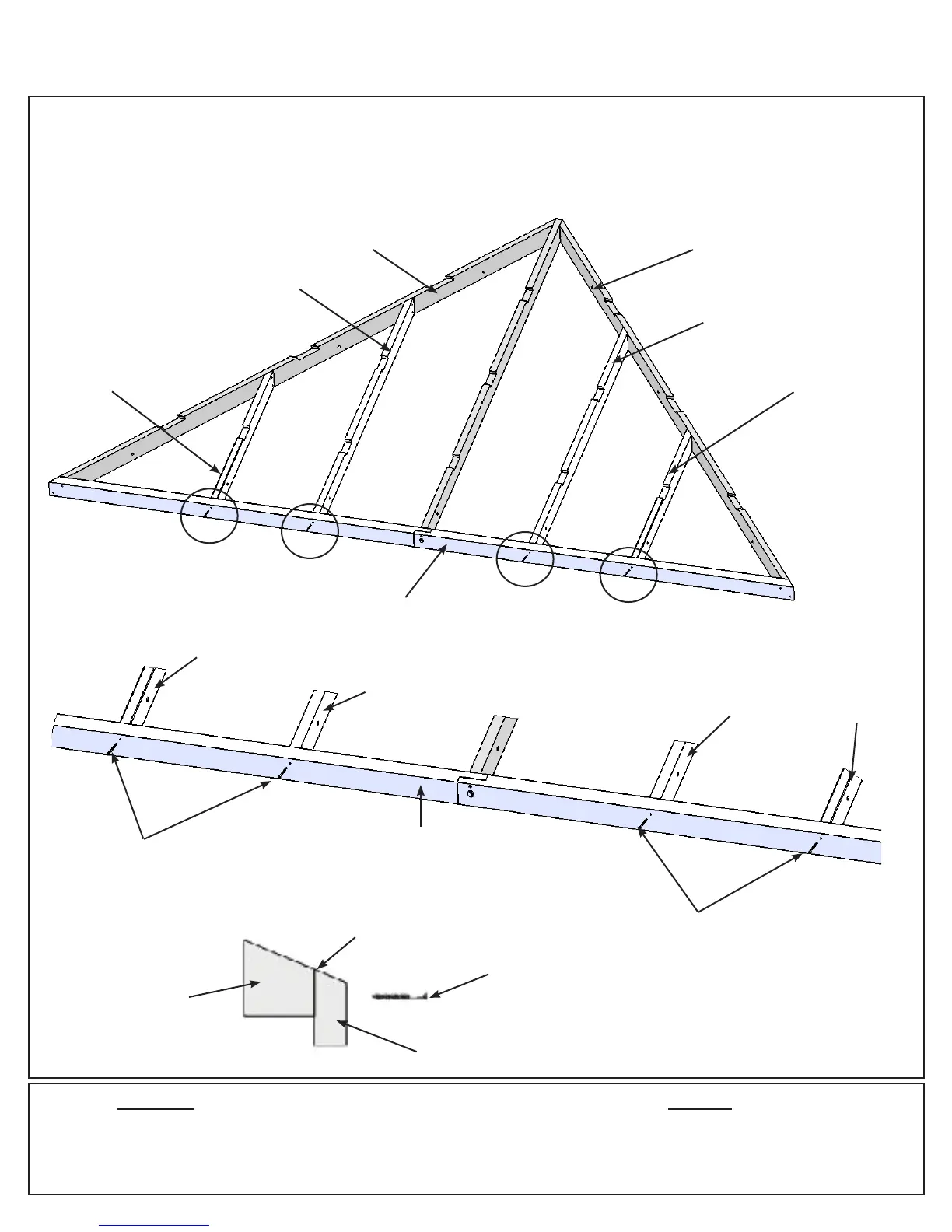

Fig. 7.6
Step 7: Small Roof Assembly
Part 2
8 x #8 x 2-1/2” Wood Screw
2 x (629) Rafter Short RT
2 x (630) Rafter Short LT
2 x (631) Rafter Centre LT
2 x (632) Rafter Centre RT
D: Place one (629) Rafter Short RT, one (632) Rafter Centre RT, one (631) Rafter Centre LT and one (630)
Rafter Short LT over the pilot holes in the Fascia Beam Assembly so they are ush to the top of the assembly
and tight to both (623) Rafter Corner Right and (624) Rafter Corner Left, as shown in g. 7.6. Attach Fascia
Beam Assembly to rafters with one #8 x 2-1/2” Wood Screw per rafter. Repeat for second Small Roof Assembly.
(g. 7.6, 7.7 and 7.8)
Fascia Beam
Assembly
(624) Rafter
Corner Left
(623) Rafter
Corner Right
Flush
(629) Rafter
Short RT
Rafter
#8 x 2-1/2”
Wood Screws
(632) Rafter
Centre RT
(630) Rafter
Short LT
(631) Rafter
Centre LT
Fascia Beam
Assembly
Fig. 7.7
(629) Rafter
Short RT
(632) Rafter
Centre RT
(630) Rafter
Short LT
(631) Rafter
Centre LT
Fascia Beam
Assembly
Fig. 7.8
#8 x 2-1/2”
Wood Screws
#8 x 2-1/2”
Wood Screws
