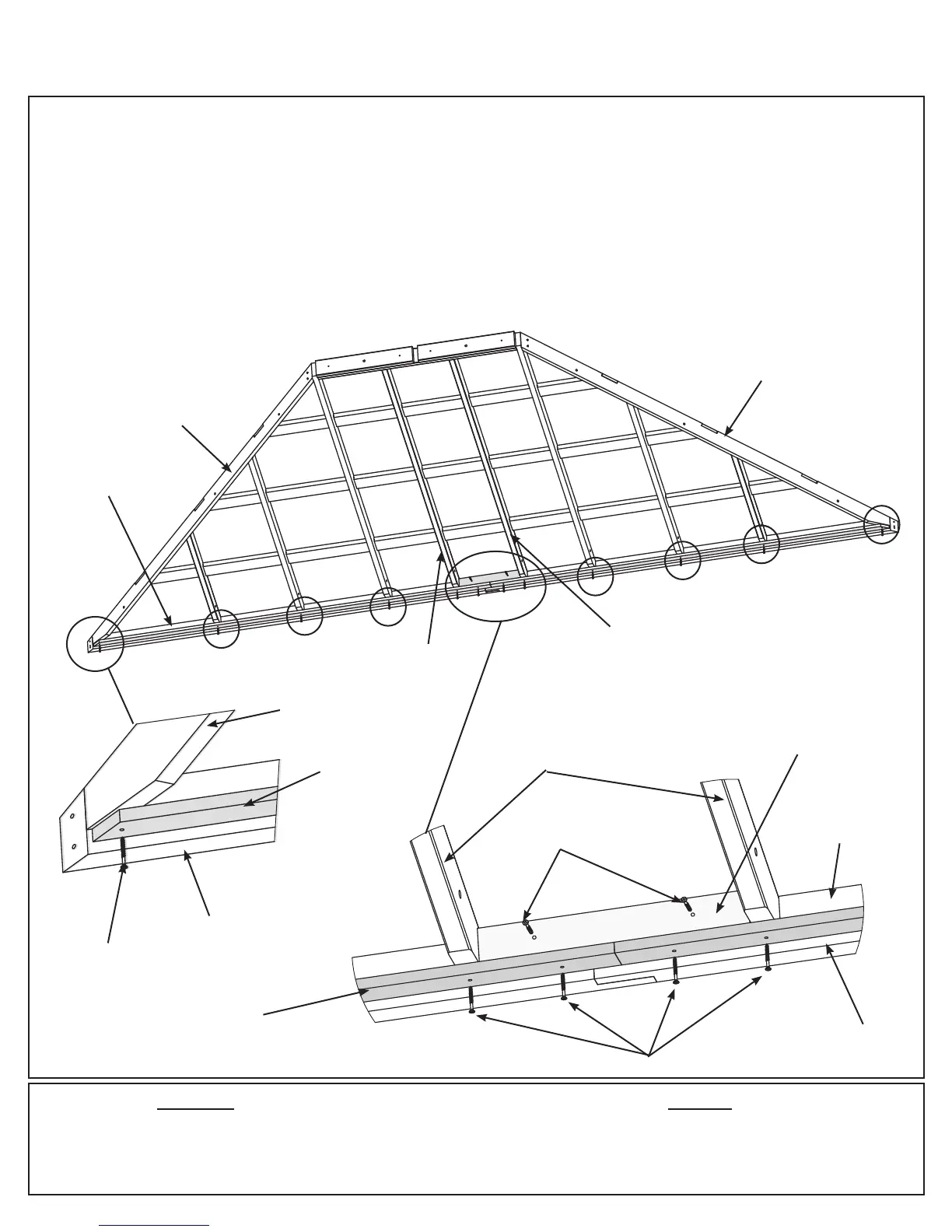

H: Turn over each Large Roof Assembly then place one (639) Fascia Block in between both (633) Centre
Rafters, ush to the front of the Large Fascia Beam Assembly. Attach (639) Fascia Block to Large Fascia
Assembly with two #8 x 2-1/4” Wood Screws. (g. 12.13 and 12.14)
I: Place two (647) So󰀩t Longs tight to the top Large Fascia Assembly so they meet tight together in the centre
and are ush with the outside edges of (623) Rafter Corner Right and (624) Rafter Corner Left. Attach (647)
So󰀩t Longs to each rafter and (639) Fascia Block with 12 #8 x 1” Pan Screws. (g. 12.13, 12.14 and 12.15)
J: Repeat Steps H and I for both Large Roof Assemblies.
Step 12: Large Roof Assembly
Part 7
Hardware
Fig. 12.13
4 x #8 x 2-1/4” Wood Screw
24 x #8 x 1” Pan Screw
(624) Rafter
Corner Left
Fig. 12.15
#8 x 1” Pan
Screw
Fig. 12.14
(623) Rafter
Corner Right
Wood Parts
2 x (639) Fascia Block
4 x (647) So󰀩t Long
Large Fascia
Beam Assembly
#8 x 1” Pan Screw x 12 per panel
Large Fascia
Beam Assembly
Large Fascia
Beam Assembly
(633) Centre
Rafter
(633) Centre
Rafter
(633) Centre Rafter
(623) Rafter
Corner Right
(639) Fascia
Block
#8 x 2-1/4”
Wood Screw
(647) So󰀩t
Long
(647) So󰀩t
Long
(647)
So󰀩t
Long
