Yardistry YM12944 User Manual

43 support@yardistrystructures.com
Hardware
#8 x 1-1/2”
Wood Screws
x 24 per panel

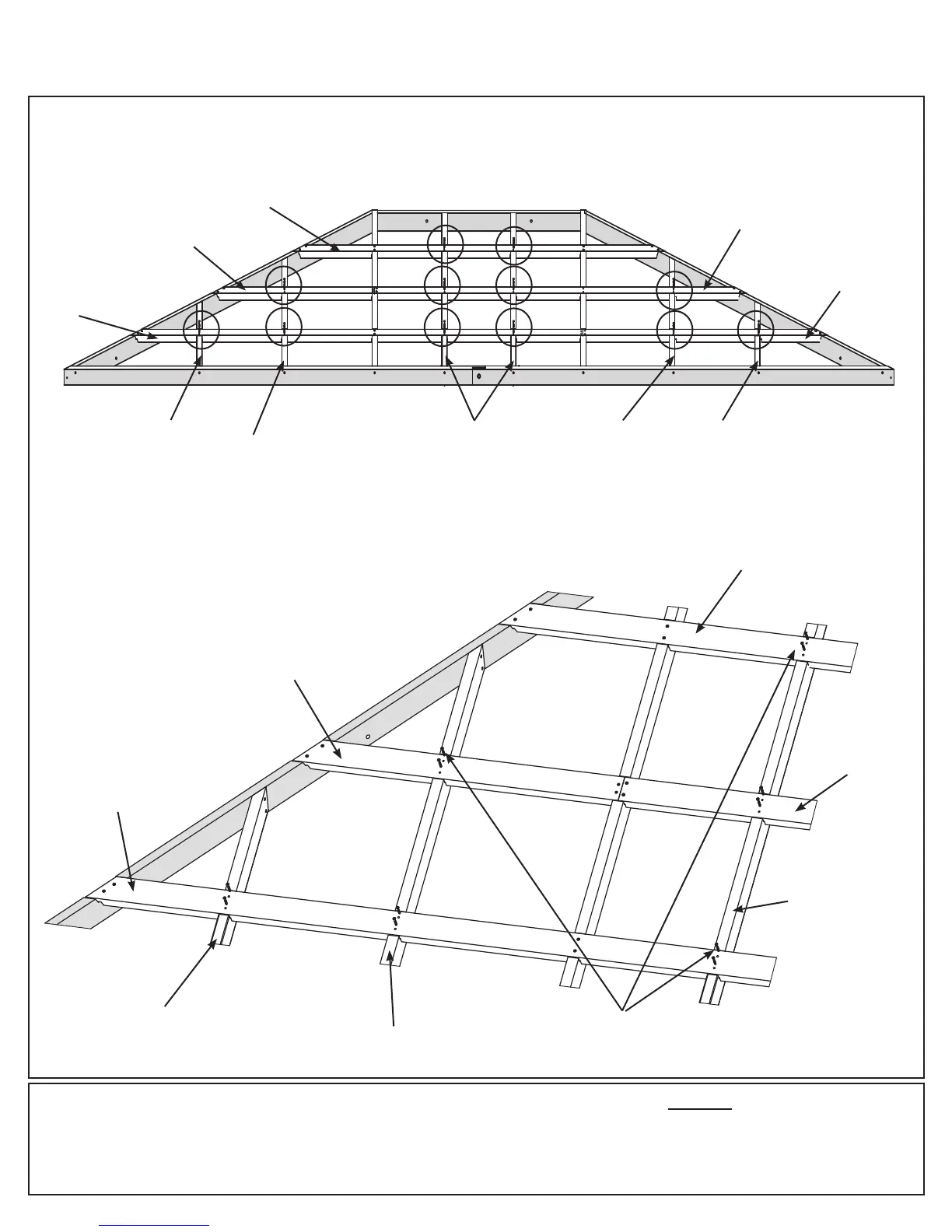

Fig. 12.11
48 x #8 x 1-1/2” Wood Screw
G: Attach (640) Strap Top LG, (641) Strap Mid LT, (642) Strap Mid RT, (643) Strap Bot LT and (644) Strap Bot
RT to (629) Rafter Short RT, (632) Rafter Centre RT, (630) Rafter Short LT, (631) Rafter Centre LT and both (633)
Centre Rafters with 24 #8 x 1-1/2” Wood Screws. Complete for each Large Roof Assembly. (g. 12.11 and 12.12)
Fig. 12.12
(629) Rafter
Short RT
(632) Rafter
Centre RT
(633) Centre
Rafter
(630) Rafter
Short LT
(631) Rafter
Centre LT
(630) Rafter
Short LT
(631) Rafter
Centre LT
Step 12: Large Roof Assembly
Part 6
(643) Strap
Bot LT
(640) Strap
Top LG
(642) Strap
Mid RT
(641) Strap
Mid LT
(644) Strap
Bot RT
(643) Strap
Bot LT
(640) Strap
Top LG
(642) Strap
Mid RT
(641) Strap
Mid LT
(633) Centre
Rafter
