Hardware
Fig. 12.9
16 x #8 x 1-1/2” Wood Screw

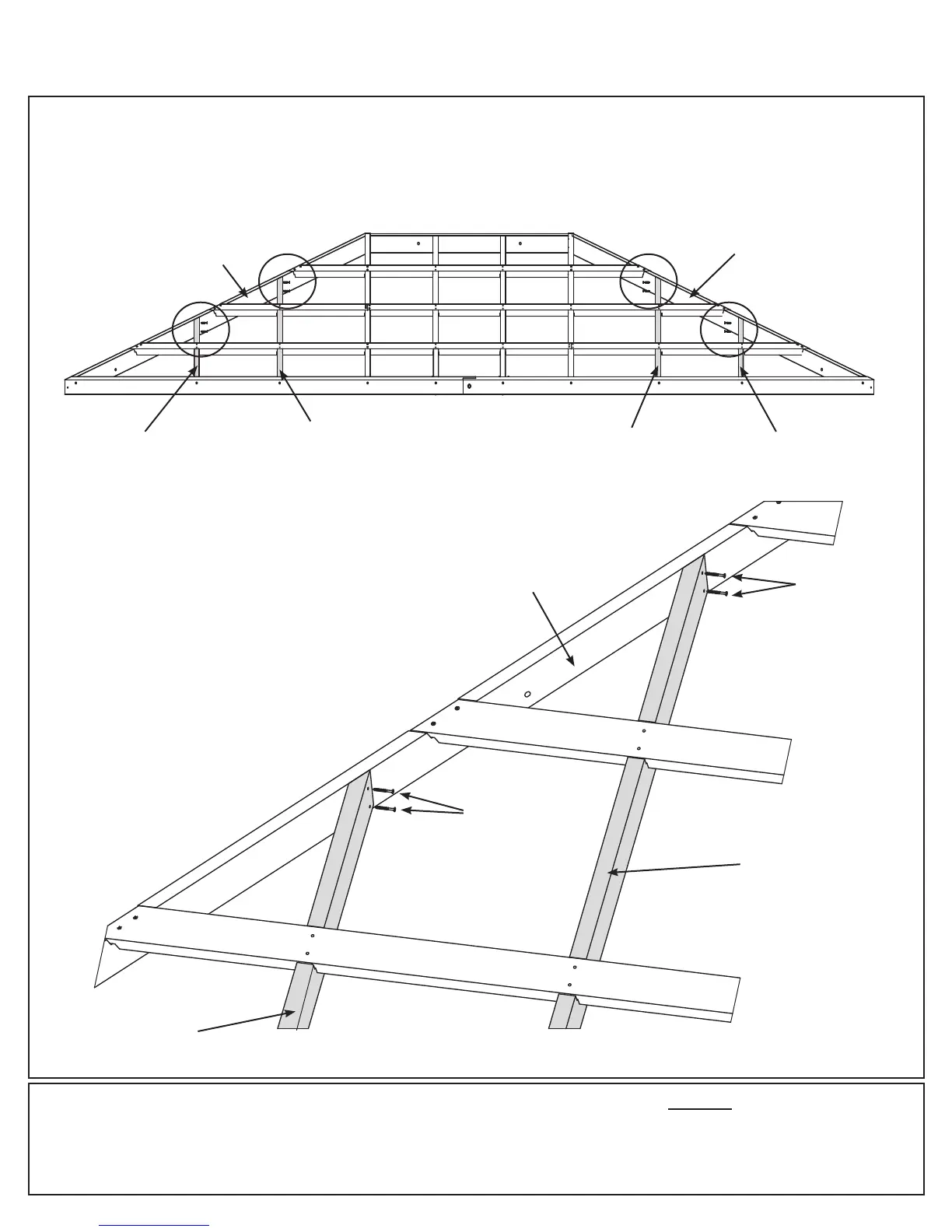

F: Attach (629) Rafter Short RT and (632) Rafter Centre RT to (623) Rafter Corner Right and (631) Rafter Centre
LT and (630) Rafter Short LT to (624) Rafter Corner Left with two #8 x 1-1/2” Wood Screw per rafter. Complete
for each Large Roof Assembly. (g. 12.9 and 12.10)
#8 x 1-1/2”
Wood Screws
(624) Rafter
Corner Left
(623) Rafter
Corner Right
Fig. 12.10
(624) Rafter
Corner Left
(629) Rafter
Short RT
(632) Rafter
Centre RT
#8 x 1-1/2”
Wood Screws
(630) Rafter
Short LT
(631) Rafter
Centre LT
(630) Rafter
Short LT
(631) Rafter
Centre LT
Step 12: Large Roof Assembly
Part 5
