Yardistry YM12944 - Page 41

41 support@yardistrystructures.com
HardwareWood Parts
(624) Rafter
Corner Left
(623) Rafter
Corner Right
(643) Strap
Bot LT
(640) Strap
Top LG
(642) Strap
Mid RT

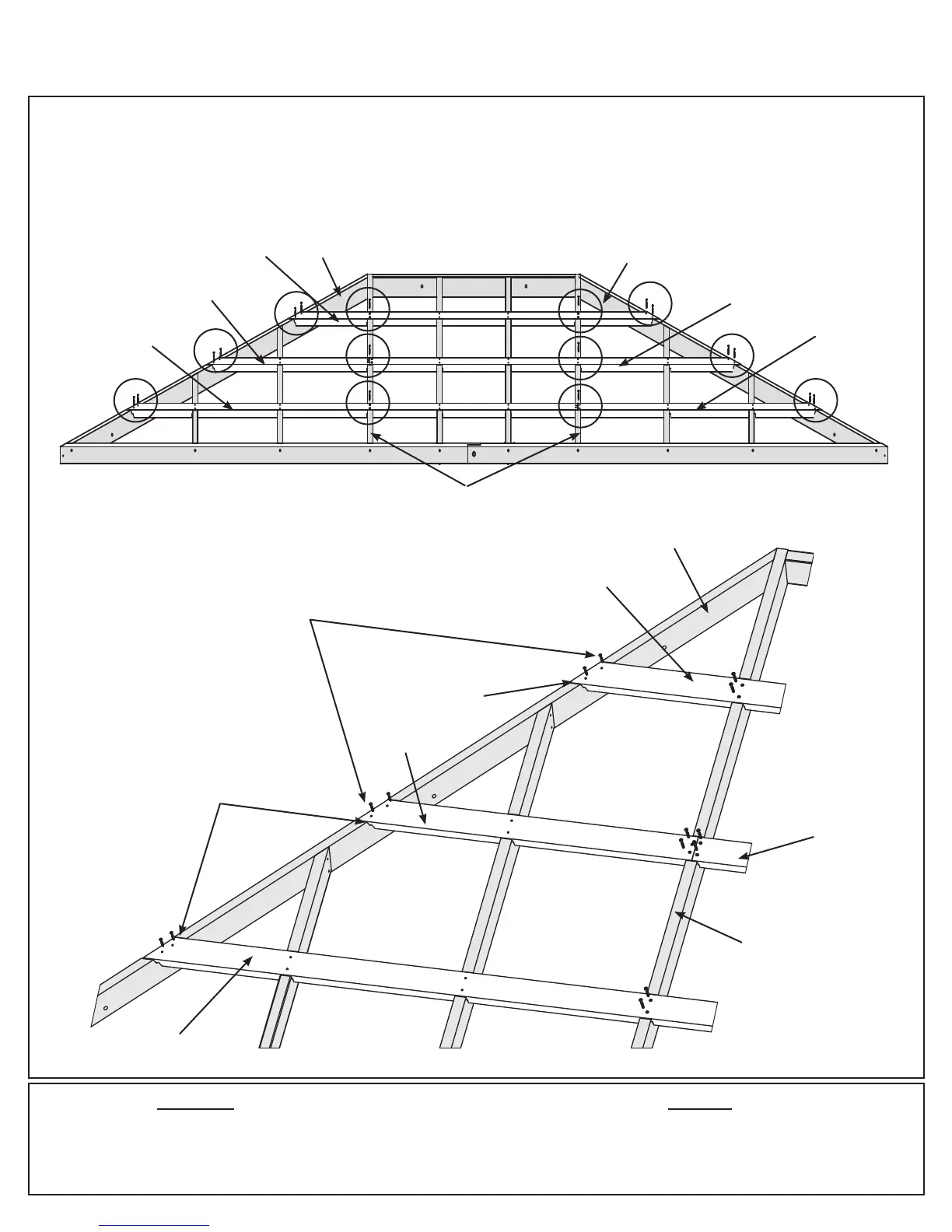

Fig. 12.7
(634)
Rafter
#8 x 1-1/2” Wood
Screws x 28 per panel
56 x #8 x 1-1/2” Wood Screw
2 x (640) Strap Top LG
2 x (641) Strap Mid LT
2 x (642) Strap Mid RT
No
Overhang
E: Place one (640) Strap Top LG, one (641) Strap Mid LT, one (642) Strap Mid RT, one (643) Strap Bot LT
and one (644) Strap Bot RT in the notches of each rafter so the ends do not overhang the outside edges of the
outside boards. (641) Strap Mid LT and (642) Strap Mid RT sit tight together and (643) Strap Bot LT and (644)
Strap Bot RT sit tight together. Attach to (623) Rafter Corner Right, (624) Rafter Corner Left and each (634)
Rafter with 28 #8 x 1-1/2” Wood Screws as shown below. Complete for each Large Roof Assembly. (g. 12.7
and 12.8)
Fig. 12.8
No
Overhang
2 x (643) Strap Bot LT
2 x (644) Strap Bot RT
Step 12: Large Roof Assembly
Part 4
(641) Strap
Mid LT
(644) Strap
Bot RT
(643) Strap
Bot LT
(642) Strap
Mid RT
(641)
Strap
Mid LT
(634) Rafter
(624) Rafter
Corner Left
(640) Strap
Top LG
