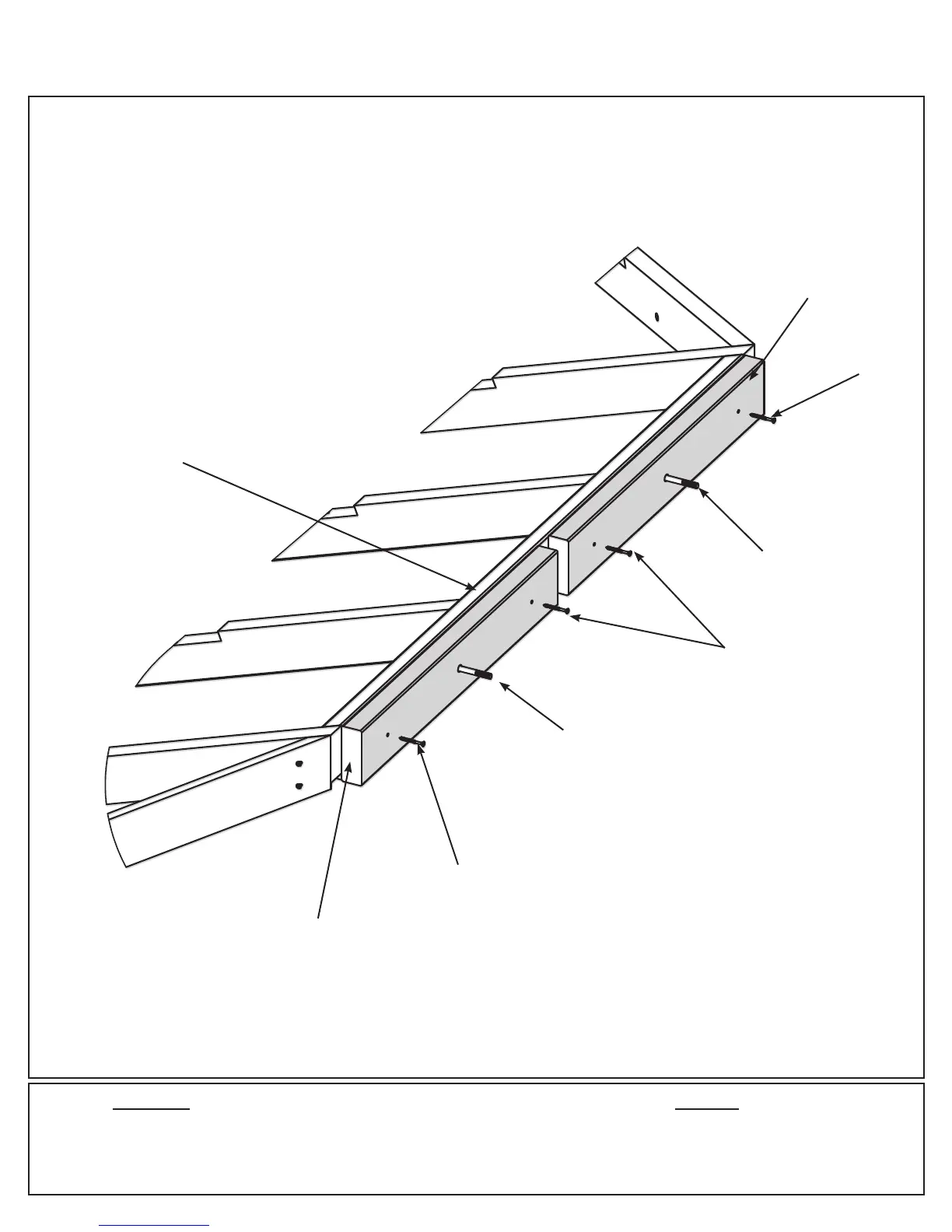

Fig. 12.6
I: On only one Large Roof Assembly, place two (645) Spacers on (635) Long Roof Top. To nd the correct
placement of each spacer insert one 1/4 x 4-1/4” Hex Bolt through (635) Long Roof Top into each (645) Spacer.
The bolts are for placement only, they are to be removed at the end of this step. Attach each spacer to (635) Long
Roof Top with two #8 x 2-1/4” Wood Screws per spacer. Remove bolts, to be used in Step 18. (g. 12.6)
Step 12: Large Roof Assembly
Part 3
2 x (645) Spacer
HardwareWood Parts
4 x #8 x 2-1/4” Wood Screw
2 x 1/4 x 4-1/4” Hex Bolt
(for placement purposes only)
#8 x 2-1/4”
Wood Screws
1/4 x 4-1/4” Hex
Bolt (for placement
purposes only, to be
removed when done)
(645) Spacer
1/4 x 4-1/4” Hex
Bolt (for placement
purposes only, to be
removed when done)
#8 x 2-1/4”
Wood Screws
#8 x 2-1/4”
Wood Screws
(645) Spacer
(635) Long
Roof Top
