Step 5: Frame Assembly and Anchoring
Part 5

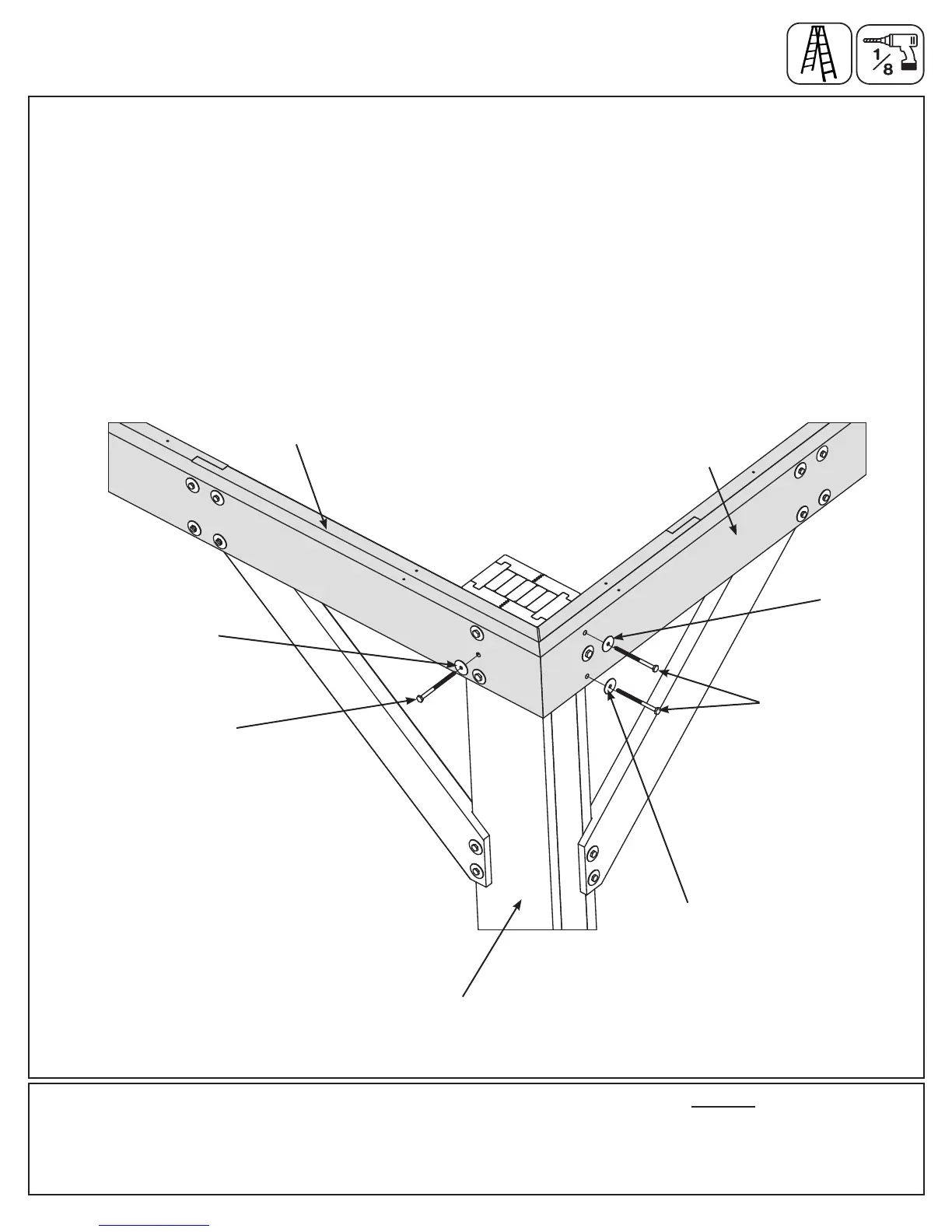

L: Pre-drill with a 1/8” drill bit then attach Long Beam Assemblies to Post Assemblies with one 5/16 x 4-3/4” Lag
Screw (with 1/4-5/16” large washer) per corner in the middle holes and Short Beam Assemblies to Post Assemblies
with two 5/16 x 4-3/4” Lag Screws (with 1/4-5/16” large washer) per corner in the top and bottom holes. (g. 5.11)
M: Depending on what you are placing the Gazebo on will determine how you anchor it to that surface. Please
refer to pages 6 and 7 for installation examples.
Any hardware or extra materials for
mounting will have to be purchased in advance.
Hardware
12 x 5/16 x 4-3/4” Lag Screw
(1/4-5/16” large washer)
1/4-5/16”
Large Washer
5/16 x 4-3/4”
Lag Screw
5/16 x 4-3/4”
Lag Screw
Long Beam
Assembly
Short Beam
Assembly
Post
Assembly
1/4-5/16”
Large Washer
Fig. 5.11
1/4-5/16”
Large Washer
To Next Page
