Installation 1-6
Diagnostic LED Power-up Sequence
A power-up test is performed each time the AC drive is powered-up after the initial boot-up sequence. The initial boot-up sequence may
take several seconds. When this sequence is complete, the LEDs will assume their normal conditions.
The EtherNet/IP Option Kit is successfully initialized after the LEDs have completed the above sequence.
Successful Initialization
The EtherNet/IP Option Kit hardware is installed and operating correctly with the LEDs in the states shown in bold text in the "LED
Descriptions" table on page 1-7. The LINK LED represents the status of the physical connection to the network and is not indicative of any
card state.

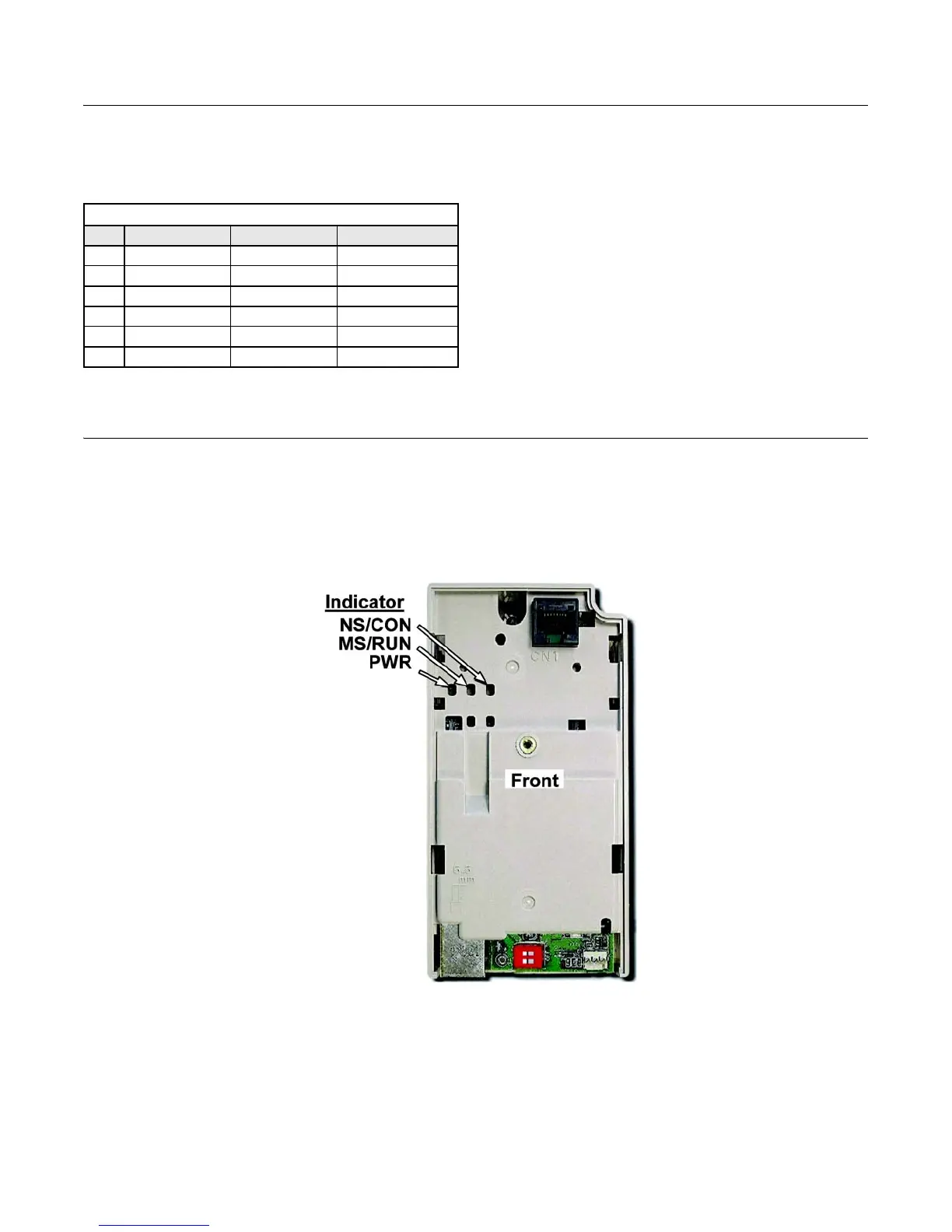

Fig 1.4 LED State Description
Table 1.2 - LED Power-up Sequence
Seq MS/RUN NS/CON Time
1 GREEN OFF 250ms
2 RED OFF 250ms
3 GREEN OFF 250ms
4 GREEN GREEN 250ms
5 GREEN RED 250ms
6 GREEN OFF
