Install the 24 V Transducer Power Supply (continued)
5
STEP
5.2 Prior to Installing the 24V Power Supply
Prior to installing the 24V Power Supply, wire the drive, make necessary connections to the drive terminals, and verify that
the drive functions normally without the 24V Power Supply installed. Refer to the product manual packaged with the drive
for information on wiring and connecting the drive.
The installation procedure differs slightly depending on enclosure type. The enclosure type is identified within the drive model
number.

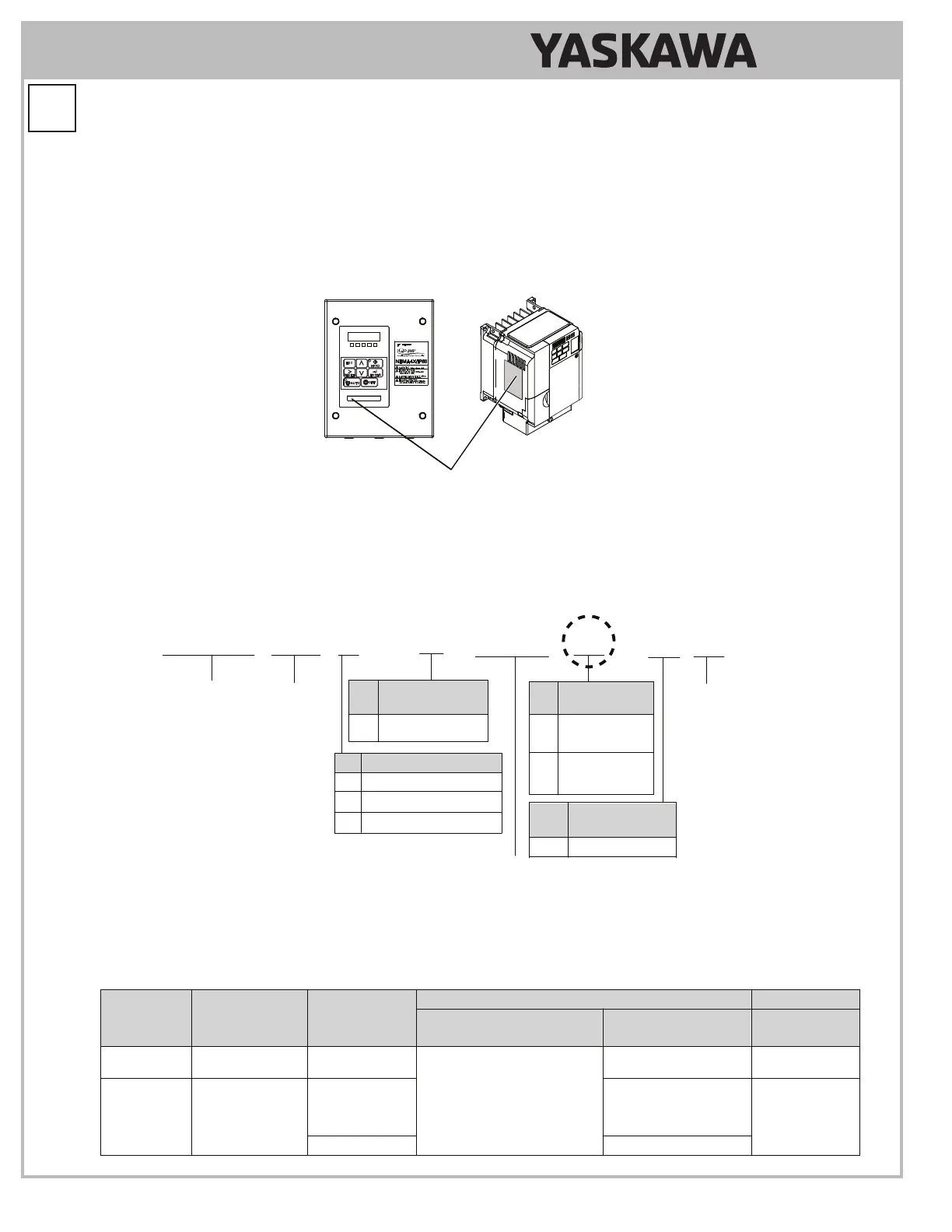

5.3
Locate the drive model number using Figure 1.3.
Model Number Location
Micro
Figure 1.3 Model Number Location
5.4
Identify the drive enclosure type. Use Figure 1.4 to find the digit within the model number that identifies the enclosure
type.
Note: Installing the 24V Power Supply on an IP20/NEMA 1, UL Type 1 enclosure drive voids NEMA 1, UL Type 1 protection while
maintaining IP20 conformity.
CIMR
-
PW 2 V 0010 F A A
Drive
iQpump
No.
Enclosure
Type
Design
Revision
Order
No.
Customized
Specifications
V Standard model
F
IP20/NEMA 1,
UL Type 1
No.
Environmental
Specification
A Standard
Drive Capacity
G
IP66/NEMA 4X,
UL Type 4X
No. Voltage Class
2
4
1-phase, 200-240 Vac
B
3-phase, 200-240 Vac
3-phase, 380-480 Vac
Figure 1.4 Drive Enclosure Type Identification
5.5
Select proper installation tools according to enclosure type and model.
Note: Tools required to prepare the 24V Power Supply cables for wiring are not listed in this manual.
Table 1.1 Tool and Material Requirements (Customer Supplied)
Model
Number
Enclosure
Type Digit
Drive Enclosure
Type
Drive Capacity
Tools Materials
Screwdriver Socket Wrench
Wire Tie with
Adhesive Mount
F
IP20/NEMA 1, UL
Type 1
All
Phillips screwdriver
M3 metric
#1, #2 U.S. standard size
Note: Screw sizes vary by
drive capacity. Select a
screwdriver appropriate for
the drive capacity.
Not applicable All models
G
IP66/NEMA 4X, UL
Type 4X
2V0030 to
2V0069
4V0018 to
4V0038
10 mm socket wrench
Not applicable
Other capacities
8 mm socket wrench
To Next Page
