6 Periodic Inspection & Maintenance
148 YASKAWA ELECTRIC TOEP C710616 38H YASKAWA AC Drive-L1000A Quick Start Guide
■ Replacing the Drive
WARNING! Electrical Shock Hazard. Do not connect or disconnect wiring while the power is on. Failure to comply can result in serious
personal injury. Before servicing the drive, disconnect all power to the equipment. The internal capacitor remains charged even after
the power supply is turned off. After shutting off the power, wait for at least the amount of time specified on the drive before touching
any components.
WARNING! Electrical Shock Hazard. Do not allow unqualified personnel to perform work on the drive. Failure to comply could result in
serious injury. Installation, maintenance, inspection and servicing must be performed only by authorized personnel familiar with
installation, adjustment and maintenance of AC drives.
NOTICE: Damage to Equipment. Observe proper electrostatic discharge procedures (ESD) when handling the drive and circuit boards.
Failure to comply may result in ESD damage to the drive circuitry.
The following procedure explains how to replace a drive. This section provides instructions for drive replacement only.
To install option cards or other types of options, refer to the specific manuals for those options.
NOTICE: When transferring a braking transistor, braking resistor, or other type of option from a damaged drive to a new replacement
drive, make sure they are working properly before reconnecting them to the new drive. Replace broken options to prevent immediate
break down of the replacement drive.

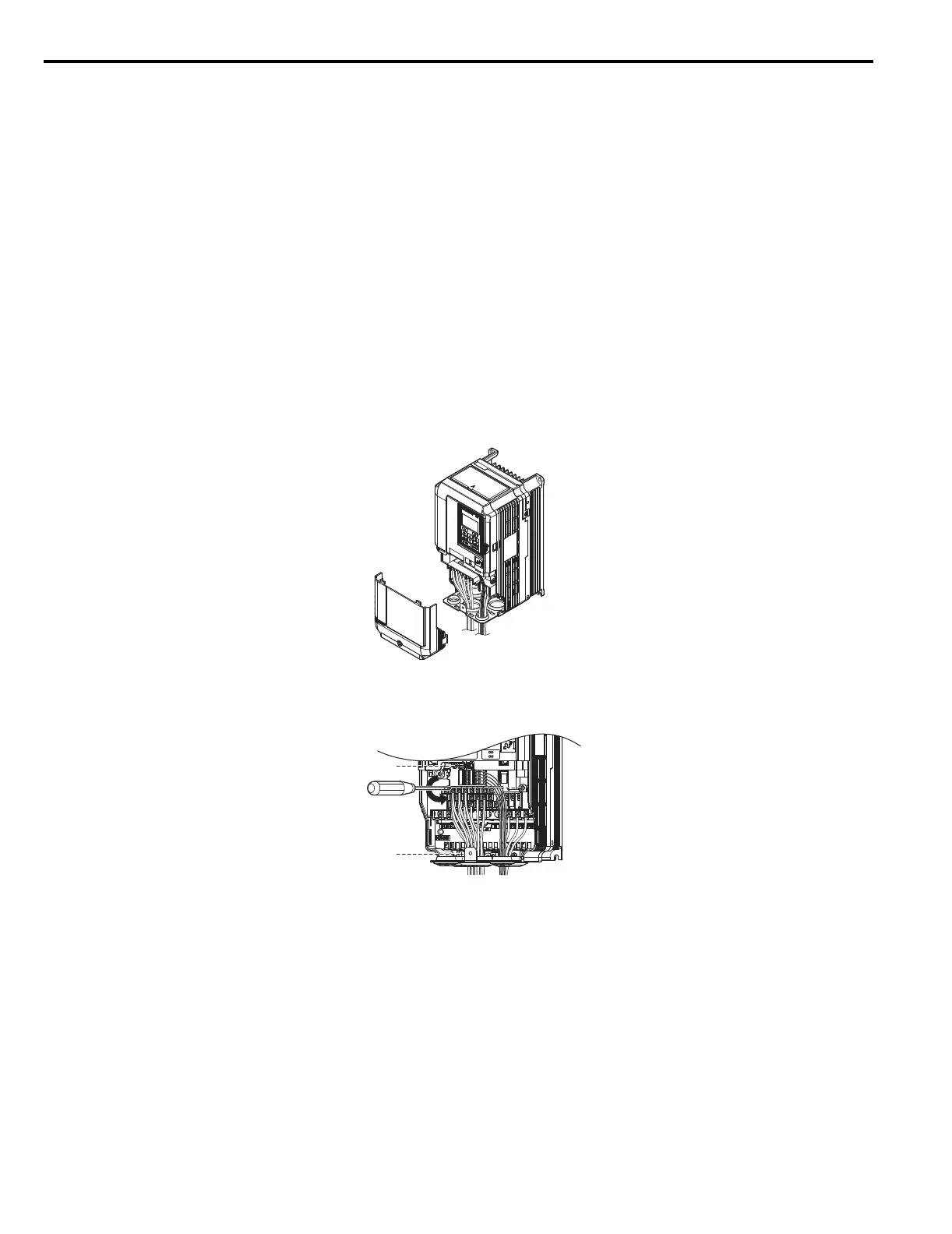

1. Remove the terminal cover. Refer to Terminal Cover on page 29 for details.
Note: The shape of the terminal covers and the numbers of the screws differ depending on the drive models.
Figure 71
Figure 78 Drive Replacement: Removing the Terminal Cover
2. Loosen the screws holding the terminal board in place. Remove the screw securing the bottom cover and remove
the bottom cover from the drive.
Figure 72
Figure 79 Drive Replacement: Removing the Control Terminal Board
YEA_
comm
on
YEA_com
mon
TOEP_C710616_38H_7_0.book 148 ページ ２０１５年１１月１１日 水曜日 午後７時４０分

YASKAWA L1000A Specifications

General

Model	L1000A
Category	Controller
Enclosure Rating	IP20
Input Voltage	200-240V, 380-480V
Control Method	V/f Control, Open Loop Vector Control
Application	Elevators
Voltage Class	200V, 400V
Safety	Safe Torque Off (STO)
Communication	CANopen, Modbus
Output Voltage	0 to Input Voltage
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Current Range	Varies by model (refer to datasheet)
Power Rating	Varies by model (refer to datasheet)
