YASKAWA L1000A - Page 35

3 Electrical Installation
YASKAWA ELECTRIC TOEP C710616 38H YASKAWA AC Drive-L1000A Quick Start Guide 33
Electrical Installation
3
Models CIMR-LU20085 to 20415, 40045 to 40605, and 50032 to 50200
1. Slide the front cover so the hooks on the top connect to the drive.

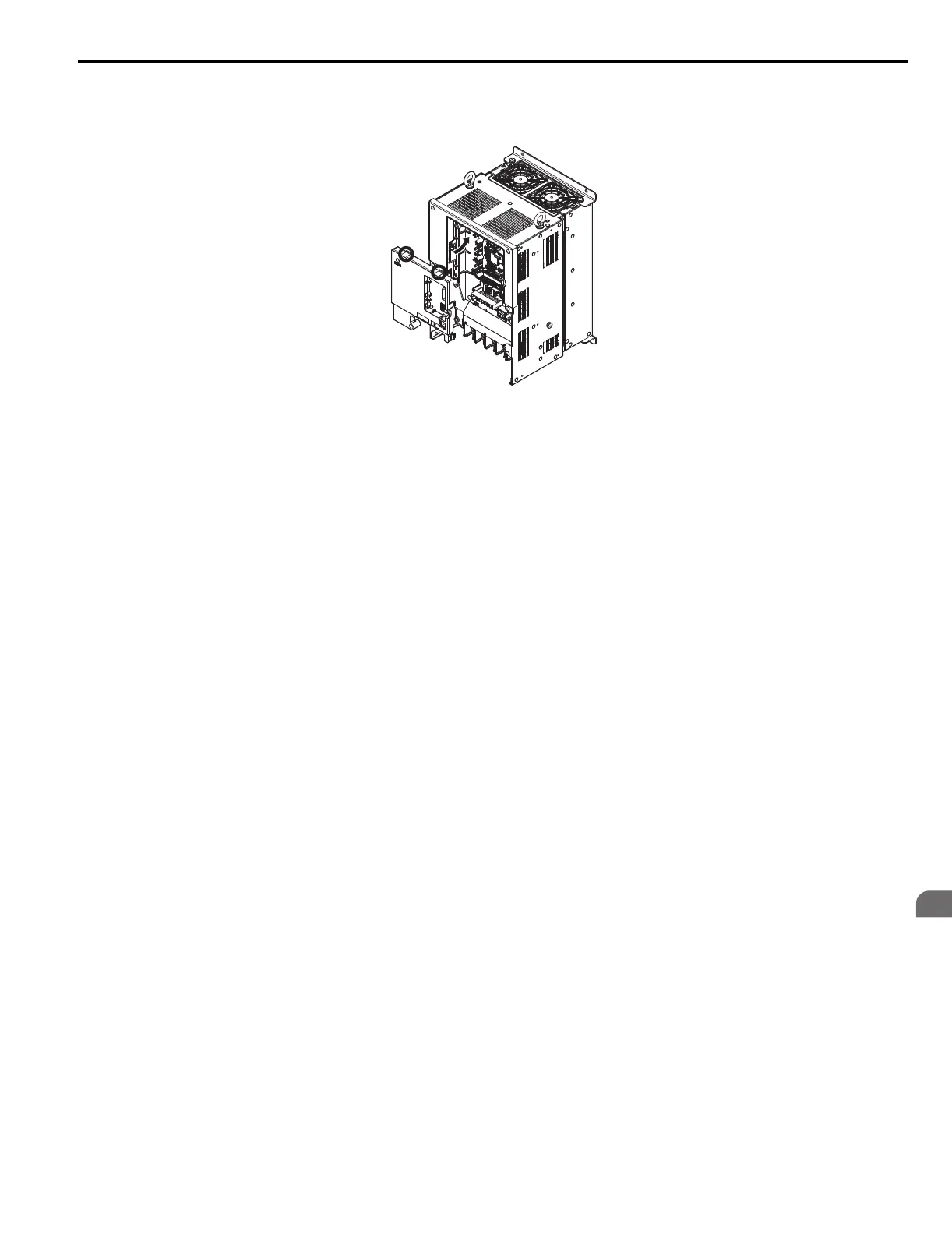

Figure 19
Figure 19 Reattach the Front Cover
(Models CIMR- LU20085 to 20415, 40045 to 40605, and 50032 to 50200)
2. After connecting the hooks to the drive, press firmly on the cover to lock it into place.
