3 Electrical Installation
32 YASKAWA ELECTRIC TOEP C710616 38H YASKAWA AC Drive-L1000A Quick Start Guide
Models CIMR-LU20085 to 20415, 40045 to 40605, and 50032 to 50200
1. Remove the terminal cover and the digital operator.
2. Loosen the installation screw on the front cover.
3. Use a straight-edge screwdriver to loosen the hooks on each side of the cover that hold it in place.

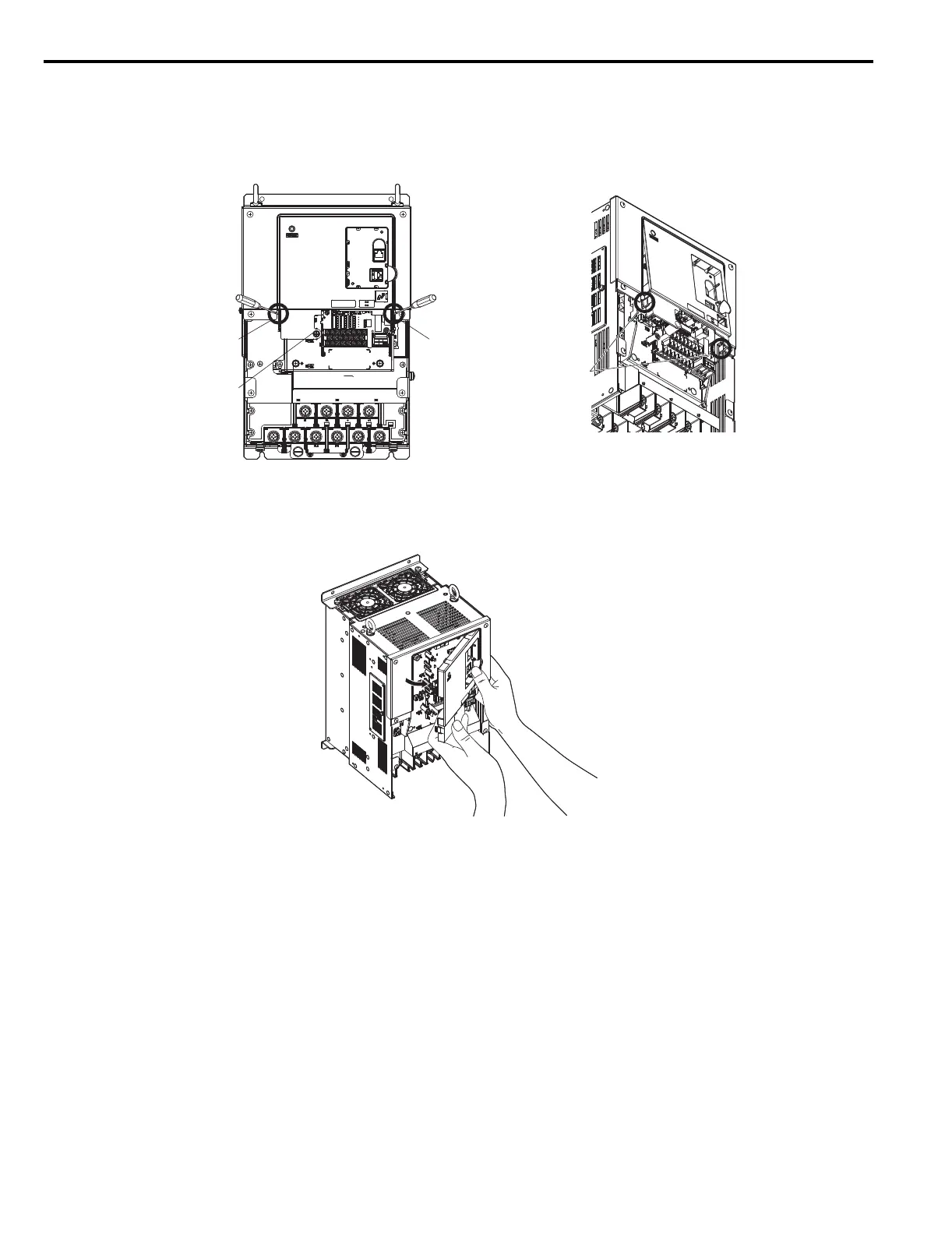

Figure 17
Figure 17 Remove the Front Cover
(Models CIMR-LU20085 to 20415, 40045 to 40605, and 50032 to 50200)
4. Unhook the left side of the front cover then swing the left side towards you as shown in Figure 18 until the cover
comes off.
Figure 18
Figure 18 Remove the Front Cover
(Models CIMR-LU20085 to 20415, 40045 to 40605, and 50032 to 50200)
Reattaching the Front Cover
Models CIMR-LU20008 to 20075, 40005 to 40039, and 50003 to 50027
Reverse the instructions given in Remove the Front Cover (Models CIMR-LU2  0008 to 2  0075, 4  0005 to 4  0039,
and 5
 0003 to 5  0027) on page 31 to reattach the front cover. Pinch inwards on the hooks found on each side of the
front cover while guiding it back into the drive. Make sure it clicks firmly into place.
HookHook
Front cover
installation screw
Free hooks on both
sides of the cover
