3 Electrical Installation
YASKAWA ELECTRIC TOEP C710616 38H YASKAWA AC Drive-L1000A Quick Start Guide 35
Electrical Installation
3
■ Protecting Main Circuit Terminals
Insulation Cap or Sleeves
Use insulation caps or sleeves when wiring the drive with crimp terminals. Take particular care to ensure that the wiring
does not touch nearby terminals or the surrounding case.
Insulation Barrier
Insulation barriers are packaged with drive models CIMR-LU4A0370 through 4A0605 to provide added protection
between terminals. Yaskawa recommends using the provided insulation barriers to ensure proper wiring. Refer to
Figure 20 for instructions on placement of the insulation barriers.

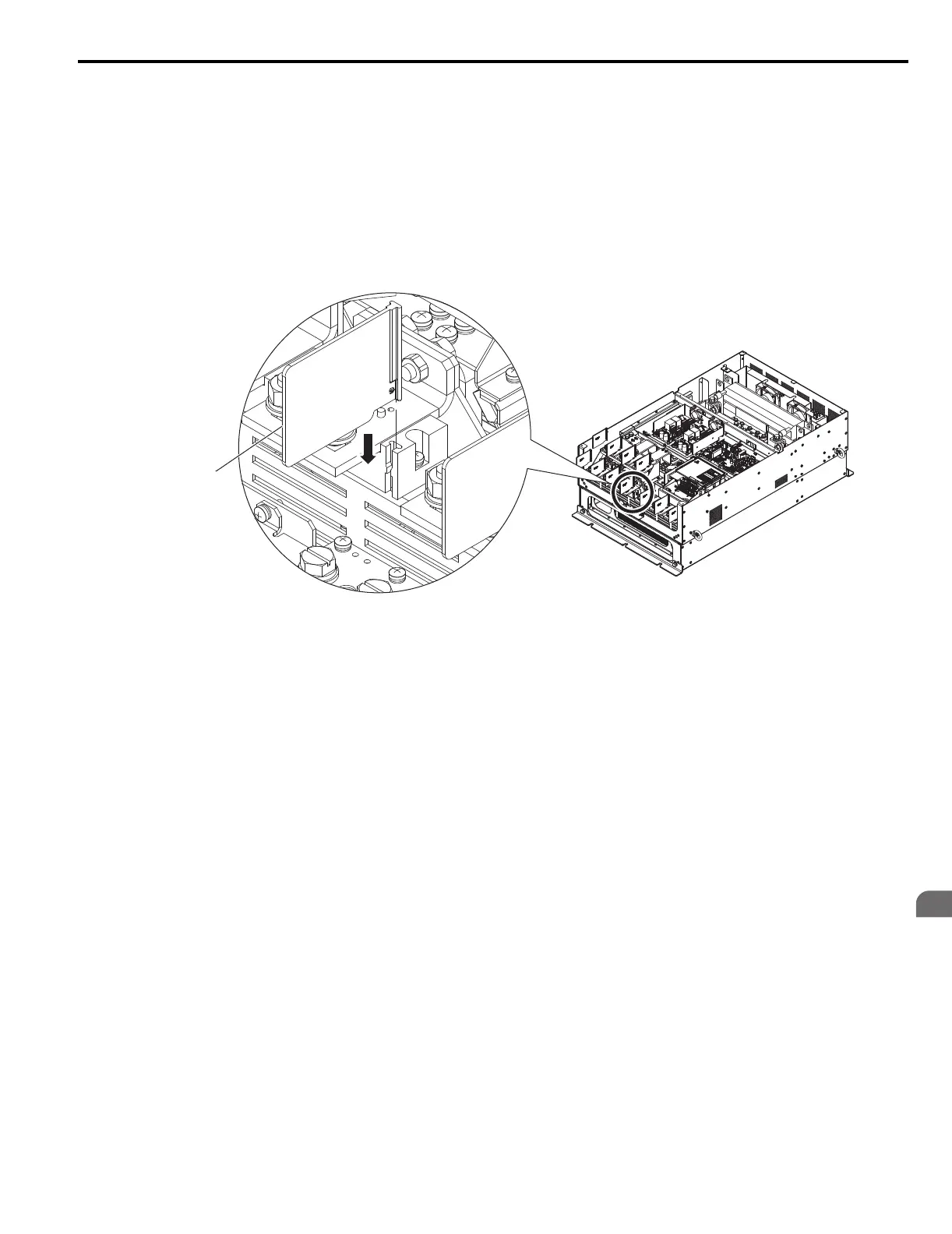

Figure 20
Figure 20 Installing Insulation Barriers
Insulation Barrier
