3 Transportation
3.1 Transporting method
CAUTION!
Damage to persons and damage to property due to external force influences
External forces must not be exerted on the robot or the motors.
• Check that the eyebolts are securely fastened.
• The robot weights approximately 27 kg. Use load carrying devices strong enough to
withstand the weight.
• The transport safety devices support the robot; therefore, use them exclusively for the
transport of the robot.
• Before transport, be sure to mount the shipping bolts and brackets to the robot.
3.1.1 Using a crane
Adequate load handling devices must be used to transport the robot. Make sure that the
robot is lifted as shown in the diagram "Transport by crane".

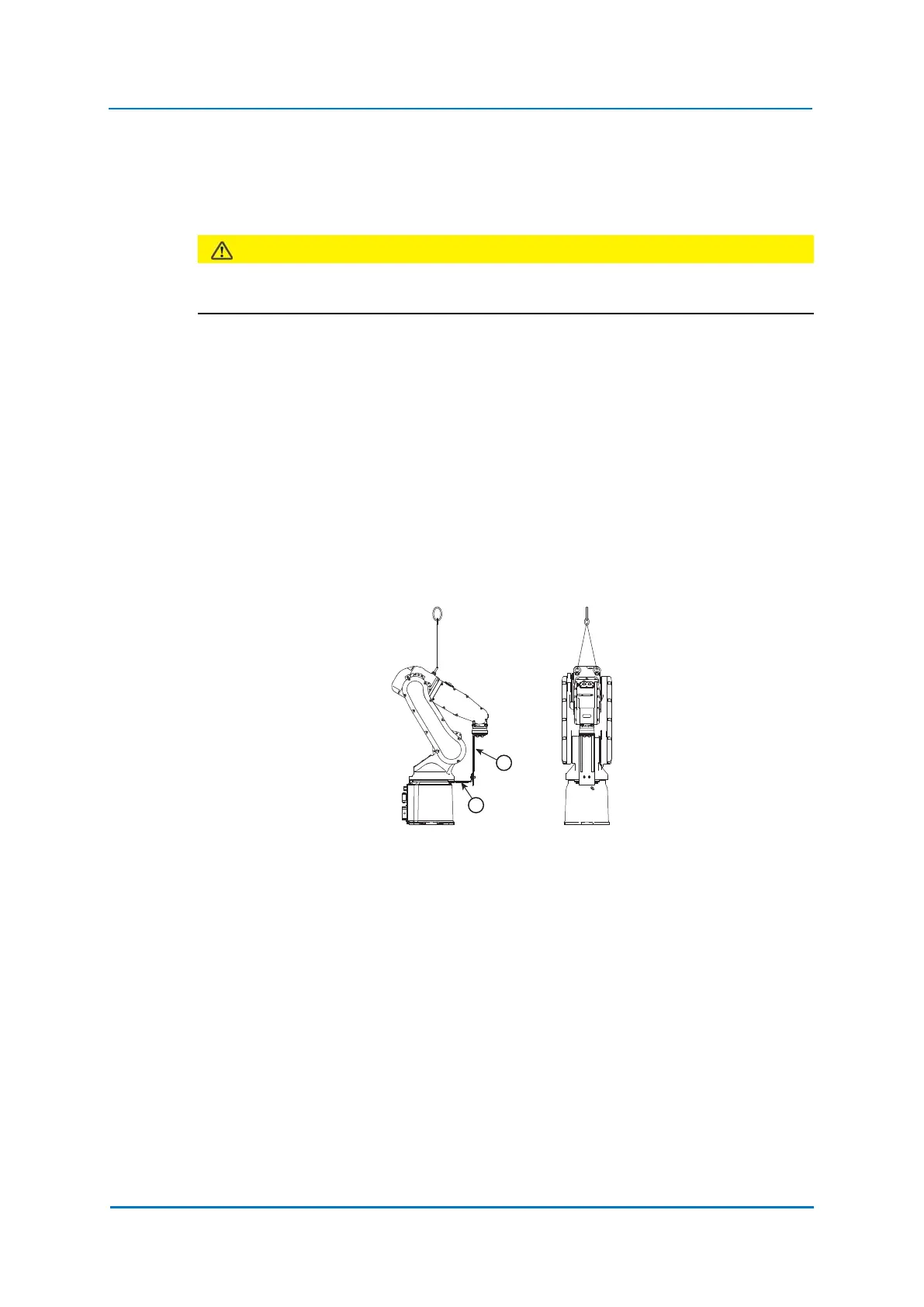

Fig. 3-1: Transport with crane
B
A
