4.4 LED Indicator, Operation Switch, etc.
4-5
HW0482738
HW0482738
4.4 LED Indicator, Operation Switch, etc.

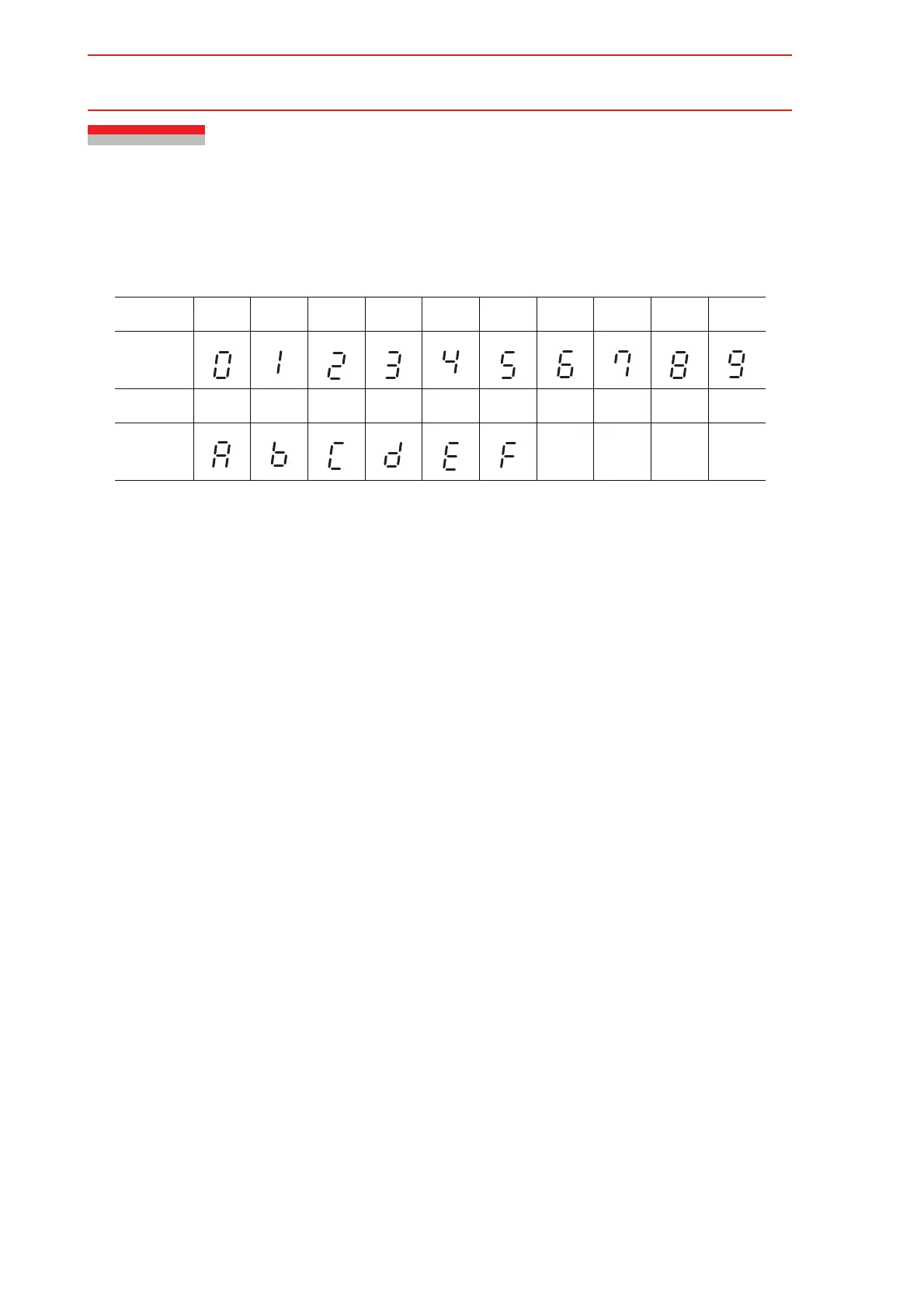

1. 7-segment LED Indicator
Indicates the NXC100’s internal status in 4 digits.
Mainly used to indicate an error code.
2. Power Switch
Turns ON/OFF the input power supply.
3. Fuse
Device code F1, F2, F1 to F4
Main fuse for power supply protection
Location: 2 places on the NXC100 front face
Parts No. 314010, 250 V, 10 A, 6 mm diameter x 32 mm in length,
Time Lag type
Manufactured by Littelfuse Inc.
F1, F2: Fuse for Robot IO protection
F3, F4: Fuse for Host IO protection
Location: Inside the Fuse box
Parts No. 2173.15, 250 V, 3.15 A, 5 mm diameter x 20 mm in length,
Fast-Acting type,
Manufactured by Littelfuse Inc.
Fuse for Brake Protection
Location: NXC100 rear face
Parts No. SMP50, 5 A, Time Lag type
Manufactured by Daito Communication Apparatus Co., Ltd
Fuse for Fan (FUFAN1, FUFAN2)
Location: NXC100 front face
Parts No. 213001, 1 A, 5 mm diameter x 20 mm in length, Time Lag type
Manufactured by Littelfuse Inc.
0123456789
Display
ABCDEF
Display
