YASKAWA Motoman NXC100 - LED Indicator; Battery

4.4 LED Indicator, Operation Switch, etc.
4-6
HW0482738
HW0482738
4. LED Indicator
Device code: SOURCE
LED Indicator (SOURCE) indicates the ON/OFF condition of the NXC100 power sup-
ply.
Device code: BAT
LED indicator (BAT) indicates with detecting the decline of the CPU memory backup
battery voltage.
5. Battery
Battery is for CPU memory backup.
Location: Inside the Fuse box
LITHIUM battery, ER6VC3, 3.6 V, 2000 mAh
Manufactured by Toshiba Battery Co., Ltd

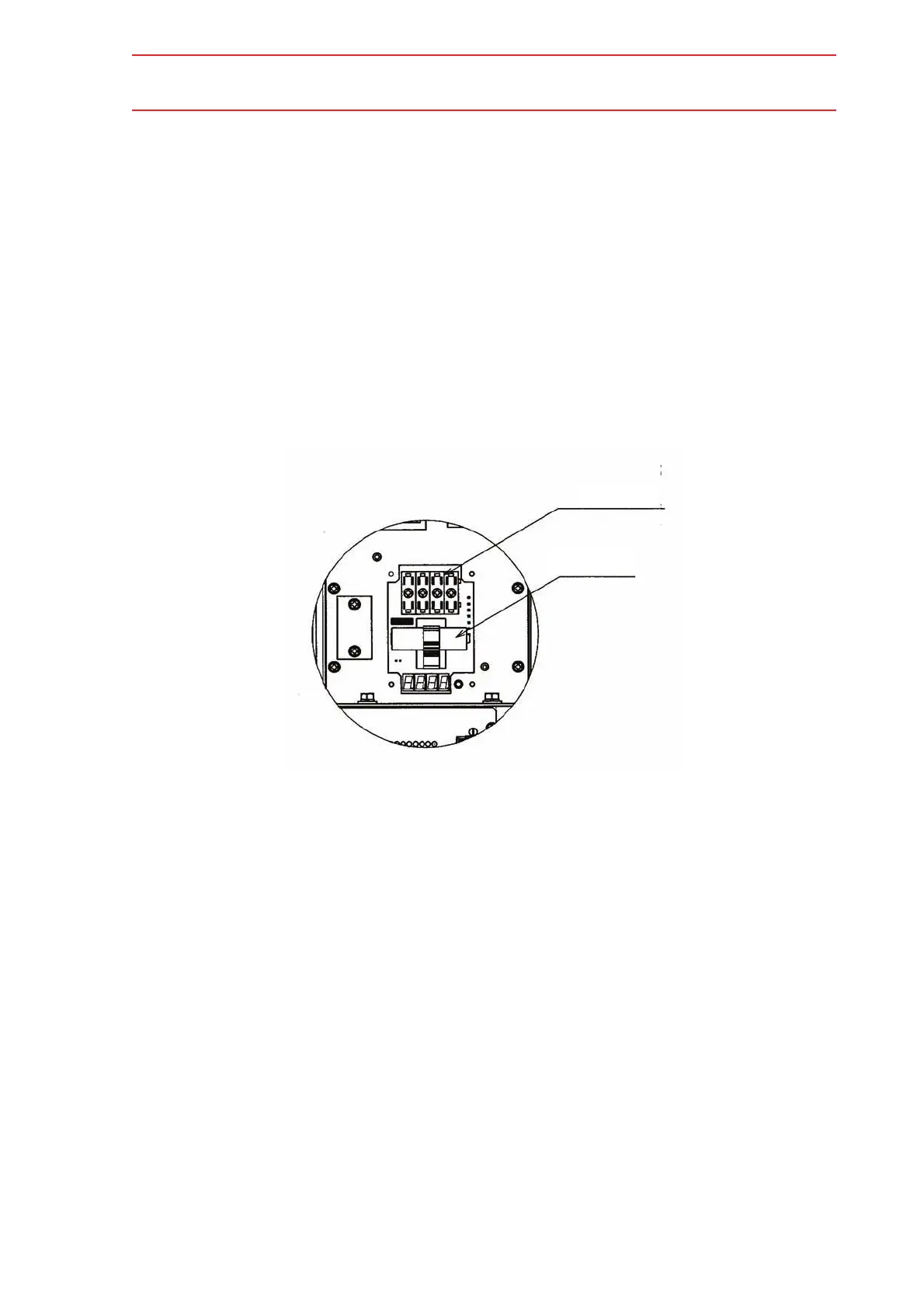

Fig. 2 Diagram of Battery Cover Inside
I/O fuse
Battery
29/48
