YASKAWA MOTOMAN Series User Manual

1 Outline
1.1 System Configuration
1-1
HW1483854
HW1483854
1Outline
This manual describes the CC-Link IE Field board Q81BD-J71GF11-T2
(hereafter J71GF11-T2) (manufactured by Mitsubishi Electric Corporation)
to be used in the YRC1000. The application of the J71GF11-T2 board
enables the exchange of general-purpose I/O data and register data
between a CC-Link IE Field device and the YRC1000. The J71GF11-T2
board is designed only as a local station and cannot be used as a master
station.
1.1 System Configuration

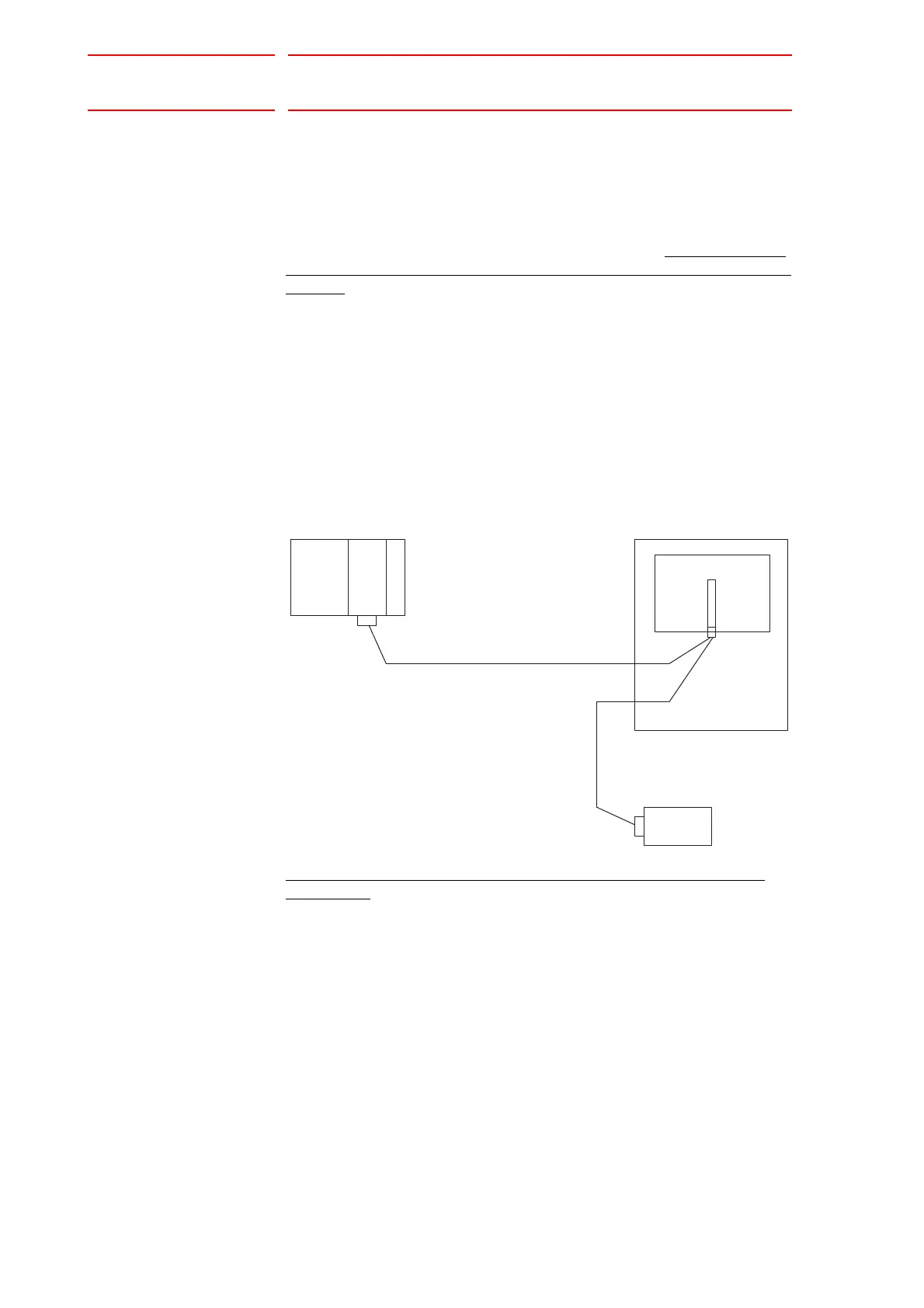

The following diagram shows an example of the configuration of a system
with an J71GF11-T2 board.
CC-Link IE Field is a registered trademark of the CLPA (CC-Link Partner
Association).
CC-Link IE Field
Master Station
External PLC (Sequencer)
CC-Link IE Field
Remote I/O Station
I/O Unit
CC-Link IE Field Cable
YRC1000
CC-Link IE Field
Local Station
J71GF11-T2
10/53

YASKAWA MOTOMAN Series Specifications

General

Programming Method	Teach pendant
Communication Interface	Ethernet, DeviceNet, Profibus
Power Supply	200-480V AC, 50/60Hz
Operating Temperature	0°C to +45°C
Protection Class	IP20
I/O Capacity	Varies depending on the model (typically hundreds of inputs and outputs)
Storage Temperature	-10°C to +60°C
