6.2 Motion Command Details
6.2.11 Change Filter Time Constant (SCC)
6-59
Motion Commands
[ b ] Monitoring Parameters

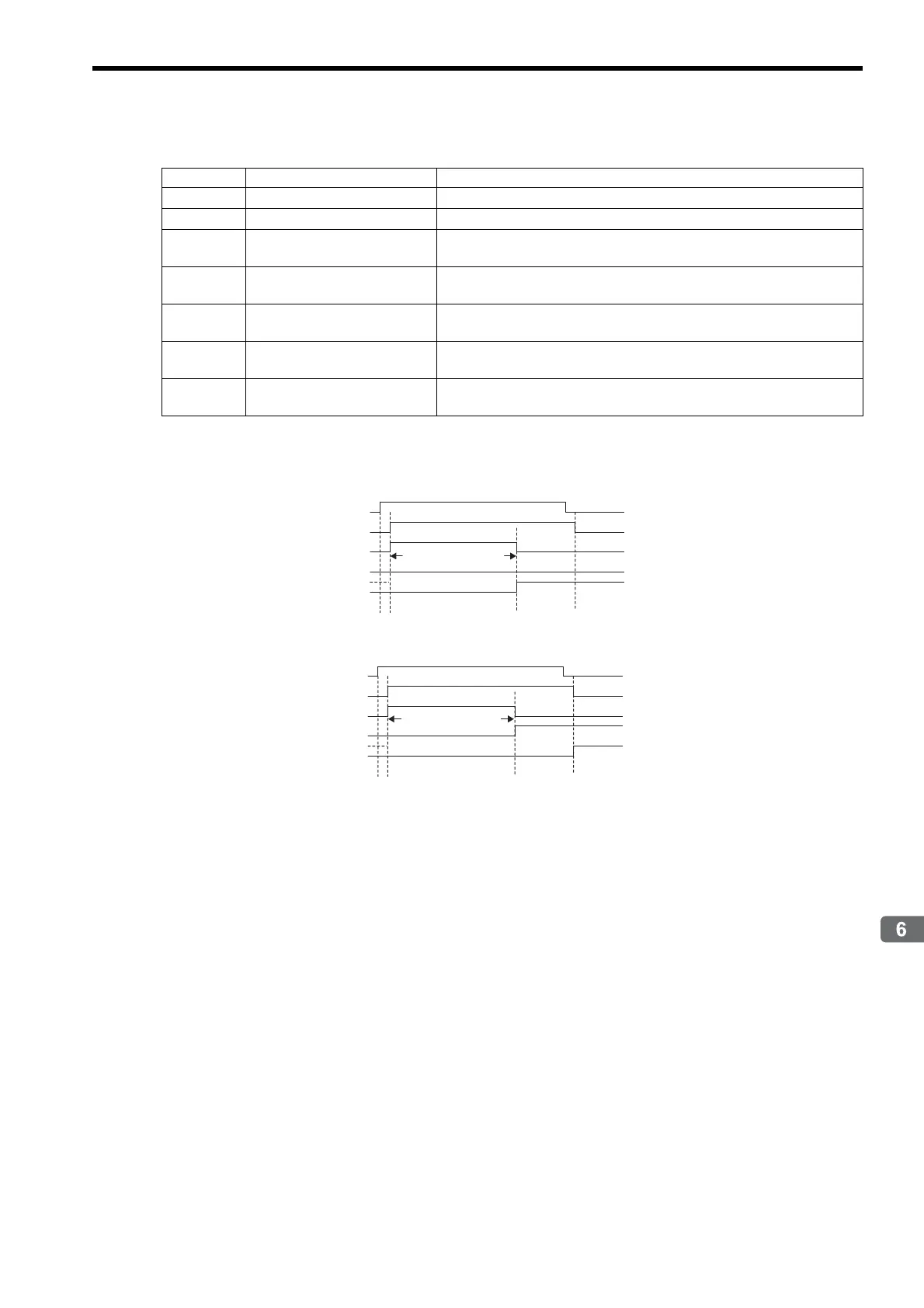

( 4 ) Timing Charts
[ a ] Normal End
[ b ] Error End
Parameter Name Monitor Contents
IL02 Warning
Stores the most current warning.
IL04 Alarm
Stores the most current alarm.
IW08
Motion Command
Response Code
Indicates the motion command that is being executed.
The response code is 12 during SCC command execution.
IW09
Bit 0
Command Execution Flag
Turns ON during SCC command execution and turns OFF when execution has
been completed.
IW09
Bit 1
Command Hold Completed
Always OFF for SCC command.
IW09
Bit 3
Command Error Completed
Status
Turns ON if an error occurs during SCC command execution.
Turns OFF when another command is executed.
IW09
Bit 8
Command Execution
Completed
Turns ON when SCC command execution has been completed.
OW08 = 12 (SCC)
IW08 = 12 (SCC)
IW09, bit 0 (BUSY)
IW09, bit 8 (COMPLETE)
IW09, bit 3 (FAIL)
Undefined length
of time
OW08 = 12 (SCC)
IW08 = 12 (SCC)
IW09, bit 0 (BUSY)
IW09, bit 8 (COMPLETE)
IW09, bit 3 (FAIL)
Undefined length
of time
