3.4 Self-configuration and Definition Files
3.4.3 SVB Definition
3-20
3.4.3 SVB Definition
The SVB Definition file defines the motion parameters (motion fixed parameters, motion setting parameters, and
motion monitoring parameters) to control motion axes such as the SERVOPACK, inverter, and stepper.
 Refer to Chapter 4 Motion Parameters for details on motion parameters.
( 1 ) Opening the SVB Definition Window
Open the SVB Definition Window by the following procedure.

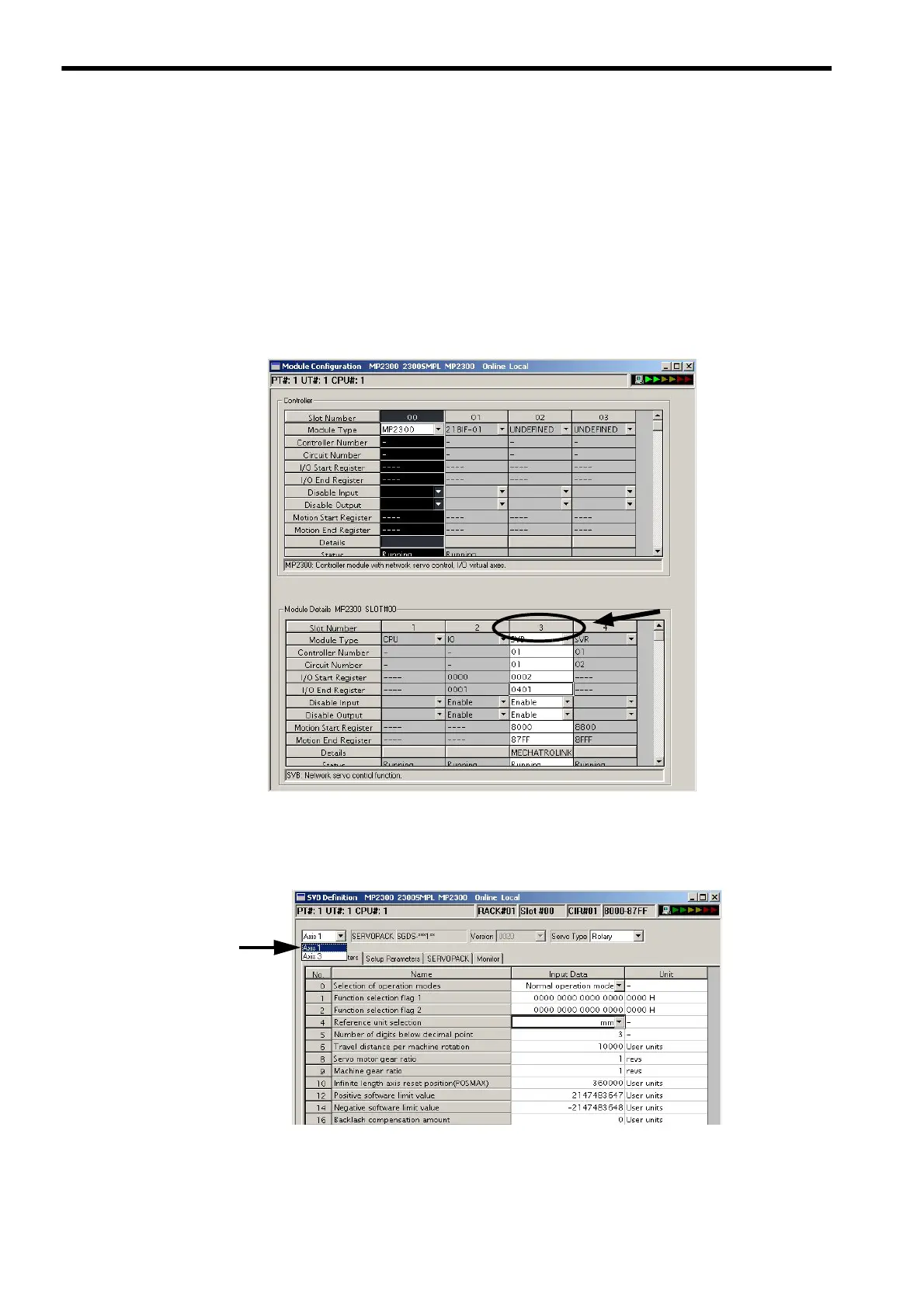

1. Double-click the slot number cell of the SVB Module in the Module Details field in the Module Config-
uration Window (refer to 3.4.1 ( 1 ) How to Open the Module Configuration Window).
The Create New Confirmation Dialog Box will open. Click OK to display the Fixed Parameters Tab of the SVB
Definition Window.
2. Select the axis to be set or monitored from the Axis pull-down list.
 Axis corresponds to ST# (station number) in the Link Assignment Tab of the MECHATROLINK Transmission
Definition Window.
