3.4 Self-configuration and Definition Files
3.4.4 Current Value and Setting Data in SVB
3-30
( 4 ) SERVOPACK Parameters Saved in the MPE720

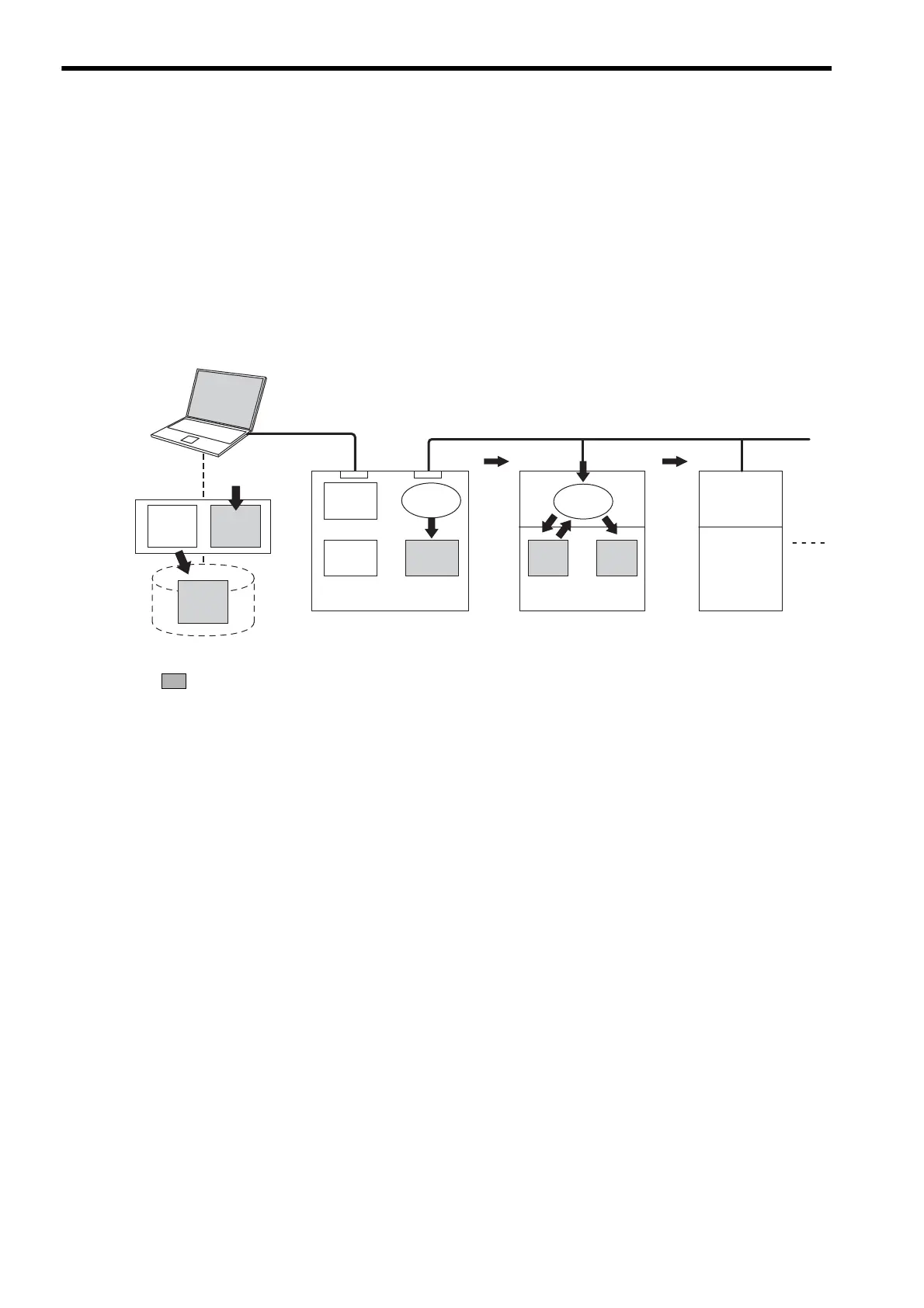

The data flow for SERVOPACK parameters is as follows when File - Save is selected from the SERVOPACK Tab
Page:
• The MPE720 writes all the parameters in Input Data currently displayed on SERVOPACK Tab Page of the rele-
vant axis to the followings.
• HDD (hard disk) of the personal computer
• SDRAM of Machine Controller
• RAM and EEPROM of the SERVOPACK
• After having completed writing the parameters, the MPE720 updates the values in Current on the SERVOPACK
Tab Page with the SERVOPACK parameter values stored in the RAM.
indicates data has been written (same as below).
