3.4 Self-configuration and Definition Files
3.4.4 Current Value and Setting Data in SVB
3-34

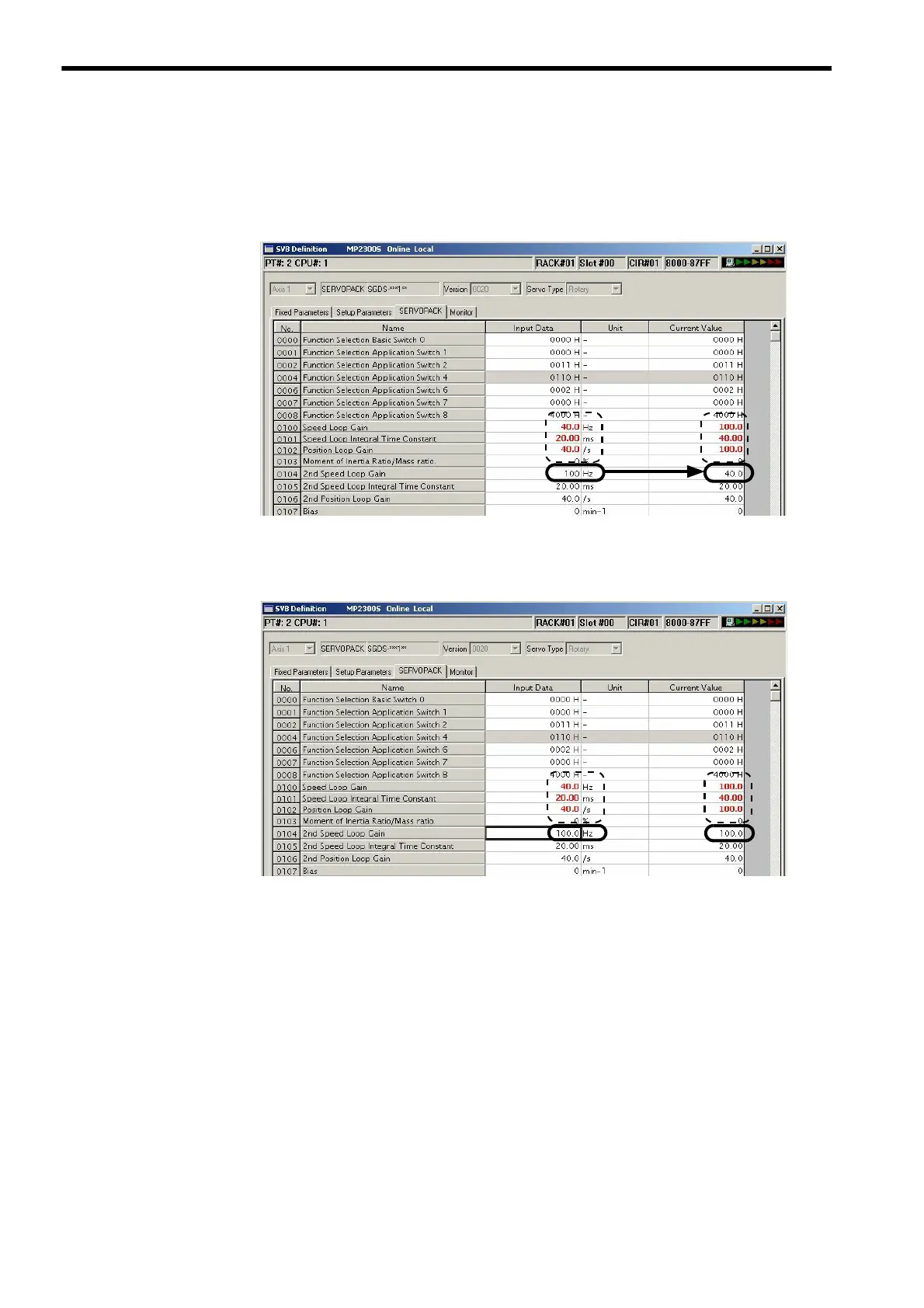

The following figure shows a display example after having changed the value (2nd Speed Loop Gain) in Input Data on
the SERVOPACK Tab. After having pressed the ENTER Key, the values of Speed Loop Gain, Speed Loop Integral
Time Constant, and Position Loop Gain (boxed in dotted line) in Input Data remain different from the values in Cur-
rent since the parameters other than the one that has been changed are not written.
Before pressing
ENTER Key
After having
pressed ENTER
Key
