Transportation
3 - 15
3.1.1 Using a crane
Adequate load handling devices must be used to transport the robot. Make sure that the
robot is lifted as shown in the diagram "Transport by crane".

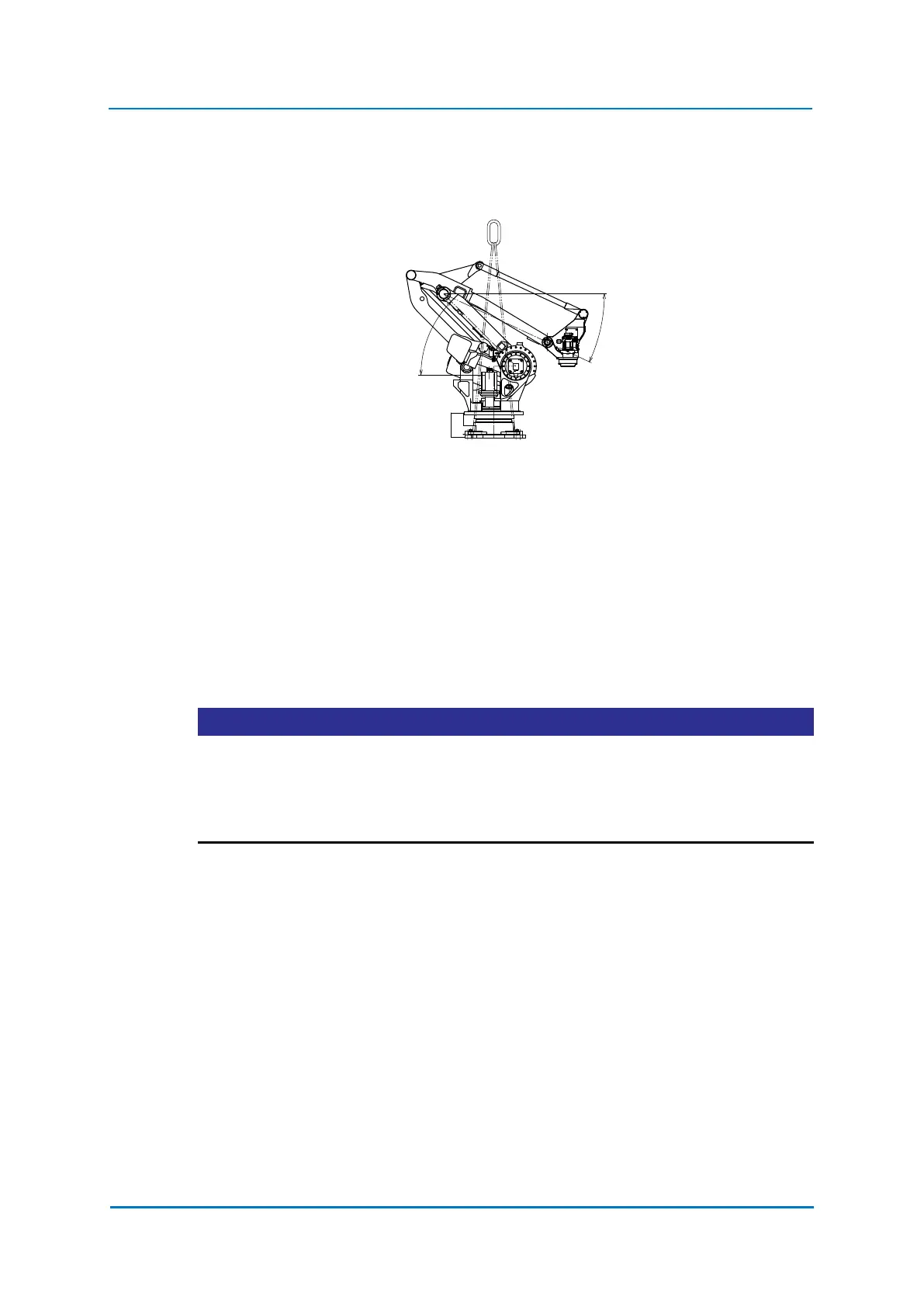

Fig. 3-1: Transport with crane
3.1.2 Using a forklift
If the robot is transported using a forklift, it should be fixed on a pallet with transport securing
devices and shipping bolts as shown in the figure below "Transport using a forklift". Make
sure that the forklift and the transportation route have sufficient bearing capacity.
Always take due care when transporting the robot.
3.2 Shipping brackets and bolts
NOTICE
Before turning ON the power, check to be sure that the shipping bolts and brackets are
removed.
After removing the transport securing devices and the shipping bolts, keep them at a safe
place. The transport securing devices and shipping bolts will be required again if the system
is transported again.
The robot is equipped with transport securing devices and shipping bolts to reduce external
forces to a minimum during transport.
