YASKAWA P1000 Series User Manual

unit: mm (inch)
12-Mounting Holes for M6 Screw
Eye Bolts
with M8 Screw
163.3 (6.43)
3
(0.12)
292 (11.50)
258 (10.16)
150 (5.91) 170 (6.69) 150 (5.91)
330.2 (13.00)
390 (15.35)
473.2 (18.63)
542 (21.34)
101 (3.98)
25.5 (1.00)
25.5 (1.00)
45.1 (1.78)
10.5 (0.41)
23.7 (0.93)
124 (4.88) 124 (4.88)
176.75 (6.96) 176.75 (6.96)

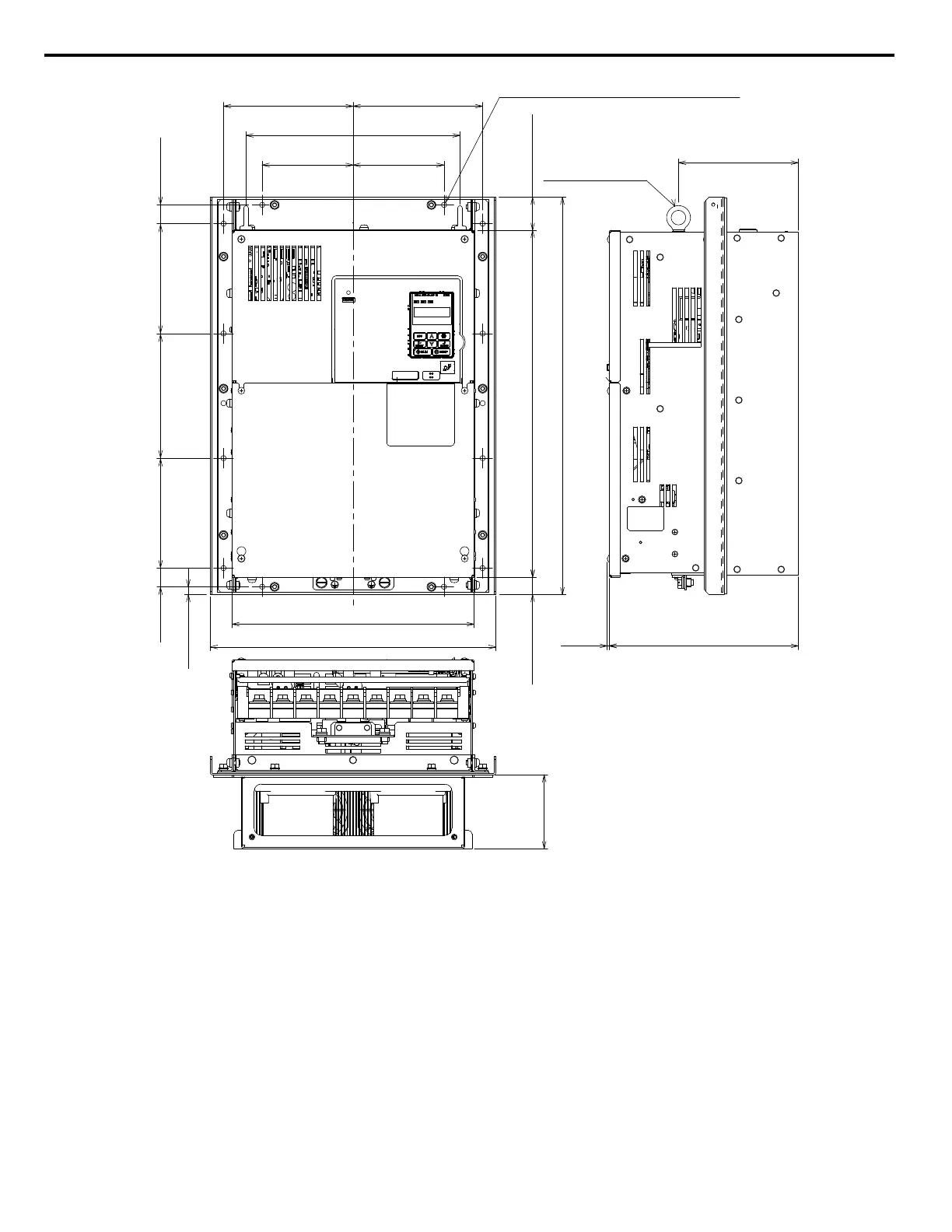

Figure 24 Flange Type Models 4T0088U and 4T0103U Mounting Dimensions
8 Specifications
48
YASKAWA TOEP YAIP1U 04A YASKAWA AC Drive – P1000 6-Phase/12-Pulse Input Installation Manual

YASKAWA P1000 Series Specifications

General

Series	P1000
Voltage Classes	200 V, 400 V, 600 V
Frequency	50/60 Hz
Humidity	95% RH or less (non-condensing)
Type	AC Drive
Control Method	V/f Control
Ambient Temperature	-10 to +50°C (14 to 122°F)
Communication Options	Modbus RTU
Protection Features	Overvoltage, Undervoltage
Overload Capacity	150% for 60 seconds
Storage Temperature	-20°C to +60°C (-4 to 140°F)
Cooling Method	Fan cooled
Horsepower Range	0.5 to 500 HP
