YASKAWA P1000 Series

AIR
AIR
HORIZONTAL MTG DIM
VERTICAL MTG DIM
11.14
[283]
0.11
[3]
0.09
[2.3]
5.22
[132.6]
21.65
[550]
3.54
[90]
9.59
[243.7]
2.36
[60]
9.31
[236.4]
FRONT VIEW
(4)-MOUNTING HOLES
0.59
[15.1]
7.75
[196.8]
4.33
[110]
6.81
[173.1]
1.26
[32]
10.24
[260]
0.3
[7.5]
0.3
[7.5]
12.76
[324]
0.31
[7.8]
0.31
[7.8]
21.06
[535]
OPTIONAL CAPACITOR COVER
WHEN USING AN EXTERNAL MOUNT HEATSINK, UL
COMPLIANCE REQUIRES COVERING EXPOSED
CAPACITORS IN THE MAIN CIRCUIT TO PREVENT INJURY.
Unit: in [mm]

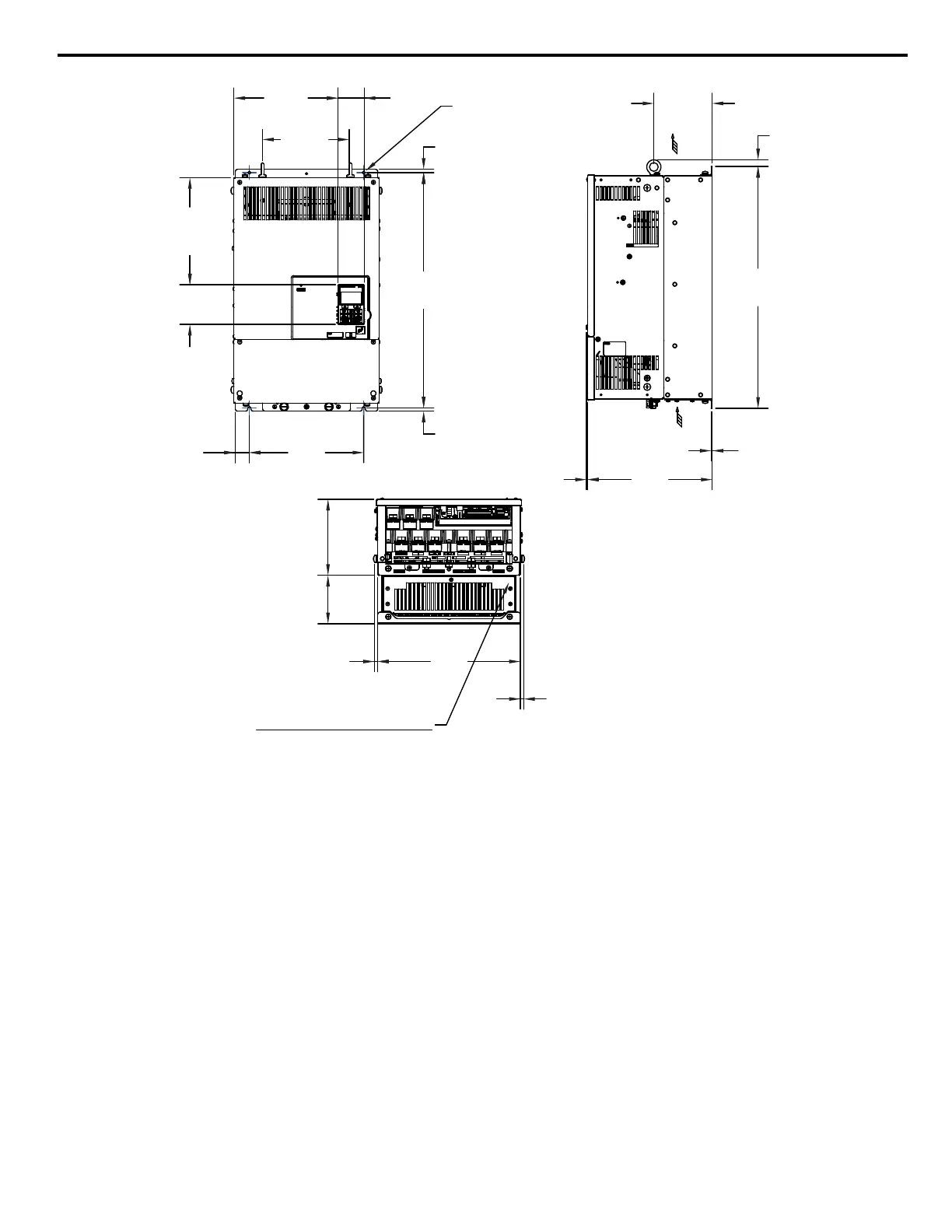

Figure 33 Non-Flange Type Models 4T0139A and 4T0165A Mounting Dimensions
