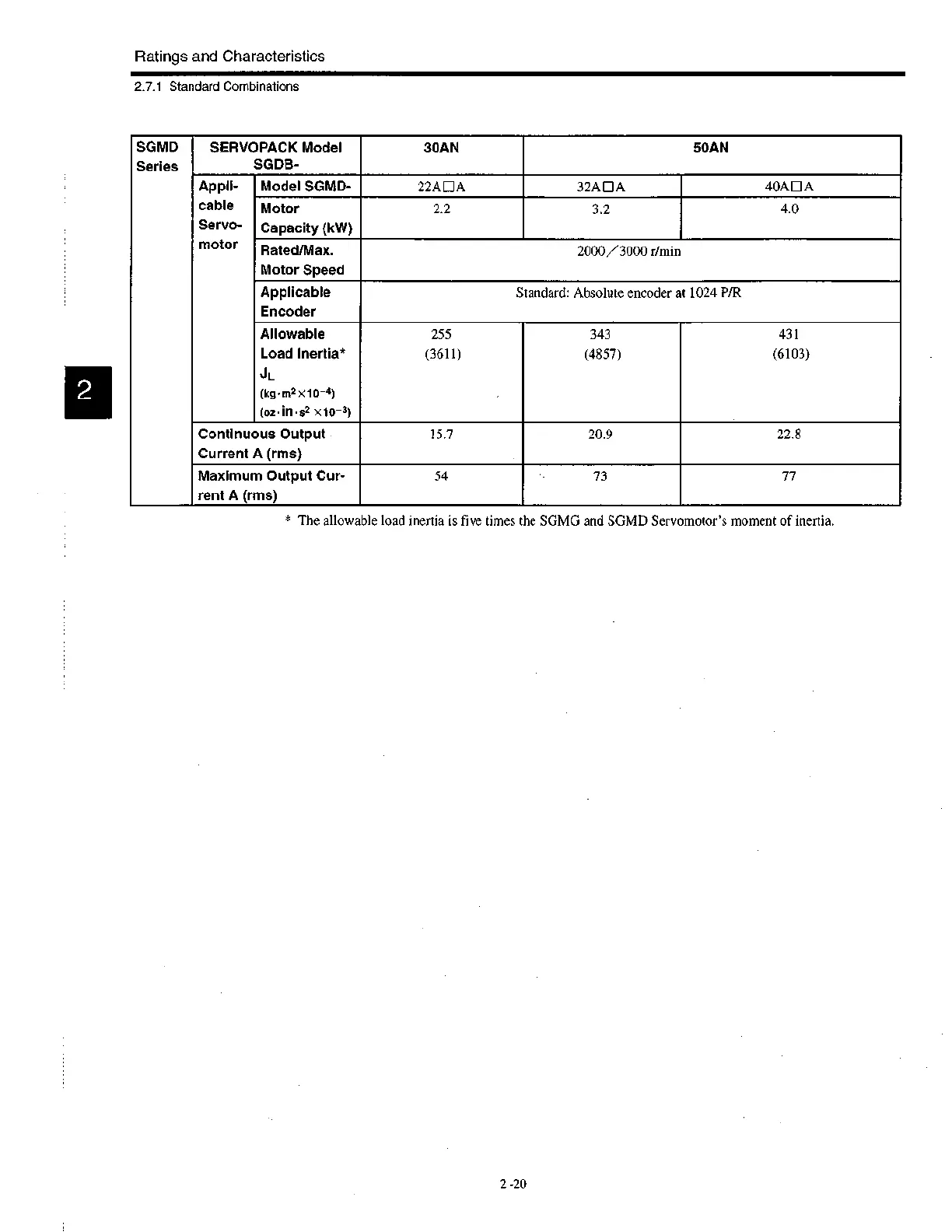

Ratings and Characteristics
SGMD
Series
SERVOPACK Model
SGDB-
30AN 50AN
Appli-
cable
Servo-
motor
Model SGMD-
22A0A 32ADA
40ADA
Motor
Capacity (kW)
2.2
3.2
4.0
Rated/Max.
Motor Speed
2000/3000 r/min
Applicable
Encoder
Standard: Absolute encoder at 1024 P/R
Allowable
Load Inertia*
JI_
(kg• m2 x10-4)
(oz • in•s2 x10-3)
255
(3611)
343
(4857)
431
(6103)
Continuous Output
Current A (rms)
15.7 20.9
22.8
Maximum Output Cur-
rent A (rms)
54
73 77
2.7.1 Standard Combinations
* The allowable load inertia is five times he SGMG and SGMD Servomotor's moment of inertia.
