5.3 Magnetic Contactor for Winding Selection
5-11
Peripheral Devices
5
5.3.4 Installation Orientation

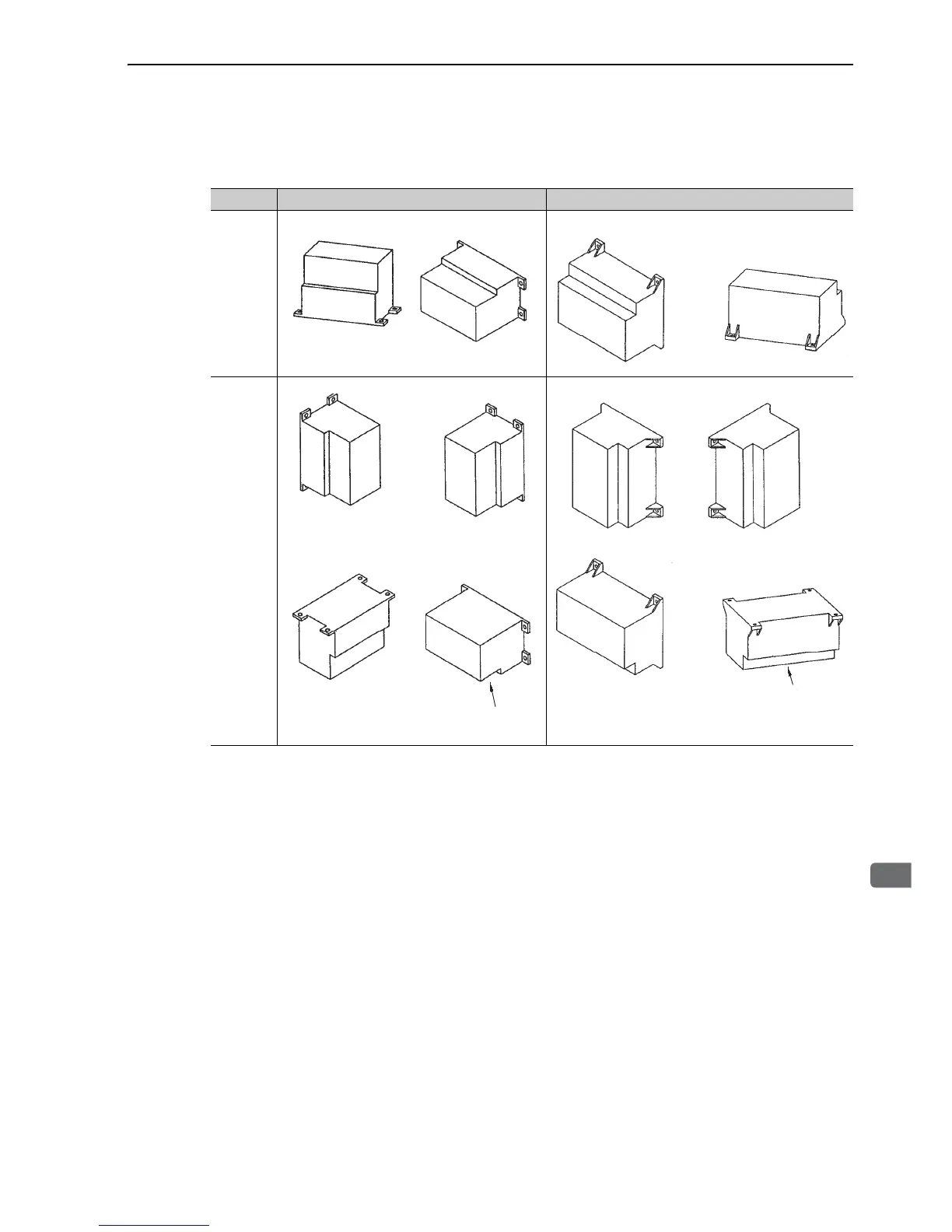

Use the following method to install a magnetic contactor for winding selection.
Mounting Model: HV-75AP4, HV-75AP4/UL Model: HV-150AP4, HV-150AP4/UL
Possible
Not
possible
Termin
al
Cover
Terminal
Cover
Terminal
Cover
Terminal Cover
Terminal
Cover
Terminal
Cover
Terminal
Cover
Terminal
Cover
Terminal
Cover
Terminal
Cover
Terminal Cover
Terminal
Cover
