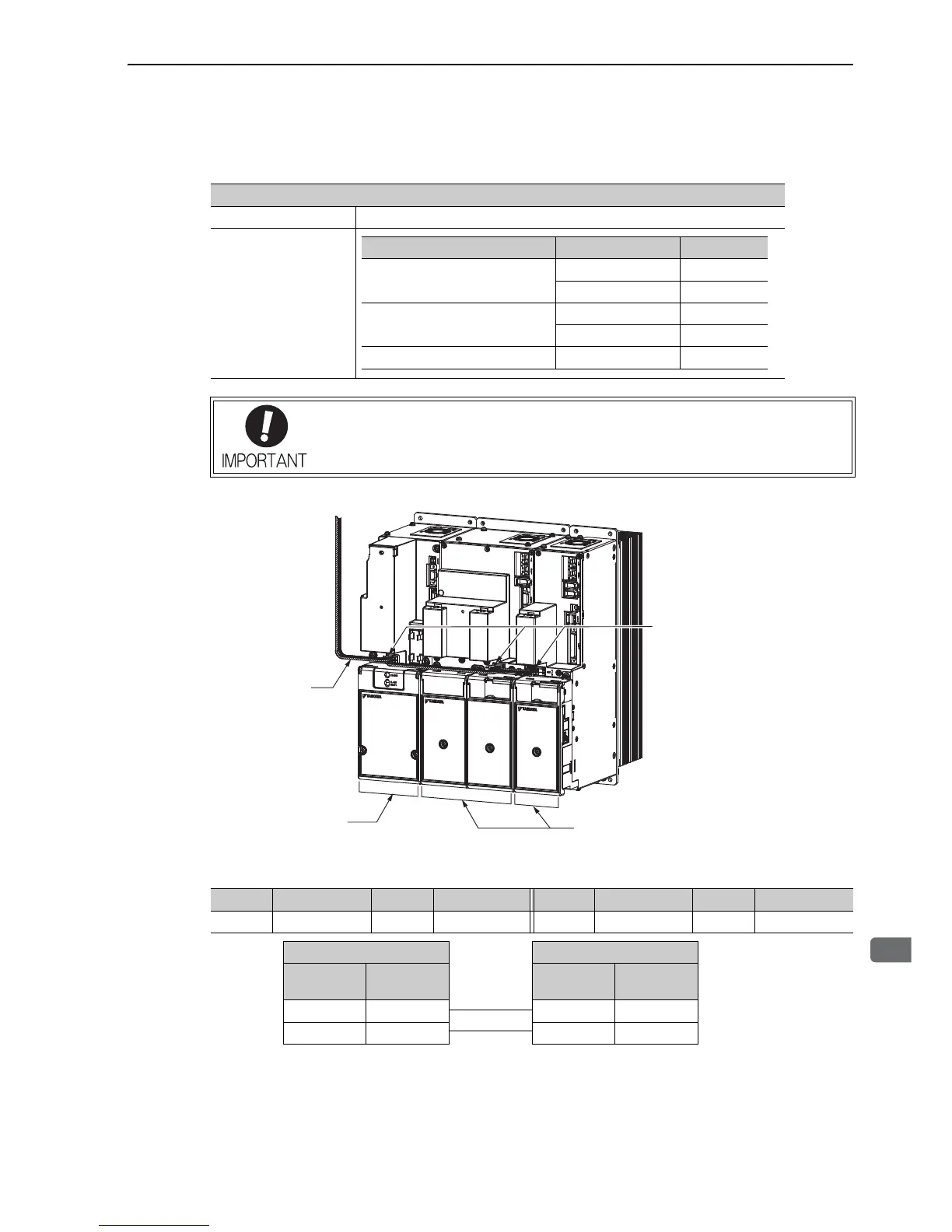

YASKAWA UAK series User Manual

7.2 Σ-V-SD Driver
7-25
Wiring
7
7.2.2 Control Circuit Power Supply
(1) Specifications
(2) Connections
Specifications
Voltage 24 VDC ± 15%
Current
Device Model Amperes
Power regeneration converter
CACP-JU45A3B 1.5 A
Others 1 A
SERVOPACK for one axis
CACP-JU196ACA 2 A
Others 1.5 A
SERVOPACK for two axes All models 1.5 A
• The allowable current for the control power supply is 10 A. Perform wiring so that the
total current when combined with the Σ-V-SD driver is 10 A or less.
• Refer to 2.1.3 Power Regeneration Converter, SERVOPACK, and Motor for the max-
imum number of connected drives.
Pin No. Signal Name I/O Function Pin No. Signal Name I/O Function
A 24 VDC I/O +24 VDC B 0 V I/O 0 V
CN7A/B CN7A/B
Pin No.
Signal
Name
Pin No.
Signal
Name
A24 VDC A24 VDC
B0 V
B0 V
Power
regeneration
converter
SERVOPACK
Control
power
supply
Control
power
cable
Control Power Supply Cable Wiring
CN7A/B
